1A 1B 1C
14A 14B 14C
8A 8B 8C
STEP 3
STEP 4

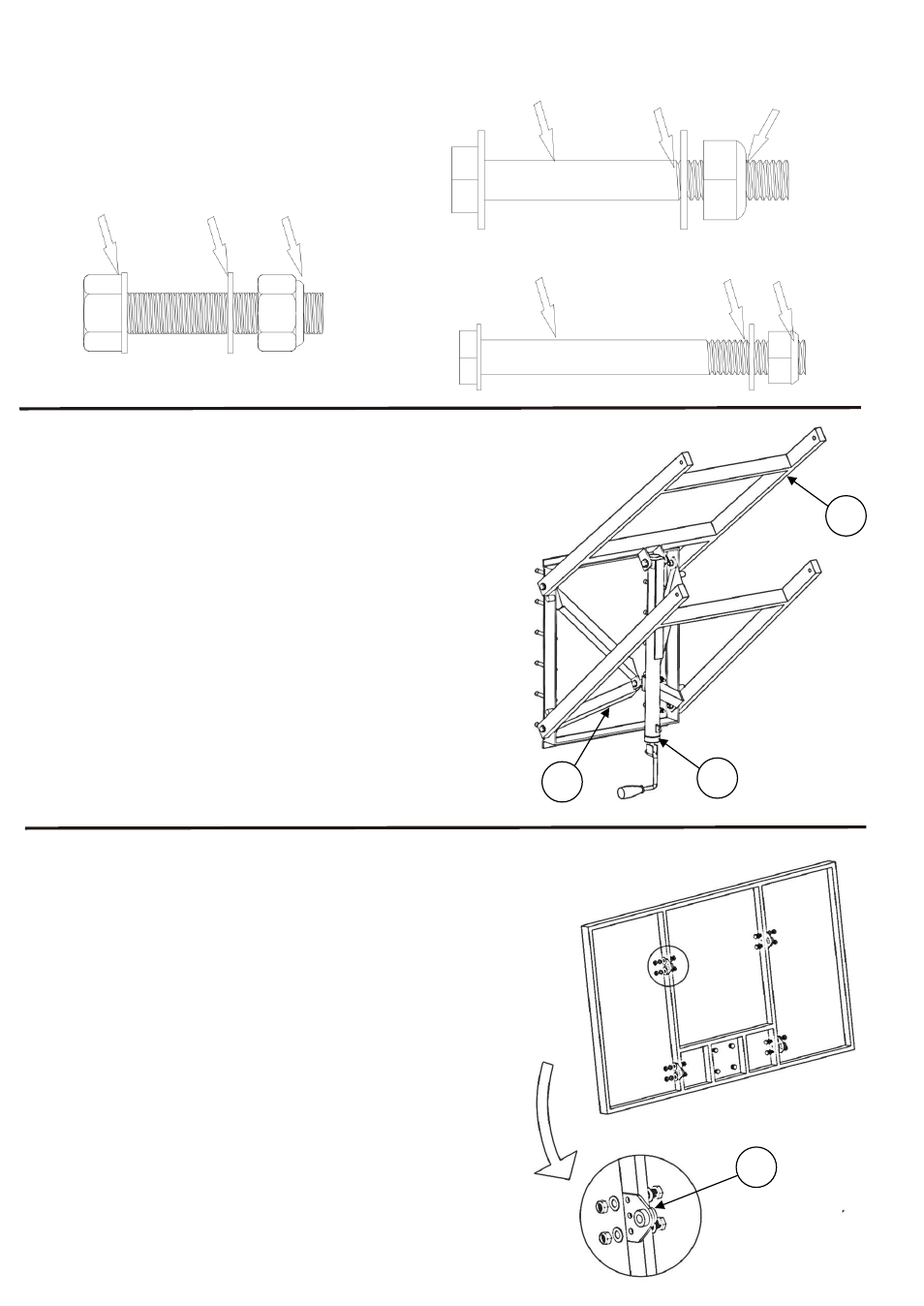

A: Attach the top of the actuator (6) to the upper mounting bracket
(4), using M14x100mm Bolt (14A), a flat washer (14B) and locknut
(14C). (Do not over tighten)
B: Attach the bottom of the actuator (6) to the actuator arms, using
M12x120mm Bolt (8A), a flat washer (8B) and locknut (8C).
Lengthen or shorten the actuator, as needed. (Do not over tighten).
A: Attach the four board mounting brackets (7), using the bolt (1A), a
flat washer (1B) and locknut (1C) as shown.
Required For This Step:
Rev: A Page 3 of 5
6
4
3
7
