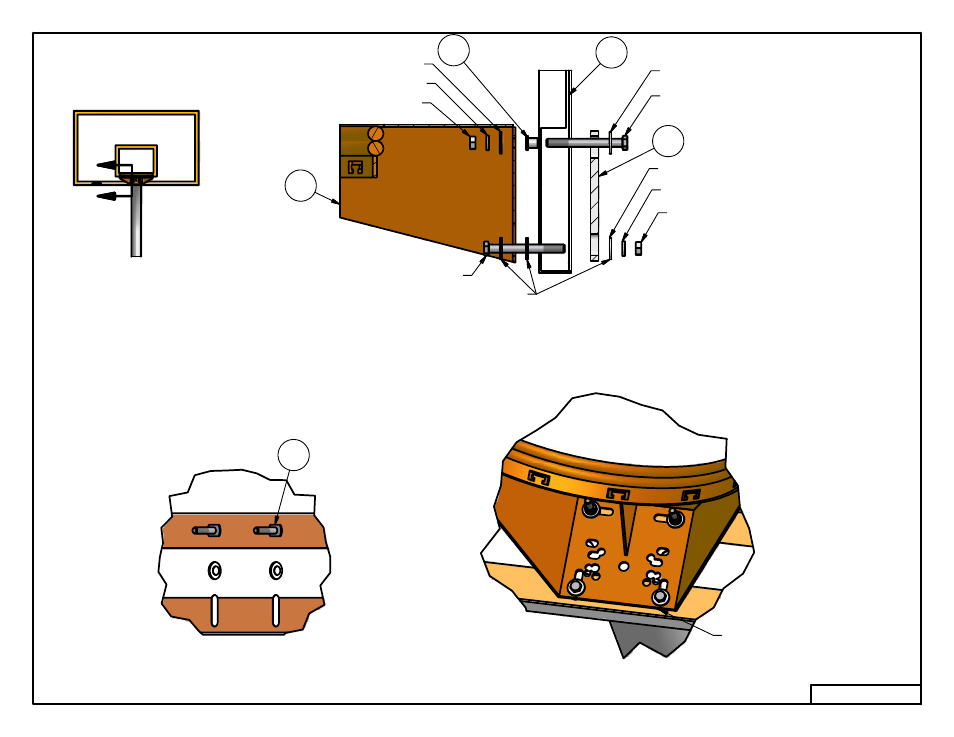

DETAIL B
BACKBOARD TEE NUTS
DETAIL C
GOAL ATTACHMENT
SECTION A-A
BACKBOARD MOUNTING
ALL HARDWARE IN THIS DETAIL EXCEPT FOR
THE TEE NUTS IS SUPPLIED WITH THE GOAL
A
A
PAGE 3 OF 4
3/8-16 TEE NUT
3/8 in FLAT WASHER PLACED
BETWEEN THE GOAL AND
THE BACKBOARD
14
3/8-16 TEE NUT BACKBOARD
UPRIGHT
GOAL
3/8"-16 HEX NUT, ZP
3/8" MEDIUM SPLIT LOCK WASHER, ZP
3/8 in FLAT WASHER
3/8 in FLAT WASHER
3/8-16 x 3 1/2 in HX HD ZP
3/8"-16 HEX NUT, ZP
3/8" MEDIUM SPLIT LOCK WASHER, ZP
3/8 in FLAT WASHER
3/8-16 x 3 1/2 in HX HD ZP
3/8 in FLAT WASHER(3)
14 2
3
1
