ASSEMBLY
1. Lay out frame pipes as shown in Figure 1 and assemble together by using fasteners shown in
Figure 3 Loctite may be used on these screws to ensure assembly. Important, the tee fittings
slide onto the pipes as shown in Figure 3.
2. Once the frame is completely assembled, fully tighten all fasteners.
3. Slip net onto frame.
4. Push end plugs Item 9 into leg base see Figure 1 Use rubber mallet if necessary.
5. Put wheels onto wheel bracket. Do not over tighten, wheels should turn freely. See Figure 4.
Wheel bracket fits into wheel base as shown in Figure 2 and is secured with one self tapping
screw shown in Figure 4.

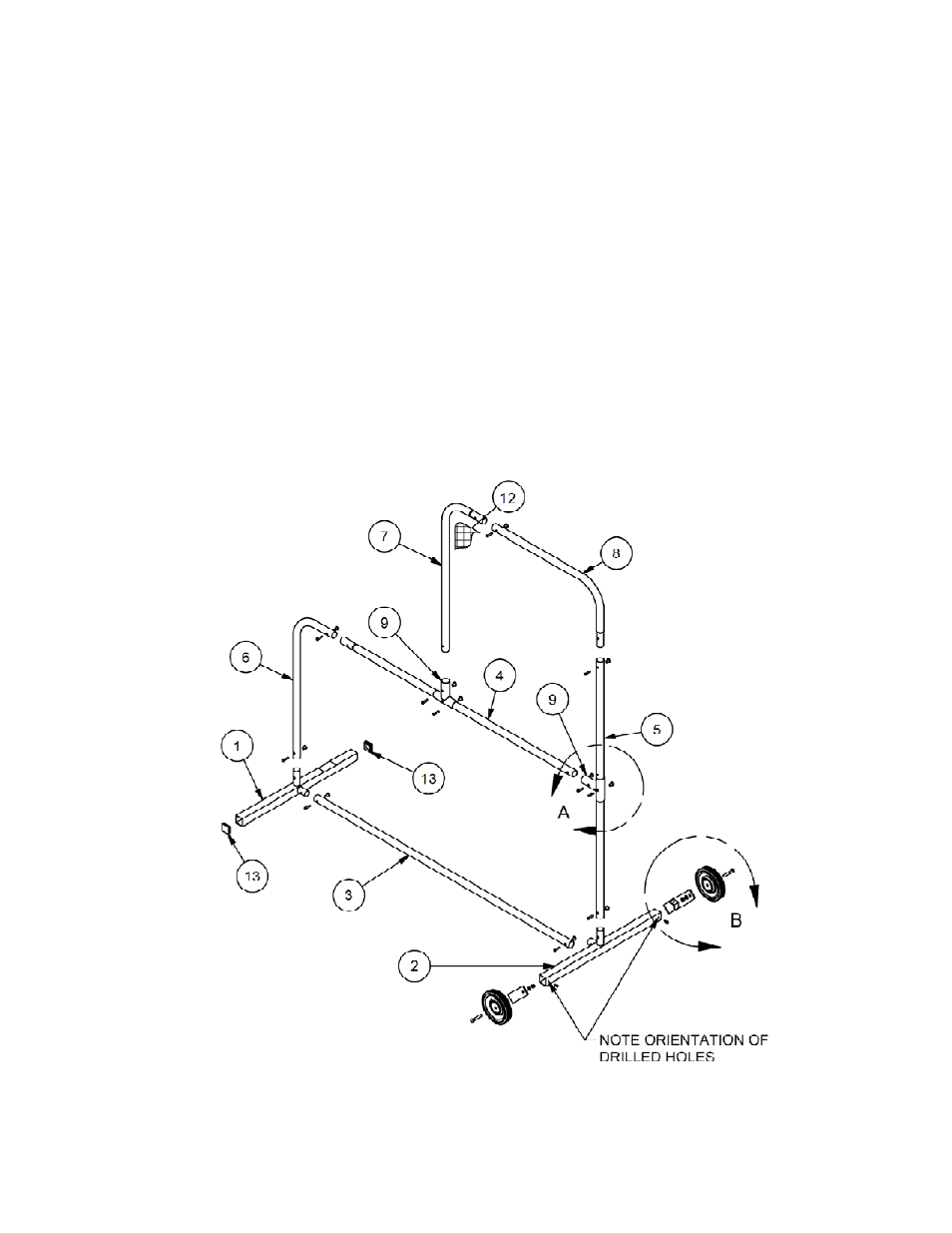

Figure 1 Model PS-84 Included Components and Hardware
