LADDER SETUP (continued)

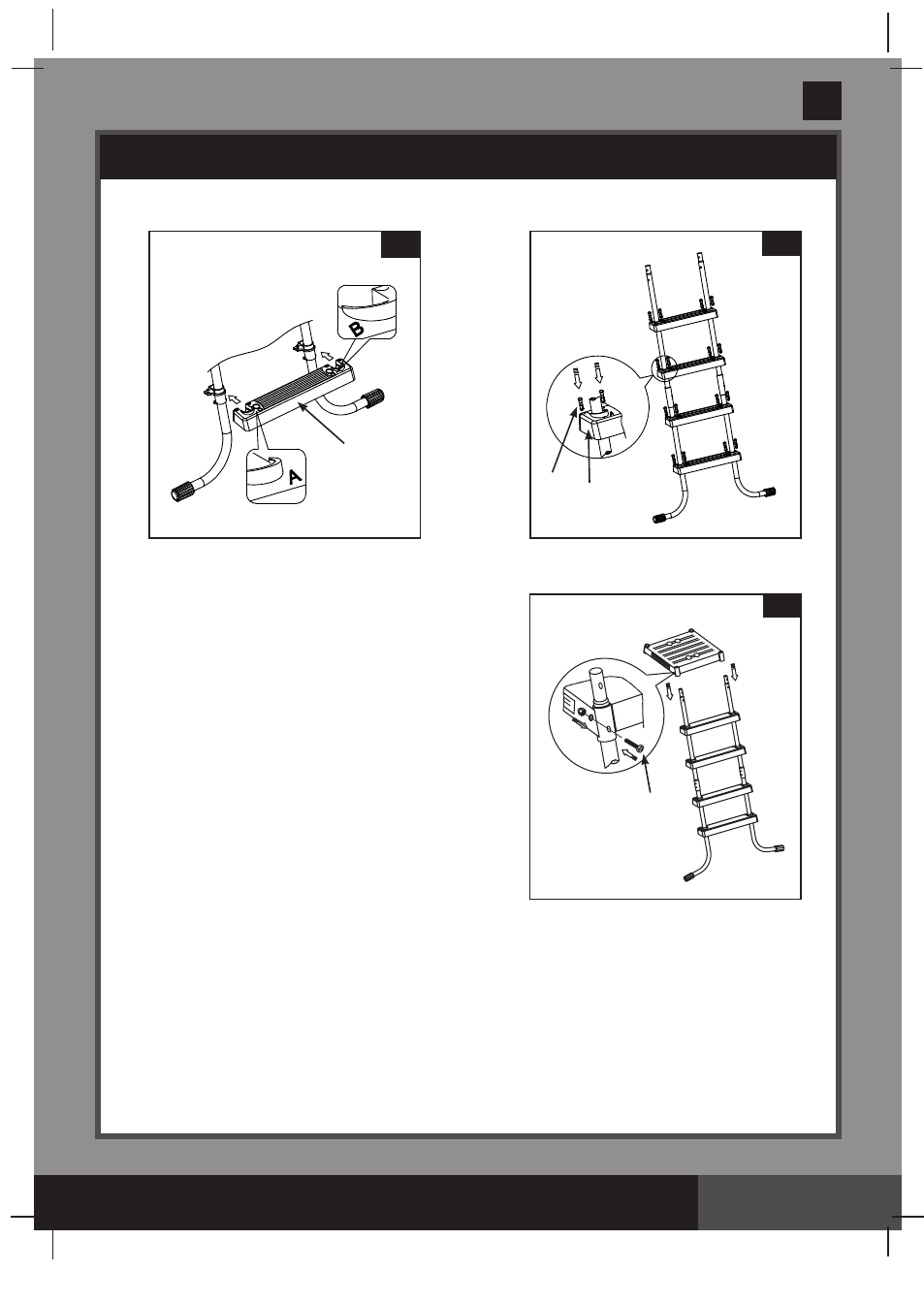

3. STEP INSTALLATION (refer to figures 2.1 through 2.2):
IMPORTANT: Make sure all pins are securely locked.
4. TOP PLATFORM INSTALLATION – ONE SIDE AT
A TIME (refer to figure 3):
Identify hole “A” and hole “B” on the top platforms
(2), marked accordingly at each corner. Slide the top
platforms over the legs, making sure hole “A” of one
corner of platform slides over leg “A” and hole “B” of
the other corner of platform over leg “B”. The small
holes on the side of platform should align with the
lower holes on the legs. Fasten each platform to the
legs using the longer fasteners/screws (4). Do not yet
attach the other side of the ladder to the top braces –
this assembly step will follow later.
