SAVE THESE INSTRUCTIONS
(92PO) 52” 2-SECTIONS POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 04/26/2013
English
Page 5

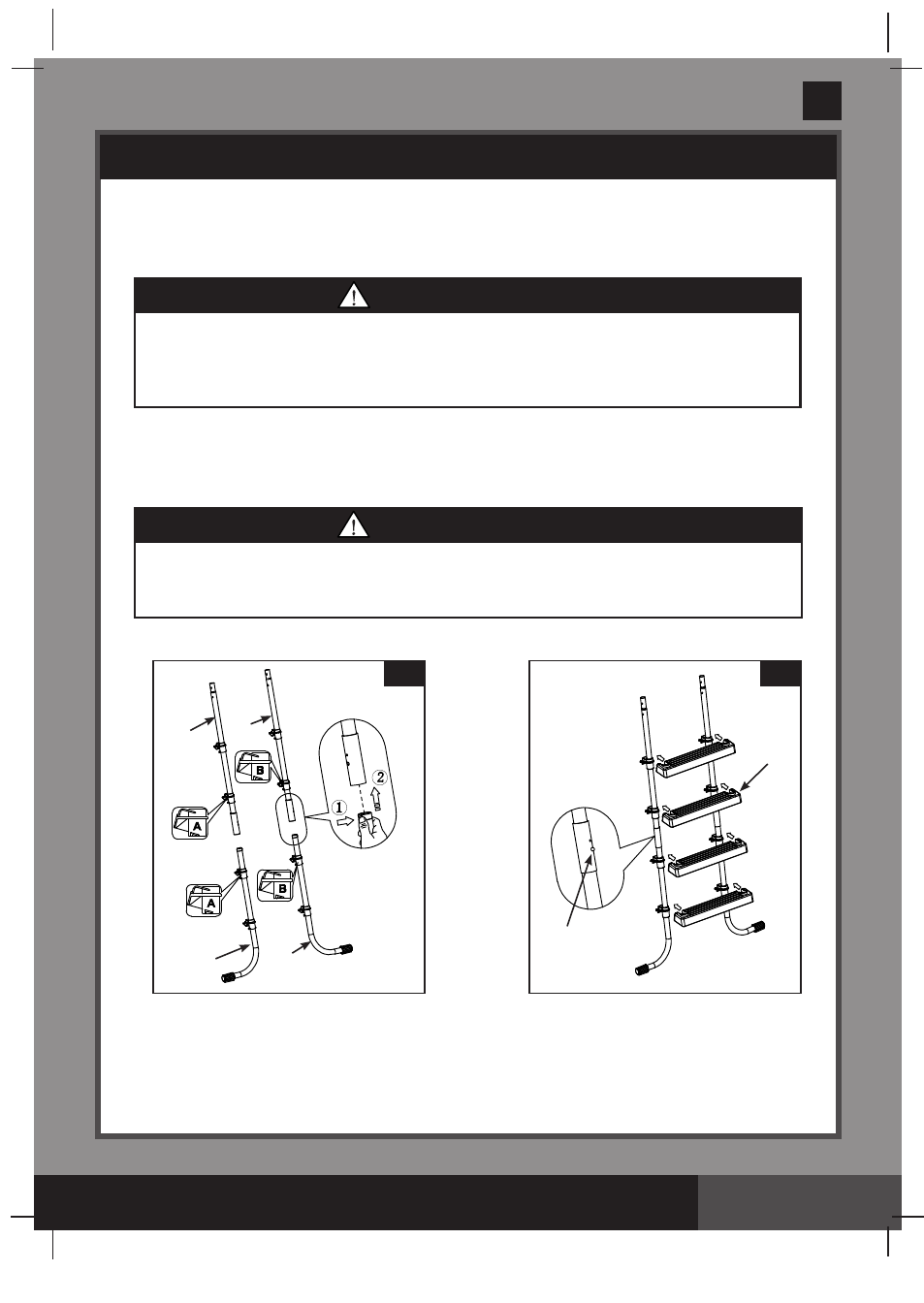

LADDER SETUP
TOOLS REQUIRED: One (1) Phillips screwdriver
One (1) pair of pliers or a small adjustable wrench
IMPORTANT: Do not fully tighten fasterners until last assembly operation.
WARNING
ASSEMBLE THE LEGS BEFORE INSTALLING THE LADDER STEPS. FAILURE TO
ASSEMBLE THE LEGS BEFORE INSTALLING THE STEPS MAY ALLOW THE
LEGS TO SEPARATE FROM THE LADDER DURING USE, POSSIBLY RESULTING IN
SERIOUS INJURY OR DEATH.
WARNING
INCORRECTLY CONNECTED PARTS MAY RESULT IN AN UNSTABLE LADDER
OR LADDER FAILURE WHICH CAN CAUSE FALLING AND PERSONAL INJURY
OR DEATH.
1. IDENTIFY PARTS:
It is very important to lay out the parts correctly and identify which parts connect
together before starting the assembly. Although some parts look alike, they are not
always interchangeable. Refer to the parts list.
A B
1.1
9
10
2. LEG ASSEMBLY (refer to figures 1.1 through 1.2):
1.2
A B
Spring pin
6
IMPORTANT: Make sure the legs are securely connected and locked. Check the spring
pins have snapped out before proceeding to the next step. Ensure the J-shaped legs
are pointing outwards before installing the steps.
8
7
Press,
hold and
insert
