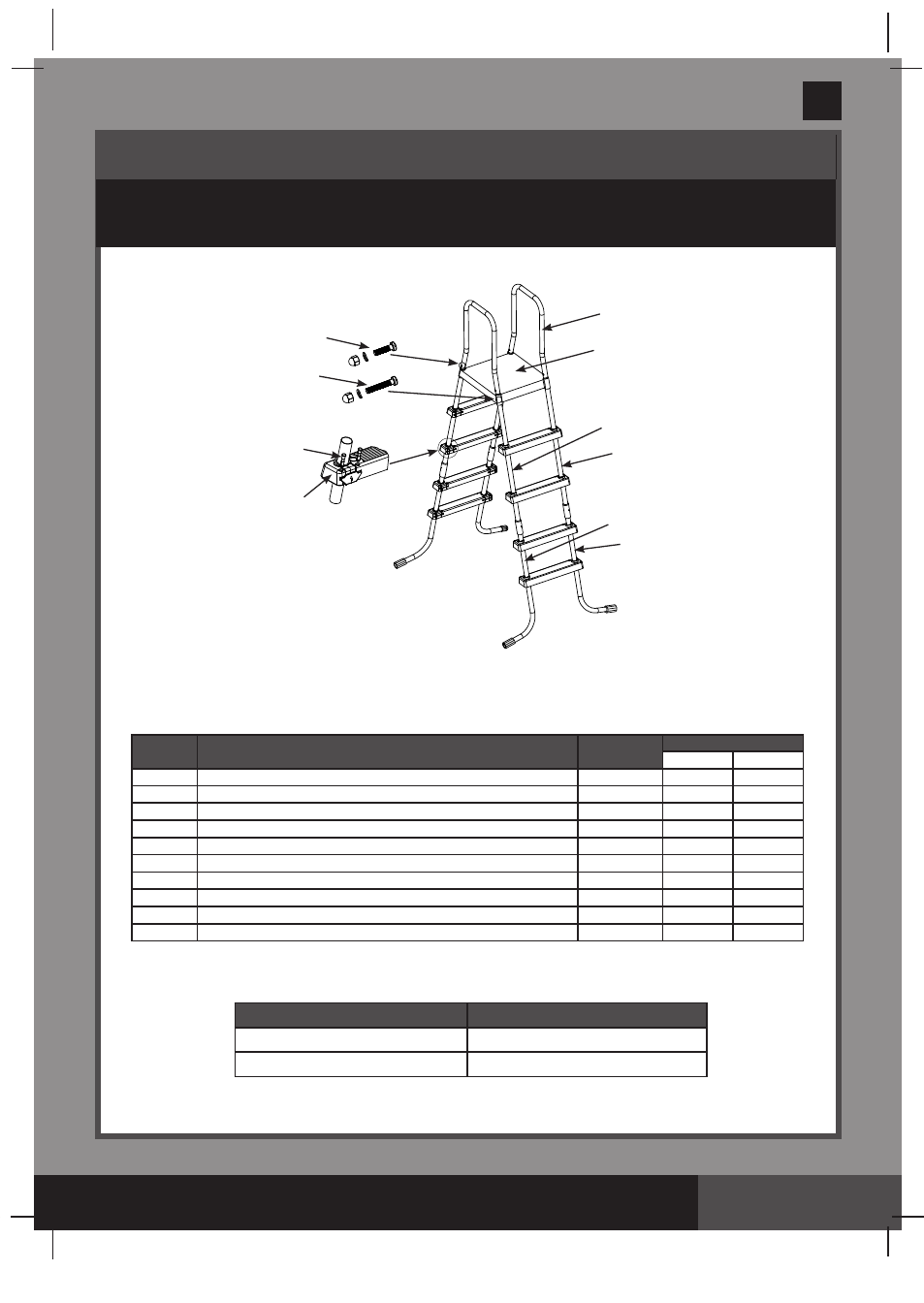

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
52in (132 cm) model
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF. NO. DESCRIPTION QUANTITIES
SPARE PART NO.
#58975 #10904
1 U-SHAPED TOP RAIL 2 10815 10911
2 TOP PLATFORM 1 11145 11146
3 SHORT FASTENER FOR U-SHAPED TOP RAIL (WITH 1 EXTRA) 5 10810 10810
4 LONG FASTENER FOR TOP PLATFORM (WITH 1 EXTRA) 5 10227 10227
5 STEP MOUNTING PIN (WITH 2 EXTRA) 34 10349 10913
6 STEP 8 10348 10914
7 UPPER SIDE LEG (MARKED “A”) 2 11557A 11559A
8 UPPER SIDE LEG (MARKED “B”) 2 11557B 11559B
9 LOWER J-SHAPED SIDE LEG (MARKED “A”) 2 11558A 11560A
10 LOWER J-SHAPED SIDE LEG (MARKED “B”) 2 11558B 11560B
2
1
3
4
5
9
7
8
6
10
This ladder is designed and manufactured for Intex pool wall height:
Item # Pool Wall Height
58975 (white & blue) 52in (132 cm)
10904 (silver & white) 52in (132 cm)
