S AVE THESE INSTRUCTIONS
Page 9

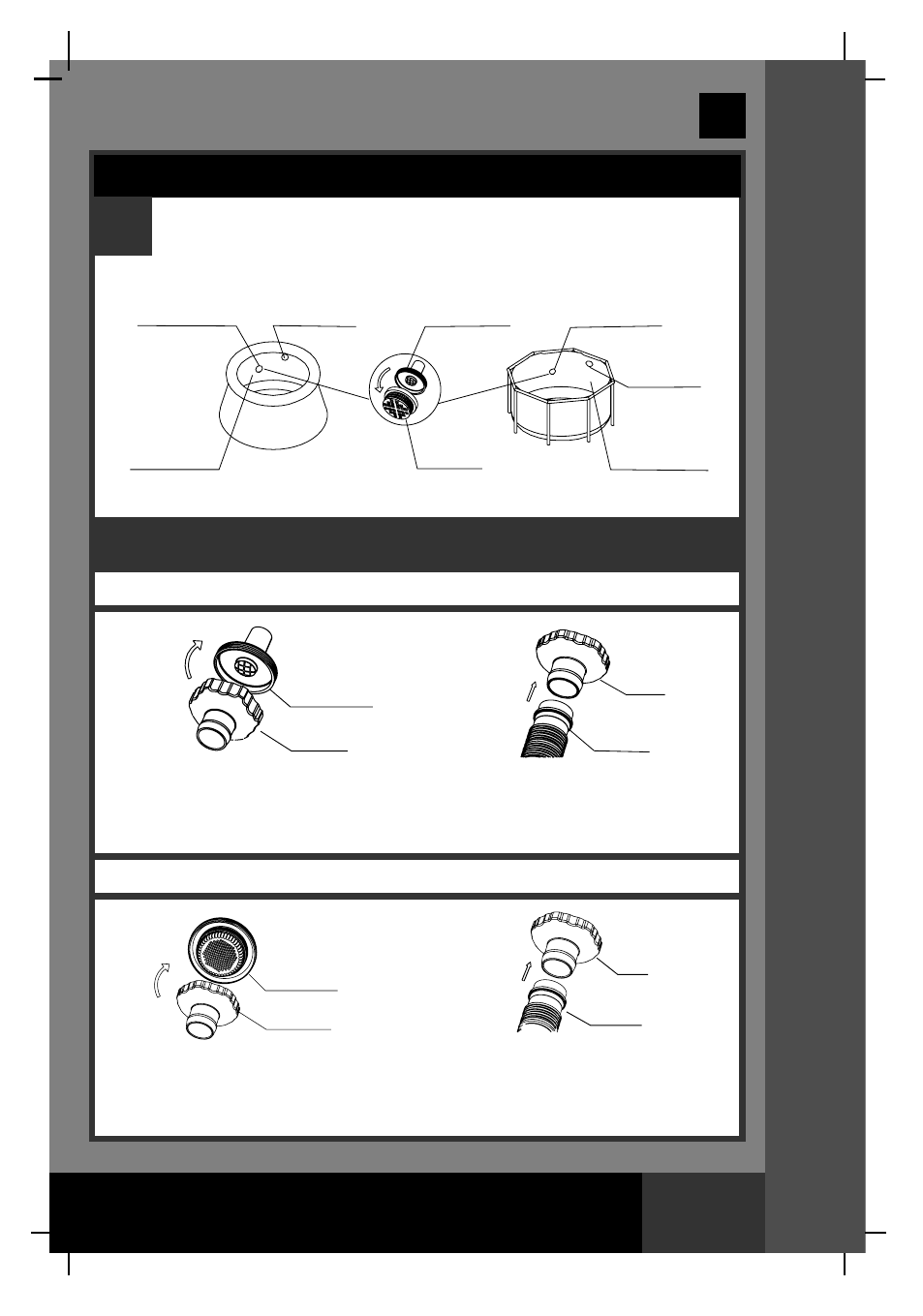

SETUP INSTRUCTIONS
English
SE
T
U
P
IN
S
TR
U
CTION
S
1
For pool size 16' (488 cm) and below:
Unscrew the strainer grid from the threaded strainer connector
(lower) from inside of the pool.
EASY-SET® POOL
METAL FRAME POOL
Lower Hose
Connection
Upper Hose
Connection
Threaded Strainer
Connector
Lower Hose
Connection
Upper Hose
Connection
Inside of the
Pool Wall
Inside of the
Pool Wall
Strainer
Grid
2
Depending on the size of pool purchased.
For 16' (488 cm) and below pools with strainer
17
Threaded
Strainer
Connector
a b
16
17
Screw the hose adaptor B (17) to the
threaded strainer connector, from
inside of the pool.
Connect the other end of the
skimmer hose (16) to the
hose adaptor B (17).
a b
For 18' (549 cm) and above pools with large strainer
17
Threaded
Strainer
Connector
16
17
Screw the hose adaptor B (17) to the
threaded strainer connector, from
inside of the pool. Connect the other end of the
skimmer hose (16) to the
hose adaptor B (17).
