SETUP INSTRUCTIONS (continued)
English
SE
T
U
P
IN
S
TR
U
CTION
S
3

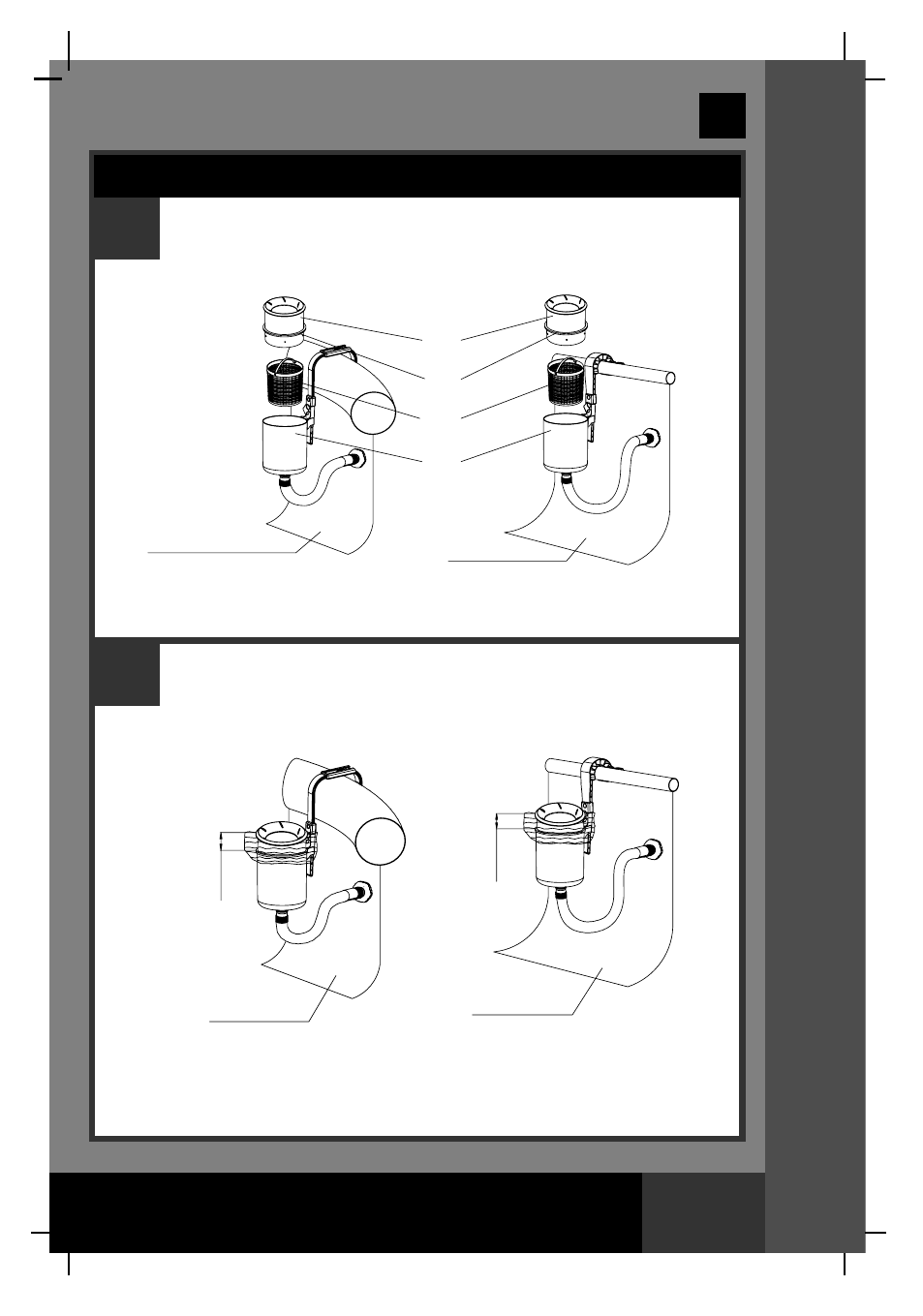

Place the basket (9), cover rim (7) and the floating cover (6) into
the skimmer (10). NOTE: the cover rim must be installed in place
in order to hold the Floating Cover in position.
EASY-SET® POOL METAL FRAME POOL
6
7
9
4
The floating cover (6) should be floating off the skimmer (10) by 1"
to 5" (2.5cm to 12.7cm). Loosen the skimmer screw, slide the
skimmer up and down on the assembled hook to adjust the height.
Hand tight the screw when done.
1”- 5”
(2.5CM-12.7CM)
1”- 5”
(2.5CM-12.7CM)
EASY-SET® POOL METAL FRAME POOL
IMPORTANT: The skimmer must stay vertical at all times, so that the top of
the floating cover can parallel to the water surface for skimming.
10
Inside of the
Pool Wall
Inside of
the Pool Wall
Inside of the
Pool Wall
Inside of the
