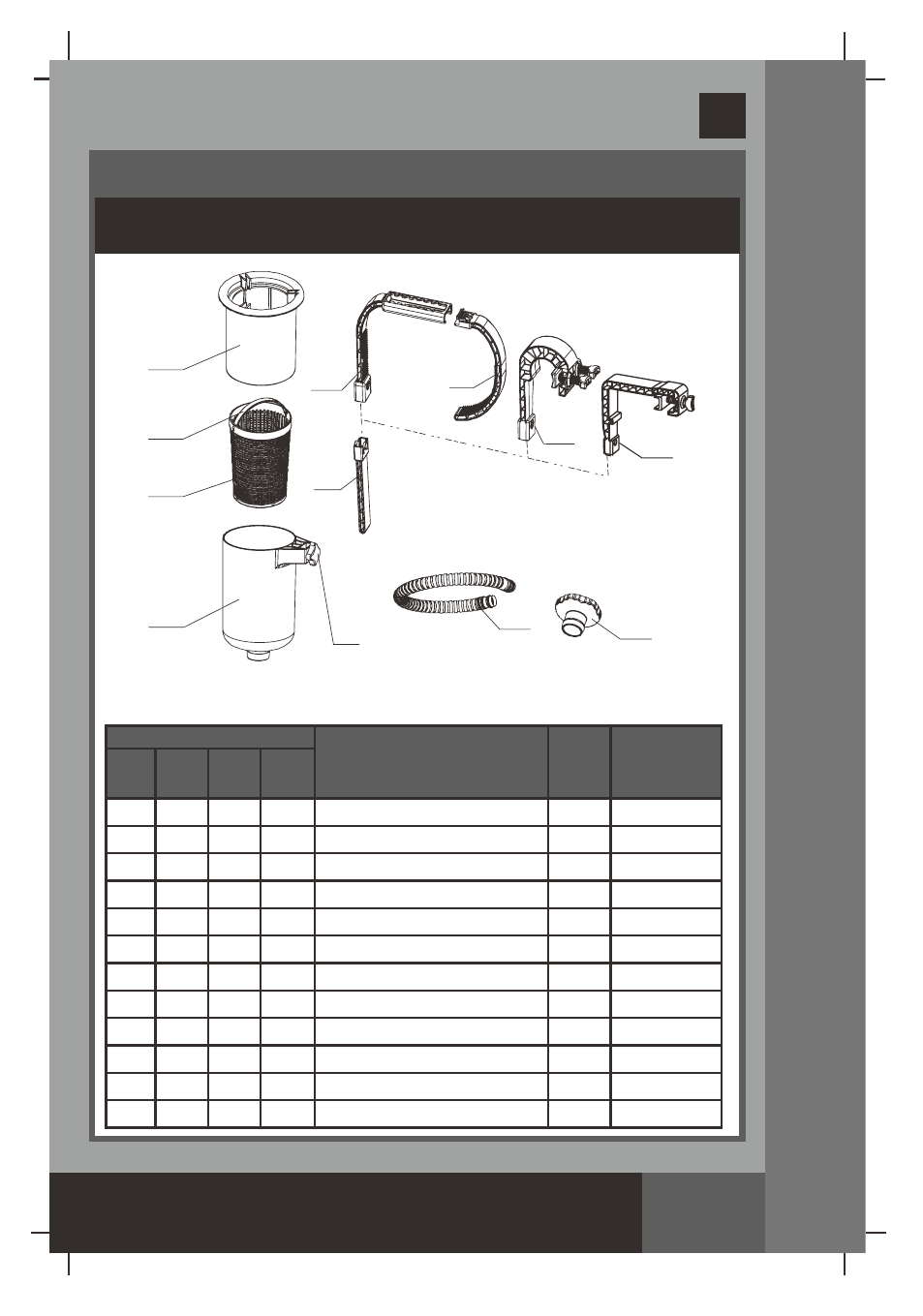

PARTS
REFERENCE
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the
contents and become familiar with all the parts.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to
scale.
REF. NO.
DESCRIPTION
QTY.
SPARE
PARTS NO.
EASY-
SET®
POOL
FRAME
POOL
SEQUOIA
SPIRIT®
POOL SET
COMMON
1
FLOATING COVER
1
10523
2
BASKET HANDLE
1
10534
3
BASKET
1
10524
4
SKIMMER
1
10525
5
SCREW
1
10526
6
DEPTH ADJUSTER
1
10522
7
HOOK (OPTIONAL)
1
10521
8
ARM (OPTIONAL)
1
10520
9
FRAME HOOK (OPTIONAL)
1
11502
10 SKIMMER HOSE
1
10531
11 HOSE ADAPTOR B
1
11238
12
TOP BOARD HOOK (OPTIONAL)
1
11153
1
2
3
4
5
6
7
8
9
10
11
12
