3-1

Chapter 3

Operation

The 9E106-06 module is a seven port device, six front panel ports, each
representing a separate Ethernet collision domain, and one backplane connection
to FNB-1 or FNB-2.

As shown in Figure 3-1, packets received through one of the six front panel
Ethernet ports and destined for another SmartSwitch 9000 module are translated
by the i960

Switch Processor into a FDDI frame format and then sent to FNB-1 or

FNB-2.

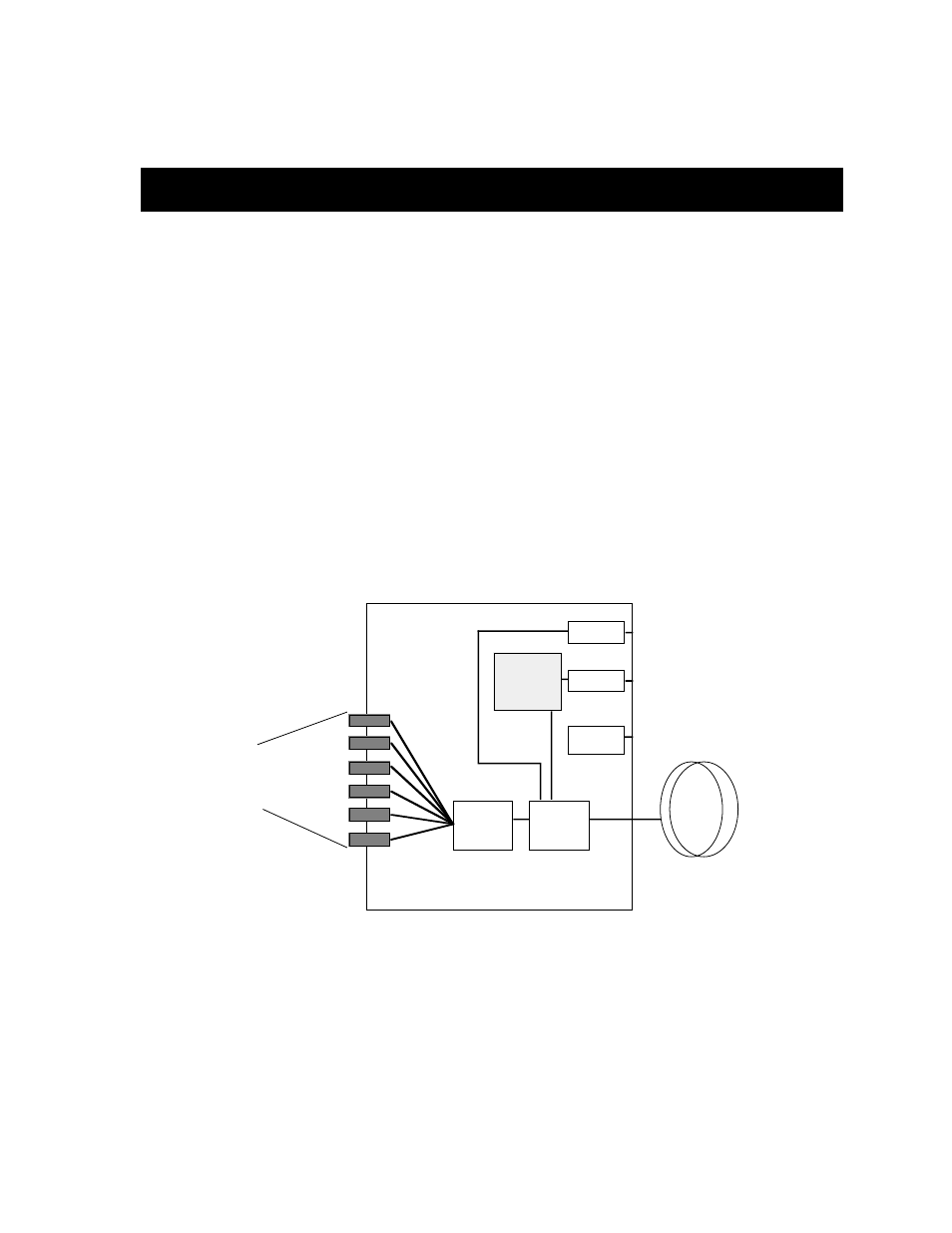

Figure 3-1. Packet Flow

Six

Front

Panel

Ports

i960 Switch
Processor

Ethernet

Ethernet

Ethernet

Ethernet

Ethernet

SMB-1

SMB-10

DC/DC
Convertor

System
Diagnostic
Controller

FNB-1
or
FNB-2

Ethernet

i960 Core
Processor
