Using the SEHI100TX Hub View
2-14 Monitoring Hub Performance
Active Users
This Þeld is not supported by the SEHI100TX-22.
Checking Port Status
You can open a Port Status window ( Figure 2-9 ) for any port in the SEHI100TX-
controlled HUBStack. To open the Port Status window:
1. Click mouse button 3 in the Port Index or Port Status box to display the Port
menu.
2. Drag down to Status and release.

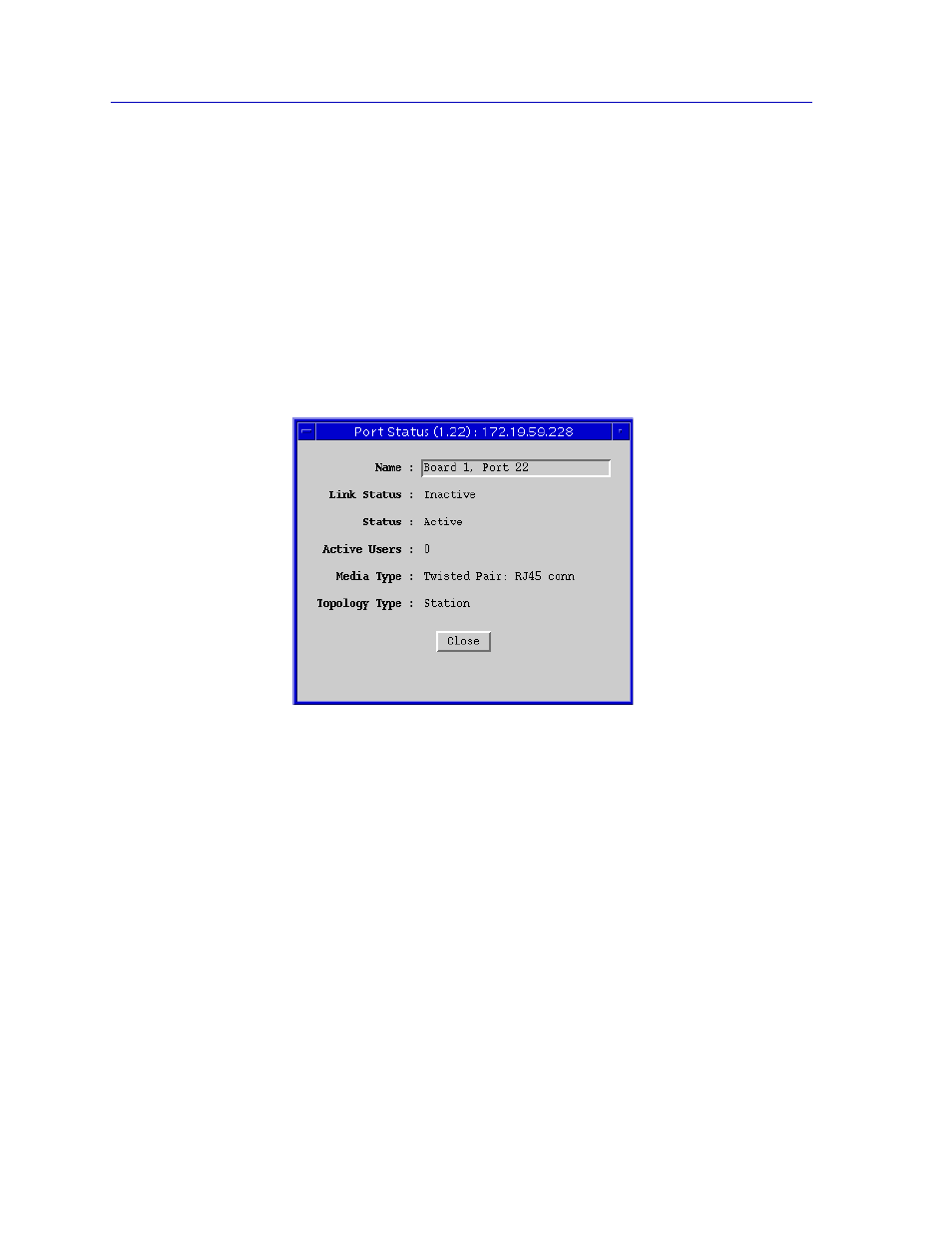

Figure 2-9. The Port Status Window
Note that the window title includes the module and port number in parentheses;
the rest of the window contains the following Þelds:
Name
This text Þeld can help identify the port; the information entered here is not
displayed anywhere else in the Hub View.
To edit the Name:
1. Highlight the text in the Name box and type in a new name.
2. Press Enter or Return on the keyboard to save your change.
Link Status
The portÕs Link Status tells you whether or not the port has a valid connection to
the node at the other end of the cable segment. The possible Link conditions are:
