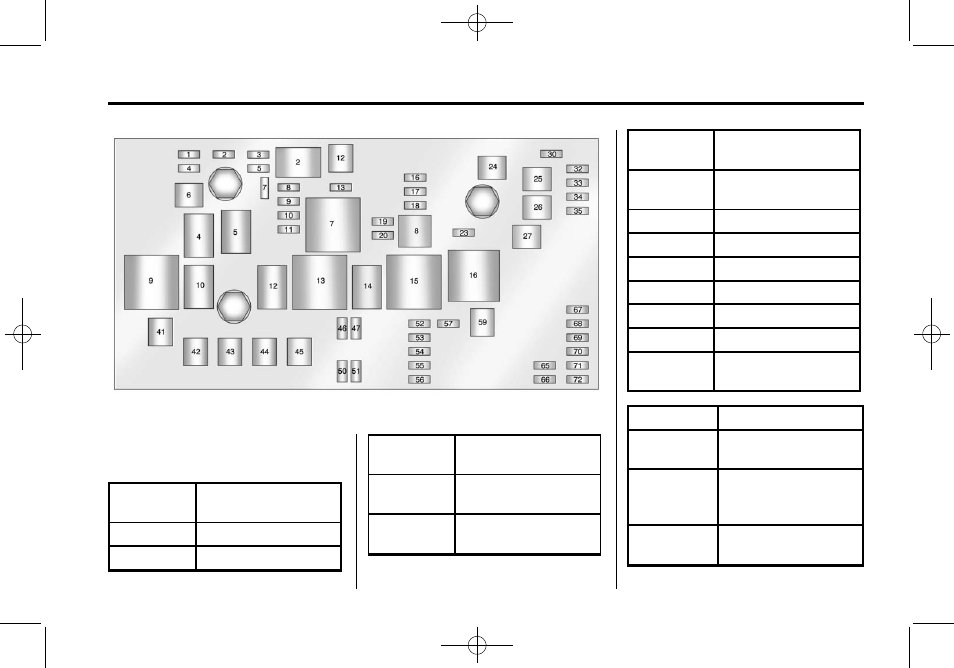

Engine Compartment Fuse Block
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
J-Case
Fuses
Usage
6 Wiper
12 Vacuum Pump
J-Case
Fuses
Usage
24
Anitlock Brake
System Pump
25
Rear Electrical
Center 1
J-Case
Fuses
Usage
26
Rear Electrical
Center 2
27 Not Used
41 Cooling Fan 2 (LF1)
42 Starter
43 Not Used
44 Not Used
45 Cooling Fan 1 (LF1)
59
Secondary
AIR Pump
Mini Fuses Usage
1
Engine Control
Module Battery
2
Transmission
Control Module
Battery
3
Mass Air Flow
Sensor
