FUSE REPLACEMENT

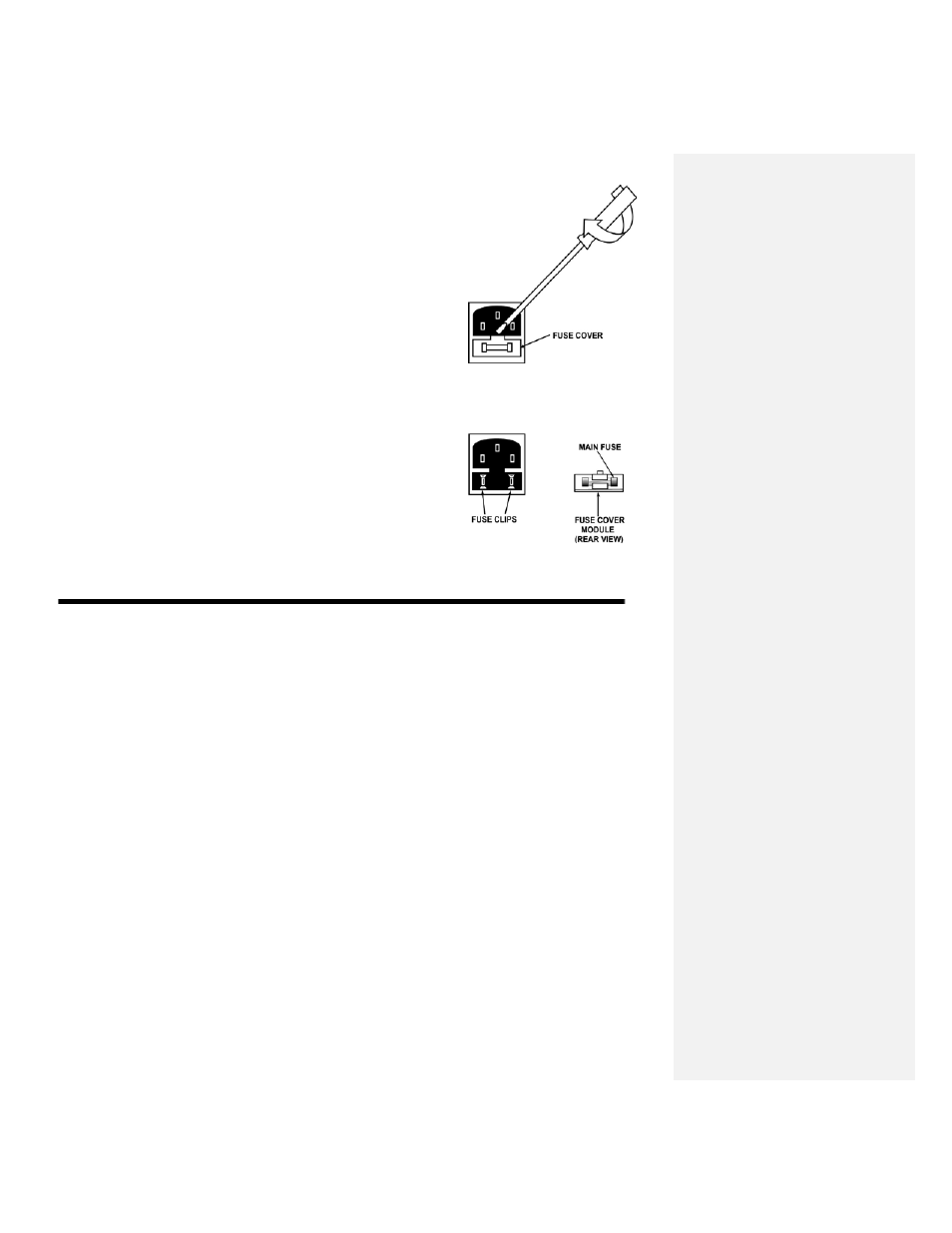

1. Use a small screwdriver as shown to slide the fuse cover
out from the power inlet module. The fuse can be found
inside the fuse cover module after it is pulled out.
NOTE: A SMALL COMPARTMENT IS ALSO PROVIDED
WITHIN THE FUSE COVER MODULE FOR STORING A
SPARE FUSE.
2. After replacing the fuse with another of identical
specifications, push the fuse cover module fully back into
place, ensuring that the fuse has snapped onto the fuse
holder inside the power inlet module .
VECTOR 210 SPECIFICATIONS
D-CAT amplifier output power
D-CAT amplifier protection
Frequency response
Maximum SPL
Fuse Slo Blo
Dimensions
Weight
NOTE: This Product may be covered
under one or more of the following
patent(s): 6,831,514, other patents
pending.
400watts RMS
Thermal shutdown, limiter protect
45Hz – 130Hz +/-3dB
128dB
5 amp-120 volt / 2.5 amp-220 volt
20H x 19W x 14.25D
55 lbs
