Interlogix 1085T Series - Manual (Page 2)

UL Specifications
Part Loop Electrical Gap
Number Type Configuration Distance *
1084TW Open or Closed SPDT 2"
1085T Closed N.O. 3 /
4
"
1085TW Closed N.O. 1 1 /
2
"
1087T Open or Closed SPDT 3 /
4
"
1087TW Open or Closed SPDT 1 1 /
2
"
* Gap Specifications are nominal and may vary
±
20%. Gap Specifications are for switch to make.
Break distance is approximately 1.1 to 1.5 times make.
** European Union Specifications: 48 V AC/DC max, 0.5 Amp
** FORM A (1085T, 1085TW) FORM C (1084TW, 1087T, 1087TW)
Voltage: 100 V AC/DC max Voltage: 30 V AC/DC max
Current: 0.5 A max Current: 0.25 A max
Power: 7.5 W max Power: 3.0 W max
WARNING: Each electrical rating is an individual maximum and cannot be exceeded!
C-UL Specifications
All Contacts: 30 VDC, 50 mA max Gap Specifications: *
See UL Gap Specifications
1085T Series
Surface Mount with Screw Terminals
Installation Instructions
1. 1084TW, 1085T, 1085TW, 1087T, 1087TW Select desired mounting positions for contact and
magnet. On wide gap contacts (those with W suffix) align labels on contact and magnet so
labels read in the same direction (switches are polarity sensitive). Attach with screws.
2. General If protective cover is to be used to shield screw terminals, allow space for “ears” of cover
before tightening down mounting screws. Route connecting wires through holes provided in cover.
12302 Rev F 07/02

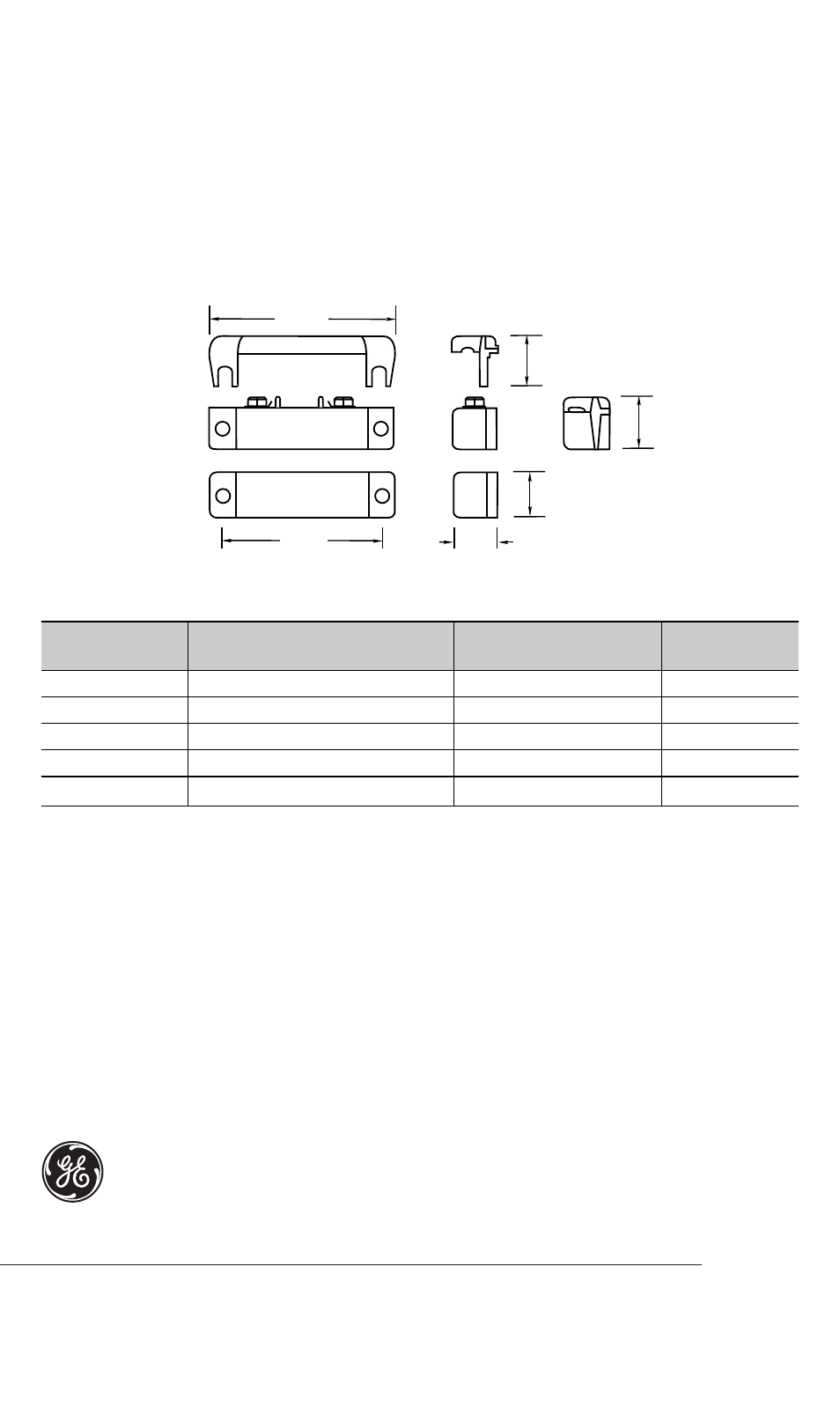

.50"
1.27 cm
.75"
1.91 cm
.63"
1.59 cm
.56"
1.43 cm
2.50"
6.35 cm
2.09"
5.33 cm
