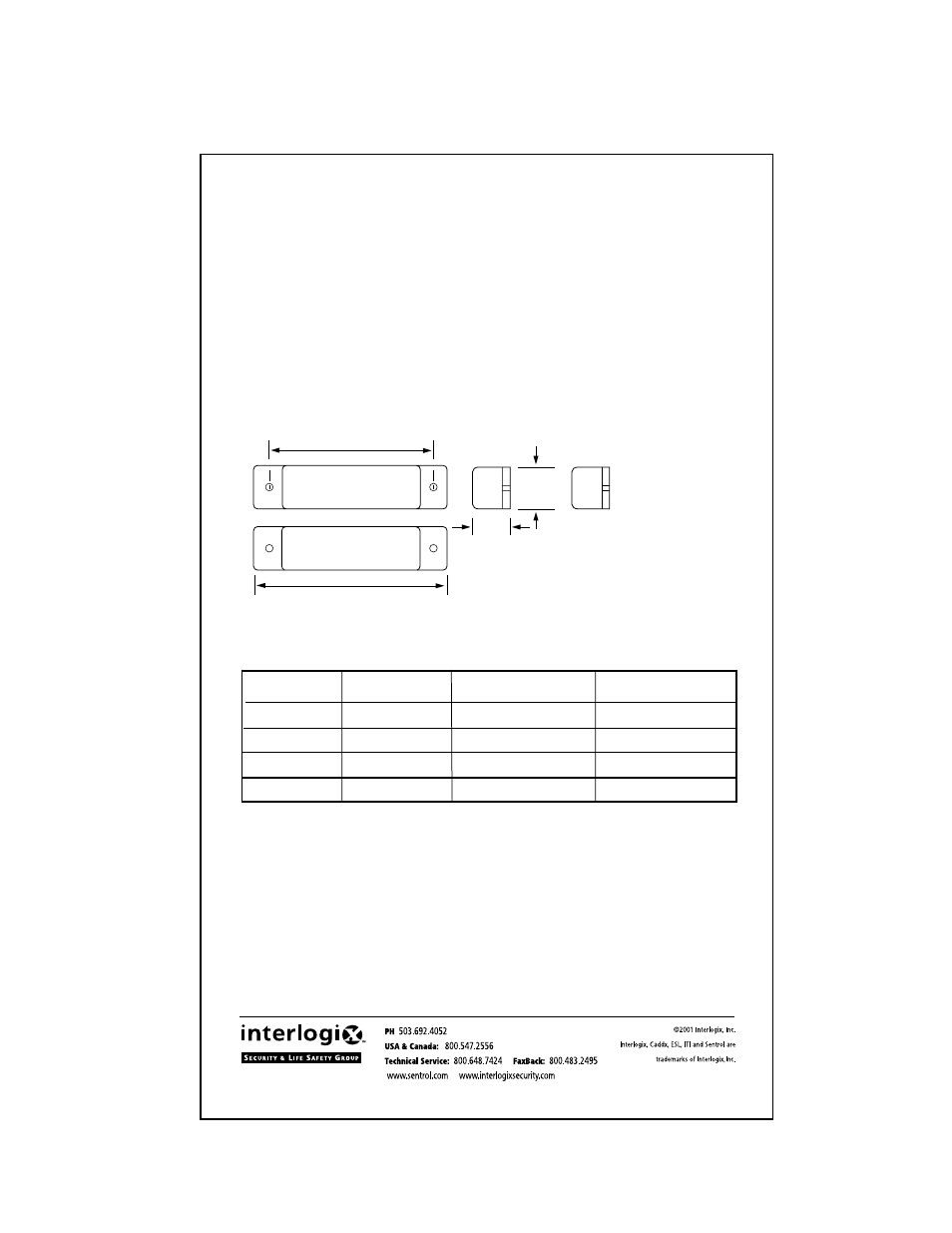

1082 Series Screw Mount with Leads
Magnetic Contacts
Installation Instructions
1082, 1083W, 1084D, 1084W
Select desired mounting positions for switch and magnet. For wide gap switches
align labels on switch and magnet so labels read in the same direction (switches are
polarity sensitive). Attach with mounting screws included.
Lead Colors on SPDT
Black: Common
White: Closed Loop
Red: Open Loop
** FORM A (1082)
Voltage: 100 VAC/DC Max
Current: 0.5 A Max
Power: 7.5 W Max
14096 REV B 11/01
FORM B (1083W)
Voltage: 30 VAC/DC Max
Current: 0.25 A Max
Power: 3.0 W Max FORM C (1084D, 1084W)
Voltage: 30 VAC/DC Max
Current: 0.25 A Max
Power: 3.0 W Max
ULC Specifications
All Contacts: 30 VDC, 50 ma max. Gap Specifications:*
See UL Gap Specifications
UL Specifications
**European Union Specifications: 48 VAC/DC Max., 0.5 Amp
Part Loop Electrical Gap Distance
Number Type Configuration
1082 Closed N.O. 1"
1083W Open N.C. 2"
1084D Open or Closed DPDT 3/4"
1084W Open or Closed SPDT 2"
Magnet
Part No. 1080-T
(included)
2.09"
5.33 cm
0.56"
1.43 cm
0.50"
1.27 cm
2.56"
6.51 cm
