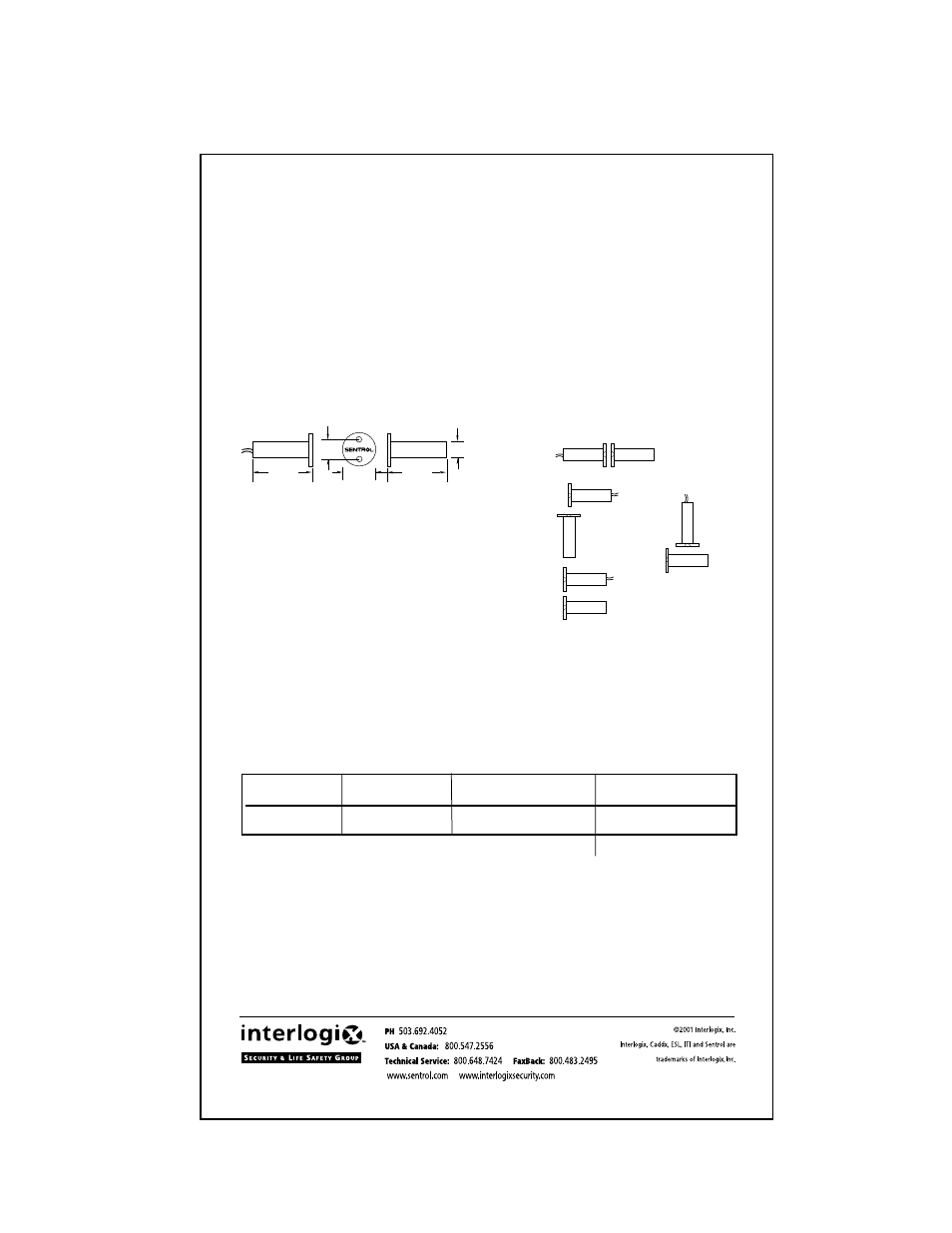

1072 Series 3/8" Diameter Flanged with Wire Leads
Magnetic Contacts
Installation Instructions
General
Drill 3/8" diameter hole, press in, secure with screws through flange holes.
Magnet (1057)
Slightly overdrill 3/8" diameter hole. Coat magnet with RTV Mounting Compound
(Sentrol part number 1905), press into hole.
FORM A (1072)
Voltage: 100 VAC/DC Max
Current: 0.5 A Max
Power: 7.5 W Max
PK-0983 Rev E 10/01
* Gap Specifications are nominal and may vary
±
20%. Gap
Specifications are for switch to make. Break distance is
approximately 1.1 to 1.5 times make.
CORRECT
INCORRECT
End-to-End
Perpendicular
Parallel
Do NOT center
magnet under switch
1.31"
3.31 cm
0.75"
1.91cm
0.38"
0.95 cm
Magnet
Part No. 1925
(included)
1.31"
3.31 cm
®
0.56"
1.42 cm
Part Loop Electrical Gap Distance
Number Type Configuration Make* (Up to)
1072 Closed N.O. 1/2"
UL Specifications
1072 Series Mounting Positions
