TVN 50 Quick Start Guide 5 : EN
When using TruNav:
RTSP port: 554
Server/Client software port : 8000

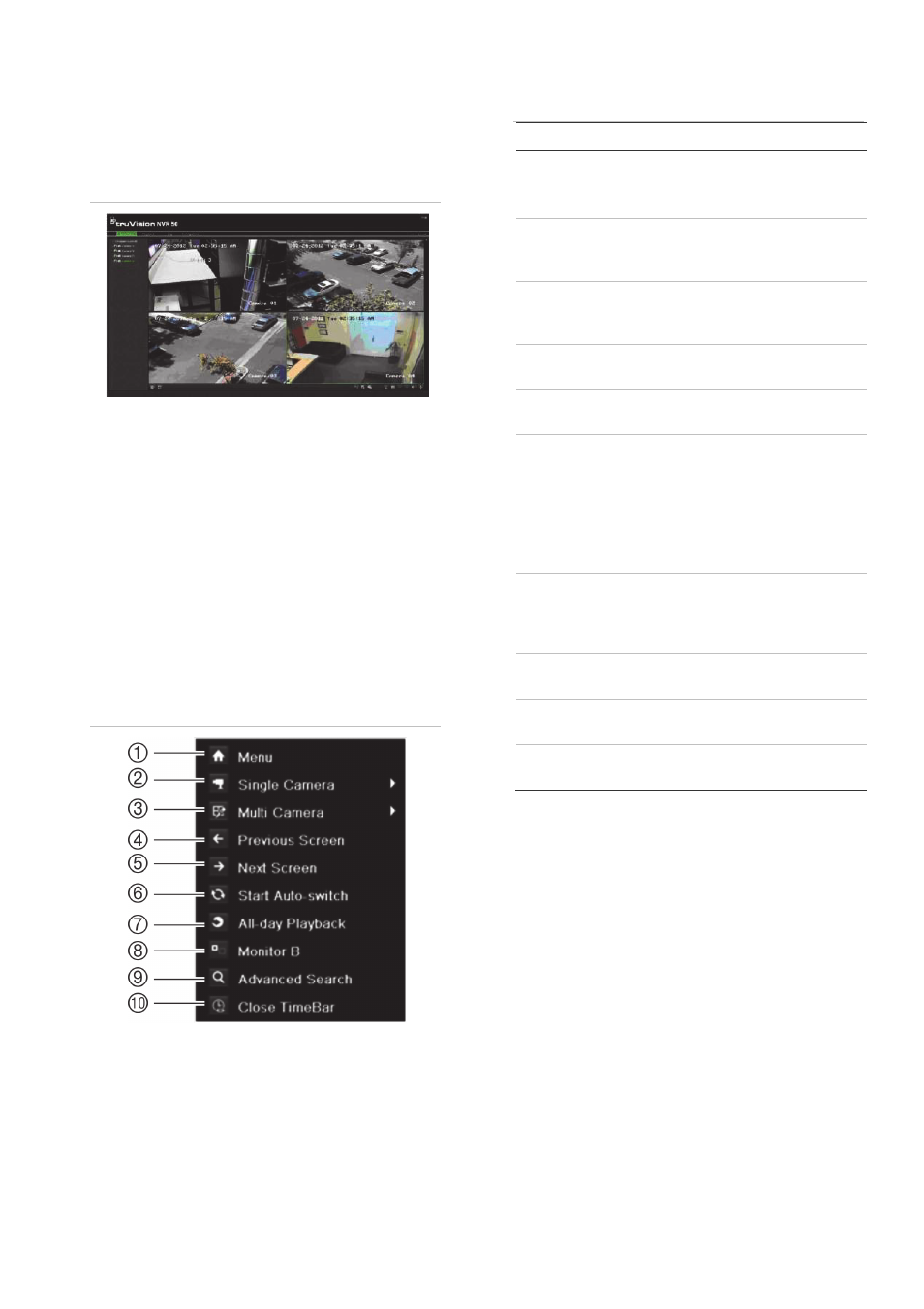

Figure 3: Web browser interface
Live view mode
Live mode is the normal operating mode of
the unit where you watch live pictures from
the cameras.
Regularly used functions in live view can be
quickly accessed by clicking the right-button
of the mouse on the camera image. The
shortcut pop-up toolbar appears. See
Figure 4 below for a description of the
functions available.
Figure 4: The mouse menu for the main
monitor
The list of commands available depends on
which monitor is active; main or spot
(monitor B). See Table 1 below.
Table 1: Mouse menu for monitor A
(main monitor)
Item Name Description
1. Menu Enter the Main menu.
This option is not available
from monitor B.
2. Single
camera
Switch to a full-screen view
for the selected camera from
the dropdown list.
3. Multi
camera
Switch between the different
multiview options from the
dropdown list.
4. Previous
screen
Displays the previous
camera.
5. Next
screen
Displays the next camera.
6. Start auto-
switch
Turn on sequence mode.
The screen automatically
sequences between
cameras.
Go to Menu > Display Mode
Settings > Layout > Dwell
Time to set up.
7. All-day
playback
Playback the recorded video
of the selected day from the
selected camera. The current
day is selected by default.
8. Monitor B Switch between monitors A
(main) and B (spot).
9. Advanced
search
Enter the advanced video
search menu.
10. Close
timebar
Open/close the time bar.
Configuring the TVN 50
The TVN 50 has an icon-driven menu
structure that allows you to configure the
unit’s parameters. Each command icon
displays a screen that lets you edit a group
of settings. Most menus are available only
to system administrators.
Refer to the TVN 50 user manual for
detailed information on configuring the unit.
To access the main menu from live view:
 Press the Menu button on the remote
control or front panel
- Or -
