EN : 2 TVN 50 Quick Start Guide

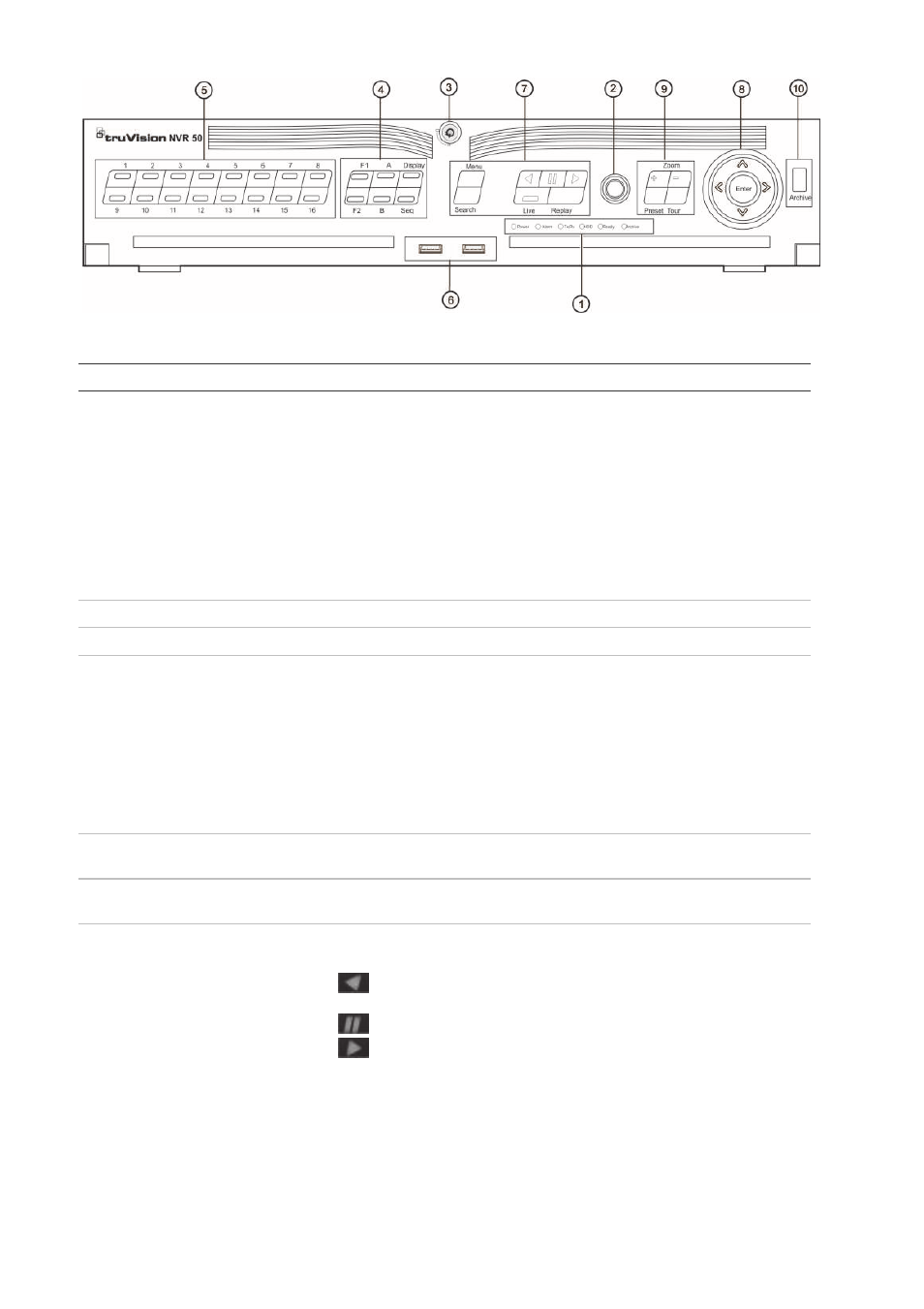

Figure 2: Front panel controls
Item Name Description
1. Status LEDs Power: Green indicates the NVR is working correctly. Red indicates
a fault.
Alarm: Lit indicates an external alarm status or motion.
Tx/Rx: Tx/Rx indicator blinks green when network connection is
functioning properly.
HDD: HDD indicator blinks red when data is being read from or
written to the HDD.
Ready: Green indicates the device is functioning properly.
Archive: Archive indicator blinks green when record files or pictures
are being exported to a USB or eSATA device.
2. IR receiver Receiver for IR remote.
3. Front Panel Lock You can lock or unlock the front panel with a key.
4. Display buttons Display: Toggles through the various multiviews: full, quad, 1+5, 1+7,
9, and 16.
Sequence: Starts/stops sequencing in live view mode.
A: Selects the main monitor
B: Selects the spot monitor (in live view)
F1: In all-day playback, click to start and stop video clipping.
F2: In live view mode, click to display/hide the time bar.
In all-day playback, click to hide/display the playback control toolbar.
5. Numeric buttons Switch between different cameras in live, PTZ control or playback
modes.
6. USB Interfaces Universal Serial Bus (USB) ports for additional devices such as a
USB mouse and USB Hard Disk Drive (HDD).
7. Menu and Search
buttons
Playback buttons Menu: Enter/exit the main menu.
Search: Enter the advanced search menu.
: Jump back to the oldest available video and starts the
playback.
: Pause playback.
: Instantly playback the currently selected file. Default time is
1 minute.
Live: Switch to live view mode.
Replay: Replay the current file in playback Starts at the beginning of
the file.
