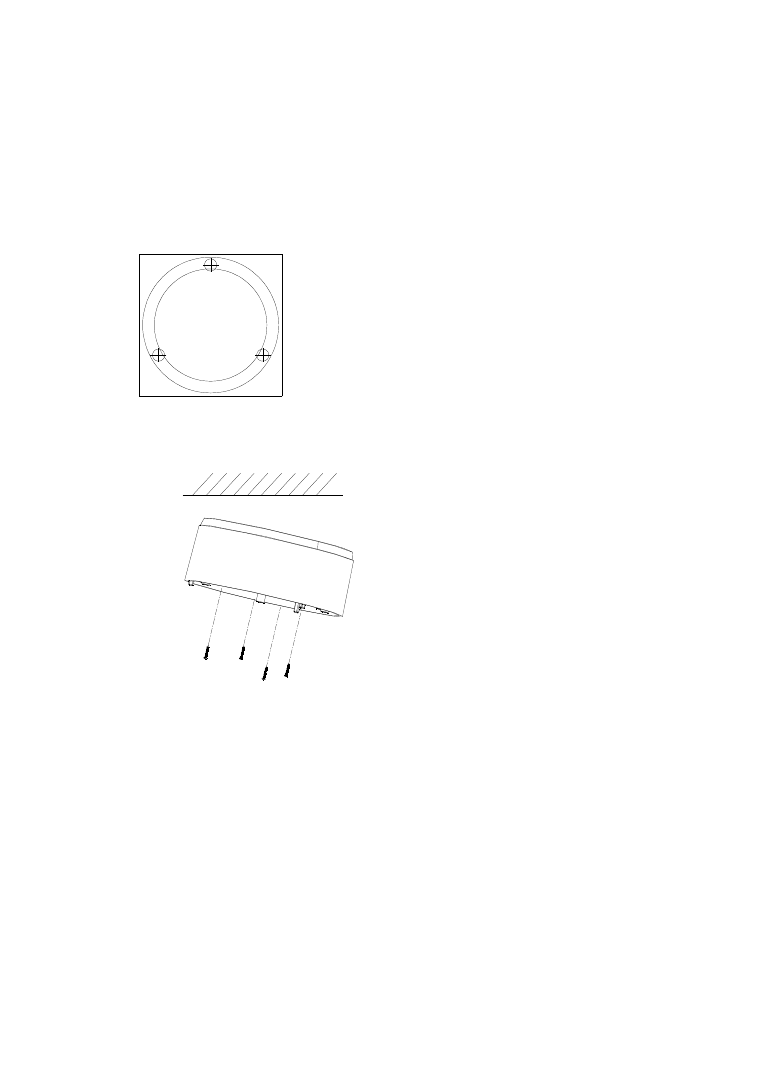

Mounting the outdoor dome camera
To mount the outdoor dome camera on a ceiling:
1.
Drill the screw holes on the ceiling with the supplied
drilling template. To route the cables from the base of the
camera, cut a cable hole in the ceiling.
2.
Install the mounting base to the ceiling with the supplied
screws.
3.
Connect the corresponding power cable and network
cables.
4.
Remove the bubble and liner of the camera.
Drill Template
