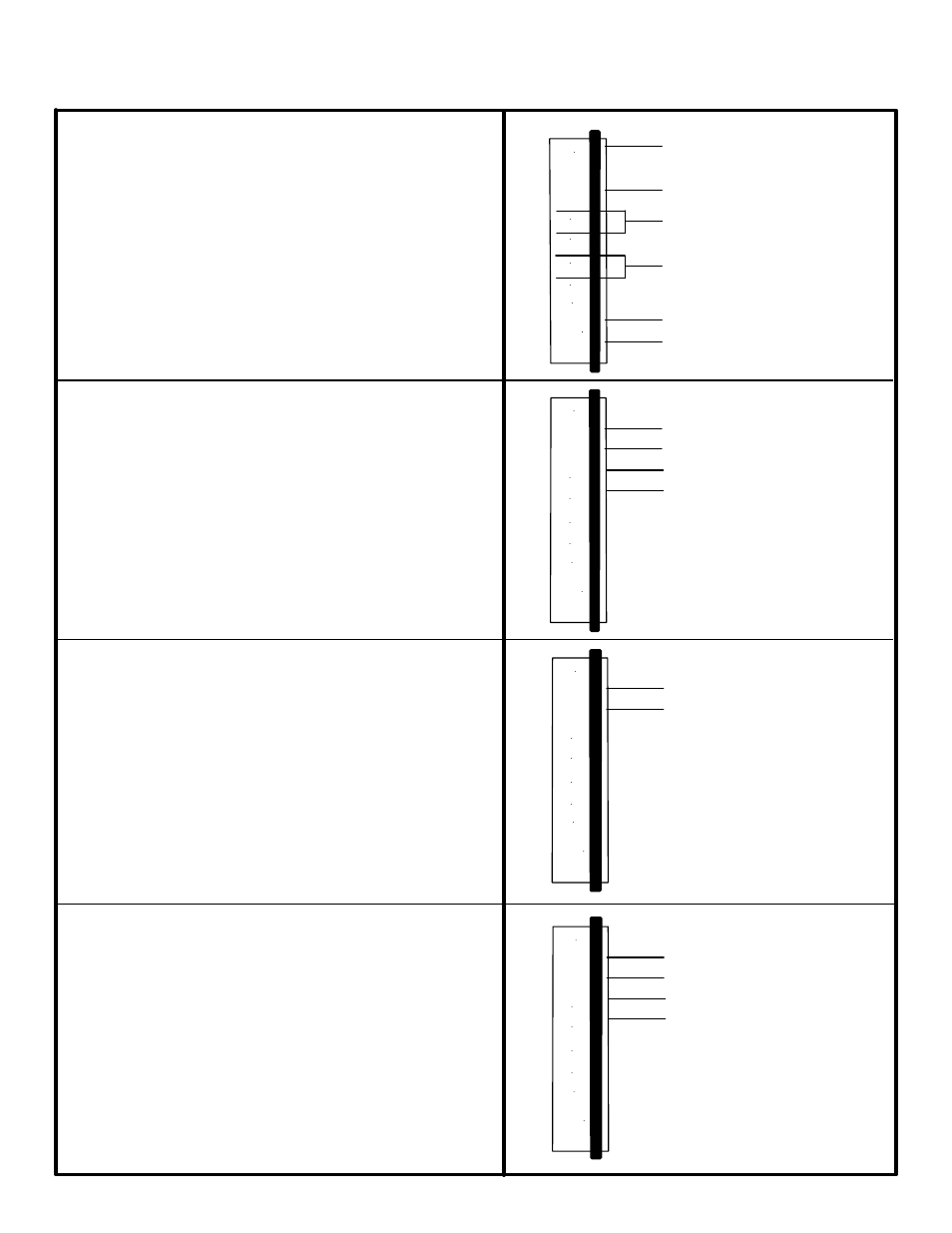

OTHER CONNECTIONS*
* For further information see Appendix
RS-422 DATA
2w RS-485 DATA
4w RS-485 DATA
D19100SHR Series
22
21
13
12
11
10
9
23
"FAIL" CONTACT CLOSURE,
NORMALLY CLOSED
MAY BE TEMPORARILY
CONNECTED TO PIN 24 TO
RESET ANTI-STREAMING
MASTER RELAY ACTIVE MODE
CONTACT CLOSURE
SIGNAL GROUND
CONNECT TO PIN 24 FOR
MASTER CONTROL MODE
+ 5 VOLTS JABBER RESET
24
17
16
15
14 DATA IN +
DATA IN -
DATA OUT +
DATA OUT -
17
16
15
14 DATA IN +
DATA IN -
DATA OUT +
DATA OUT -
15
14 DATA IN / OUT +
DATA IN / OUT-
