Figure 9

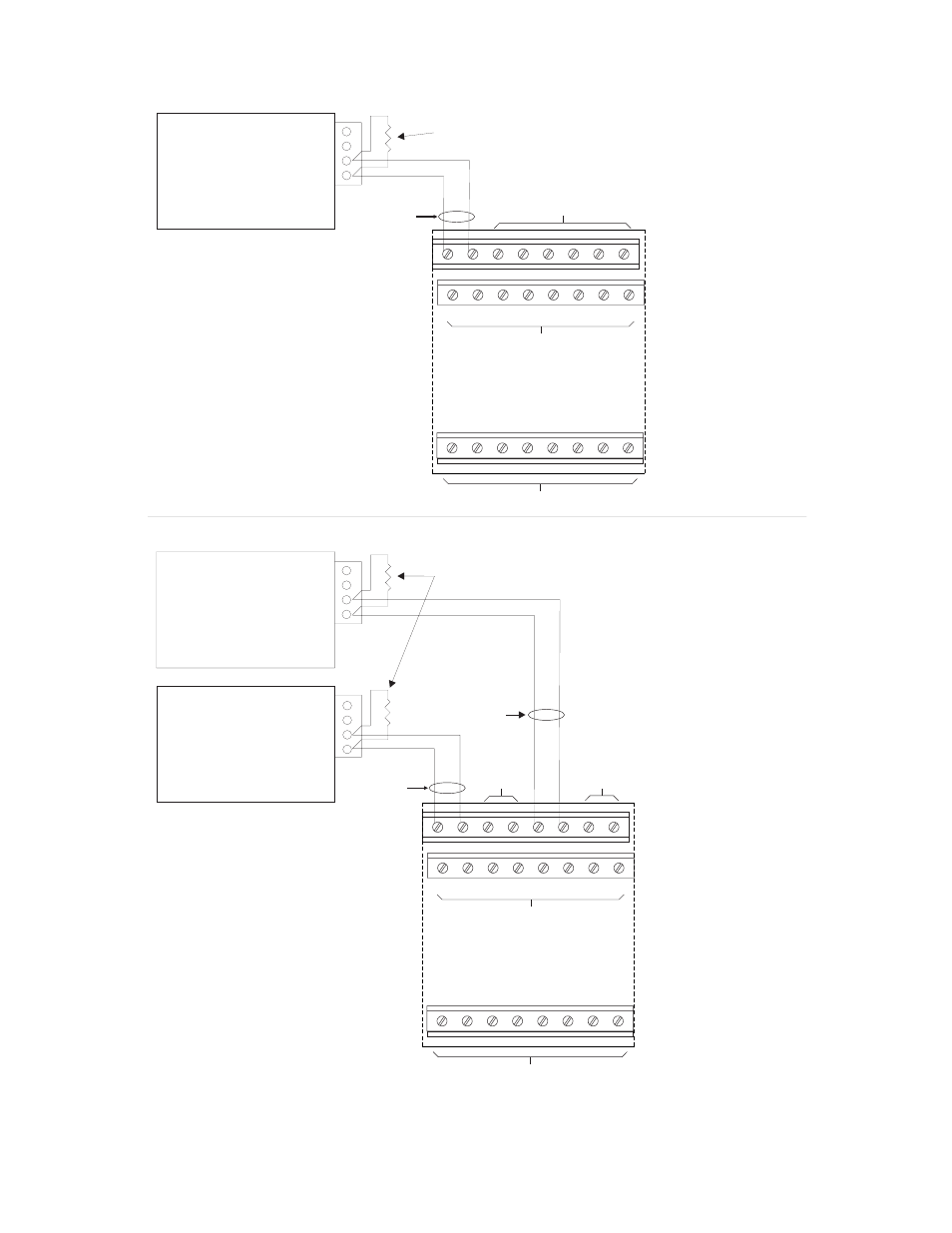

Wiring the RS-485 HNET or XNET Network in Style 4 and Style 7 (FireFinder XLS)
P/N 315-050018-0
D2300CPS
-4
-3
-2
-1 (DO NOT USE)
(DO NOT USE)
-DATA
+DATA
EOLR
120 OHMS, 1/4W
P/N 140-820150
RS-485 RATINGS:
8V P-P
150mA MAX
80 OHMS MAX
18 AWG MIN
NO EOLR REQUIRED AT THE NIC-C
RS-485 RATINGS:
8V P-P
150mA MAX
80 OHMS MAX
18 AWG MIN
NO EOLR REQUIRED AT THE NIC-C
STYLE 4 HNET/XNET
STYLE 7 HNET/XNET
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
DO NOT USE
DO NOT USE
DO NOT USE DO NOT USE
ONE SLOT OF CC-5/CC-2
NIC-C
SUPERVISED
SUPERVISED
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
DO NOT USE
DO NOT USE
DO NOT USE
ONE SLOT OF CC-5/CC-2
NIC-C
D2300CPS
-4
-3
-2
-1
(DO NOT USE)
(DO NOT USE)
-DATA
+DATA
EOLR
120 OHMS, 1/4W
P/N 140-820150
SUPERVISED
D2300CPS
-4
-3
-2
-1
(DO NOT USE)
(DO NOT USE)
-DATA
+DATA
