IC Realtime 600TVL License Plate Capture Camera (ELID1) User Manual
Page 8
- 8 -
Camera Adjustments
The IR potentiometer is the only camera adjustment on the EL-ID1. This
allows the user to adjust the intensity of the IR’s for different capture points.
To access this mechanism please follow these steps:

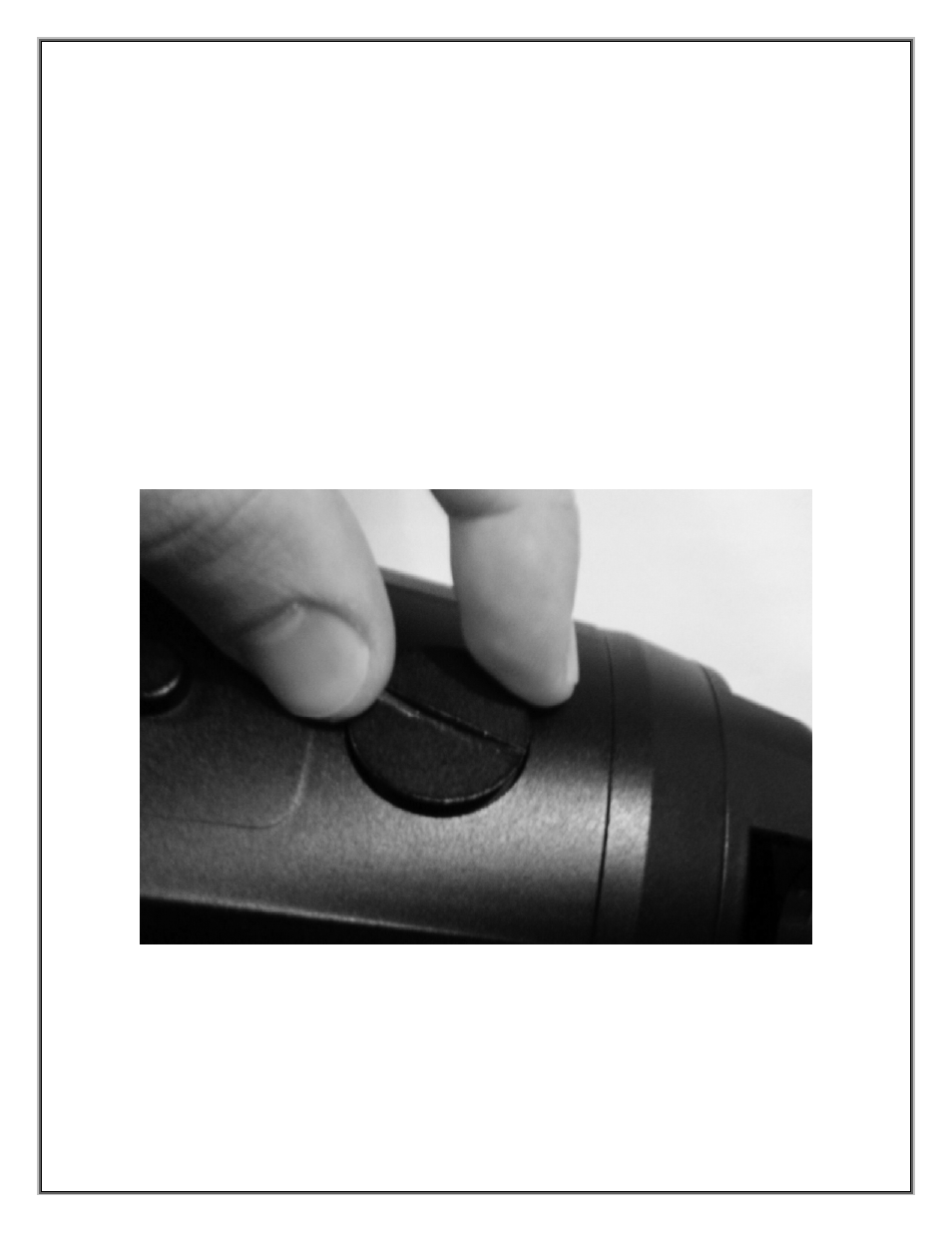

• Access the IR potentiometer by removing the round entry plate
located on the top of the EL-ID1. Turn Counterclockwise for removal
(see below).
