18 19
5. Fluorescent
Color Rolling Reduction (CRR)
OFF : Not used CRR.
CRR : This color roll reduction mode will work with
manual and auto-iris lenses. However, using it
with auto-iris lenses typically results in
noticeable levels of noise in shadows or dark
areas in the image.
CRR2 This color roll reduction mode works with
auto-iris lenses ONLY. Noise levels are
reduced in shadows or dark areas in the
image compared to the noise levels present
when using the CRR mode, but, dynamic
range is also reduced further.
6. ICR DVR TOOL
Ideal setting with IC Realtime DVR series.
7. RS-485..
*How to control OSD menu over RS485:
“PRESET” key or “IRIS OPEN” key.
OFF : Default Setting.
EDGE SERIES : EDGE series
MAX SERIES : MAX series
FLEX SERIES : FLEX series
ELITE SERIES : ELITE series
CAMERA# : Available to set up from 1 to 255.
PROTOCOL : Supports PELCO-D.
BAUD RATE : Select a baud rate.(2400, 4800, 9600,
19200)
RETURN. Move to MAIN MENU.
1) Set communication speed on the camera to 9600bps.
2) Accord the ID of the camera with the DVR or PTZ
controller. The factory default ID of the camera is
“CAM1”.
3) On the DVR or PTZ controller, press 95 then press
4) When the MAIN MENU pops up on the screen, move
the cursor using a joystick to the desired menu to
control. When entering a Sub menu, press “IRIS
OPEN” momentarily.

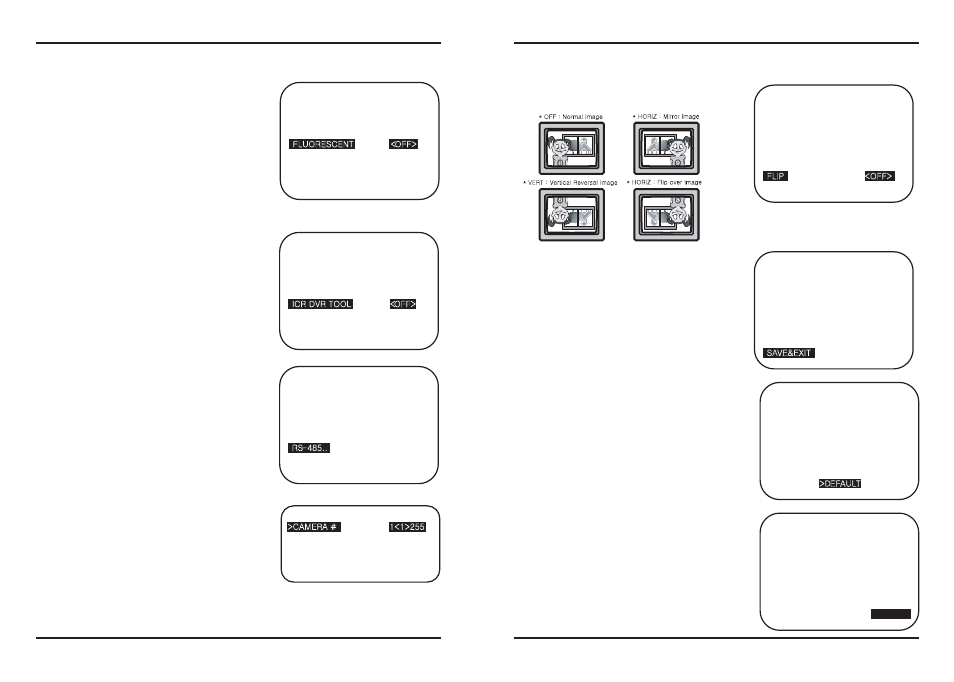

ICREALTIME
WDR CONTROL MEDIUM
BLC OFF
AGC NORMAL
WHITE BALANCE ATW
>FLUORESCENT
ICR DVR TOOL OFF
RS-485..
FLIP OFF
SAVE&EXIT DEFAULT CANCEL
ICREALTIME
WDR CONTROL MEDIUM
BLC OFF
AGC NORMAL
WHITE BALANCE ATW
FLUORESCENT OFF
>ICR DVR TOOL
RS-485..
FLIP OFF
SAVE&EXIT DEFAULT CANCEL
ICREALTIME
WDR CONTROL MEDIUM
BLC OFF
AGC NORMAL
WHITE BALANCE ATW
FLUORESCENT
ICR DVR TOOL
>RS-485..
FLIP OFF
SAVE&EXIT DEFAULT CANCEL
RS485 SETUP
>CAMERA # 1<1>255
PROTOCOL PELCO-D
BAUD RATE 9600
RETURN
8. FLIP
Adjustable to OFF, HORIZ, VERT, BOTH.
9. SAVE&EXIT
Saves the current settings and exits the menu.
10. DEFAULT
All the settings will be restored to the factory default.
Note.
RS-485 settings are not initialized.
11. CANCEL
Not saves the current settings and exits the menu.
ICREALTIME
WDR CONTROL MEDIUM
BLC OFF
AGC NORMAL
WHITE BALANCE ATW
FLUORESCENT OFF
ICR DVR TOOL OFF
RS-485..
>FLIP
SAVE&EXIT DEFAULT CANCEL
ICREALTIME
WDR CONTROL MEDIUM
BLC OFF
AGC NORMAL
WHITE BALANCE ATW
FLUORESCENT OFF
ICR DVR TOOL OFF
RS-485..
FLIP OFF
>SAVE&EXIT DEFAULT CANCEL
ICREALTIME
WDR CONTROL MEDIUM
BLC OFF
AGC NORMAL
WHITE BALANCE ATW
FLUORESCENT OFF
ICR DVR TOOL OFF
RS-485..
FLIP OFF
SAVE&EXIT >DEFAULT CANCEL
ICREALTIME
WDR CONTROL MEDIUM
BLC OFF
AGC NORMAL
WHITE BALANCE ATW
FLUORESCENT OFF
ICR DVR TOOL OFF
RS-485..
FLIP OFF
SAVE&EXIT DEFAULT >CANCEL
