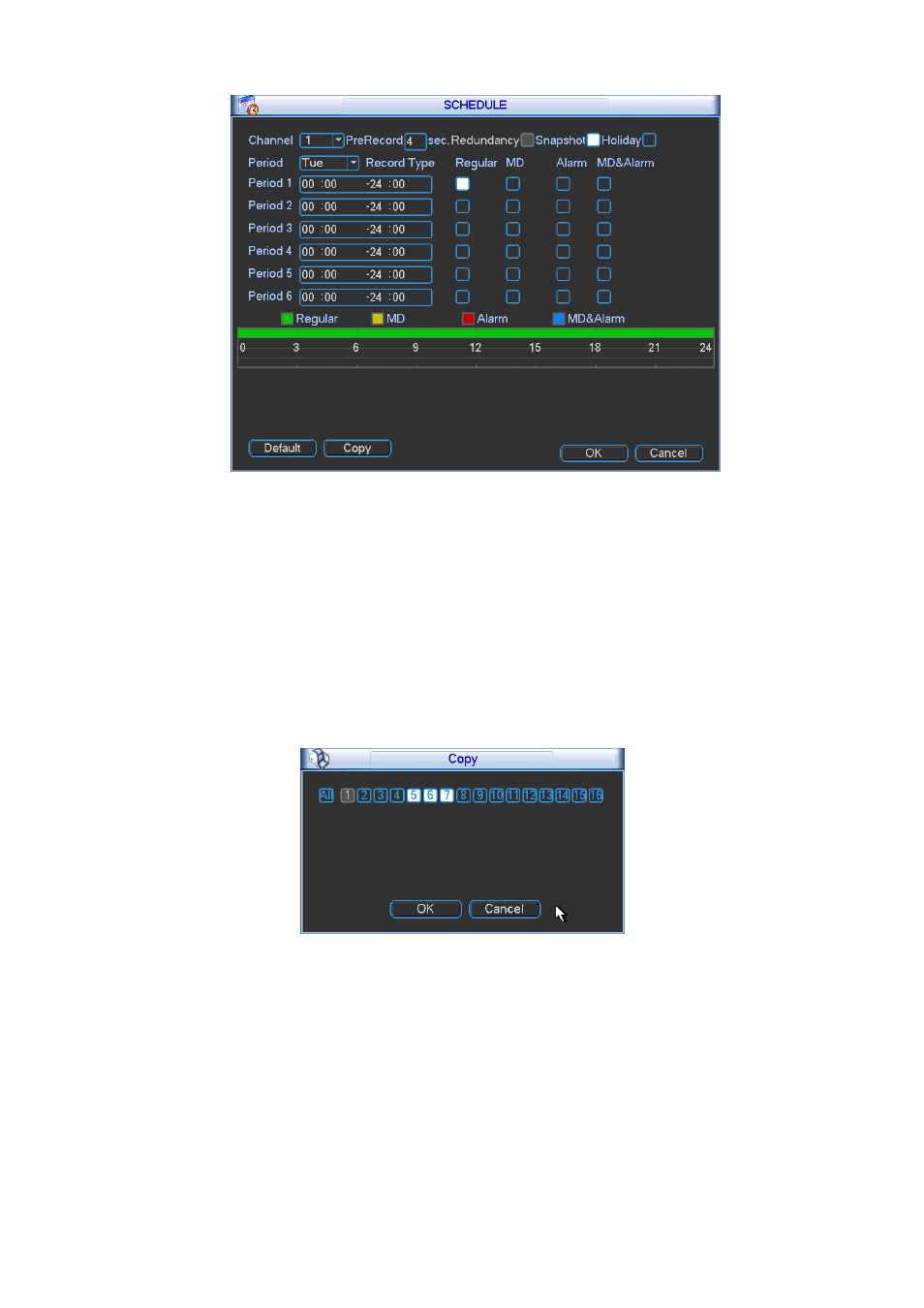

Figure 4-30
4.6.3.1 Quick Setup
Copy function allows you to copy one channel setup to another. After setting in channel 1, click
Copy button, you can go to interface Figure 4-31. You can see current channel name is grey such
as channel 1. Now you can select the channel you wan to paste such as channel 5/6/7. If you wan
to save current setup of channel 1 to all channels, you can click the first box “ALL”. Click the OK
button to save current copy setup. Click the OK button in the Encode interface, the copy function
succeeded.
Please note, if you select ALL in Figure 4-31, the record setup of all channels are the same and
the Copy button becomes hidden.
Figure 4-31
4.6.4 RS232
RS232 interface is shown as below. There are five items. See Figure 4-32.
z
Function: There are various devices for you to select. Console is for you to use the COM or
mini-end software to upgrade or debug the program. The control keyboard is for you to
control the device via the special keyboard. Transparent COM (adapter) is to connect to the
PC to transfer data directly. Protocol COM is for card overlay function. Network keyboard is
for you to use the special keyboard to control the device. PTZ matrix is to connect to the
peripheral matrix control.
z
Baud rate: You can select proper baud rate.
