DISCHARGE
DISTRIBUTION DUCT
AIR
FIGURE #6
INSULATION
FRESH AIR FLOW
DIRECT GAS FIRED MAKE-UP AIR HEATERS
LOUVERED INLET
w/ FILTER SECTION
DAMPER
BURNER SECTION BURNER
PANEL
CONTROL
BLOWER SECTION
PROFILE PLATE
UNIT MUST BE LIFTED AND HANDLED WITH THESE HOLES WHEN MOVING UNIT INTO POSITION TO BE SUSPENDED FROM CEILING.
THESE HOLES ARE PROVIDED TO ALLOW
SUSPENSION RODS TO BE INSERTED THRU
THE BASERAIL SO THAT THE UNIT MAY
BE SUSPENDED FROM THE CEILING.
5/8"
Ø
(FOR LARGE UNITS
CONSULT FACTORY
FOR HOLE SIZE)
LIFTING LUG DETAIL
DRW. NO. JOB NO.
REV
DATE
DRAWN BY CHK. BY TITLE
SCALE
ISSUED BY

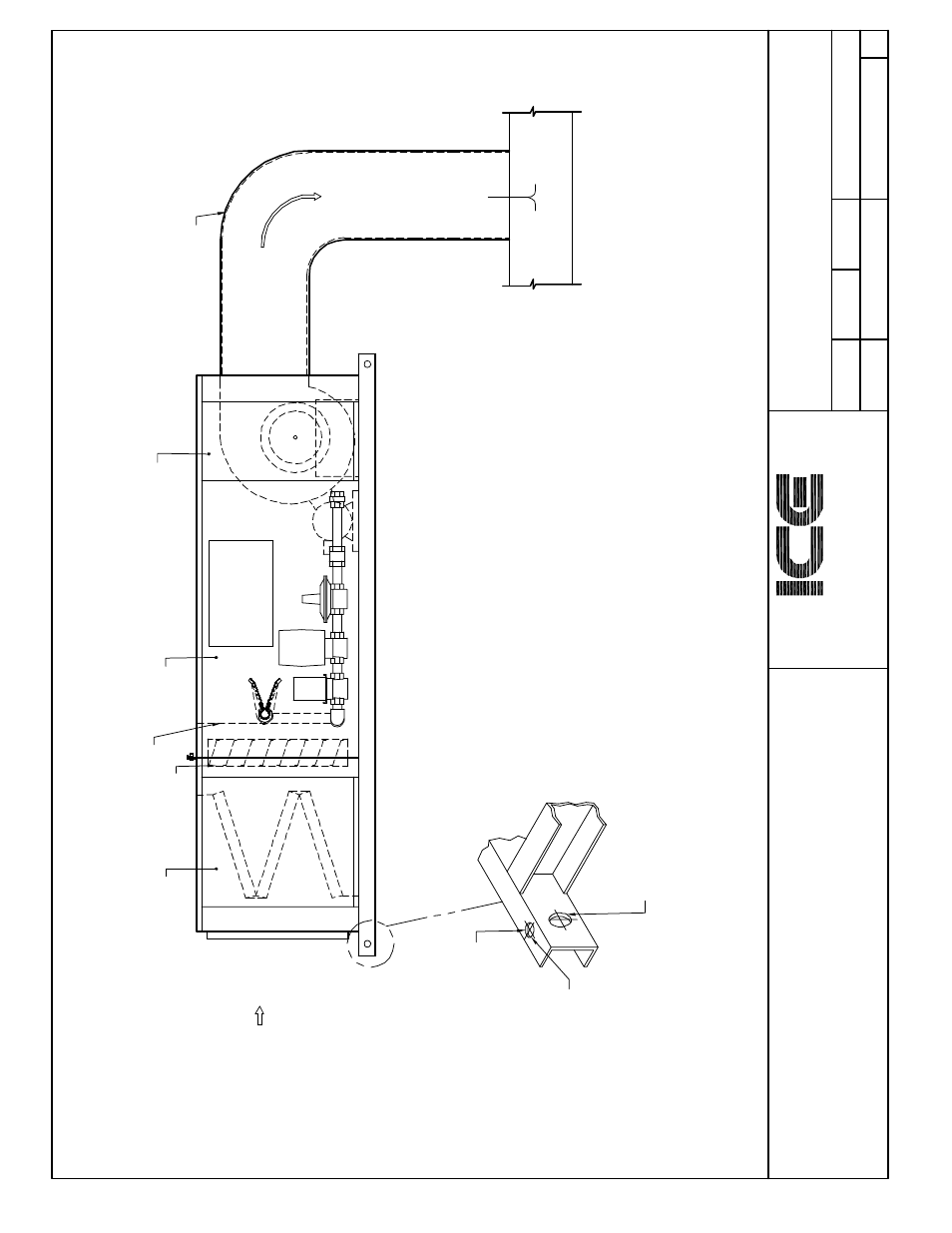

DIRECT GAS FIRED MAKE-UP AIR HEATERS SUSPENSION HOLES DETAIL FOR INDOOR UNIT
BMA
SERIES
JV JS
DEC 20/2000
NTS
FIG. 6
-
21
JV
