305
Handling the Unexpected
Fuses Fuse Locations

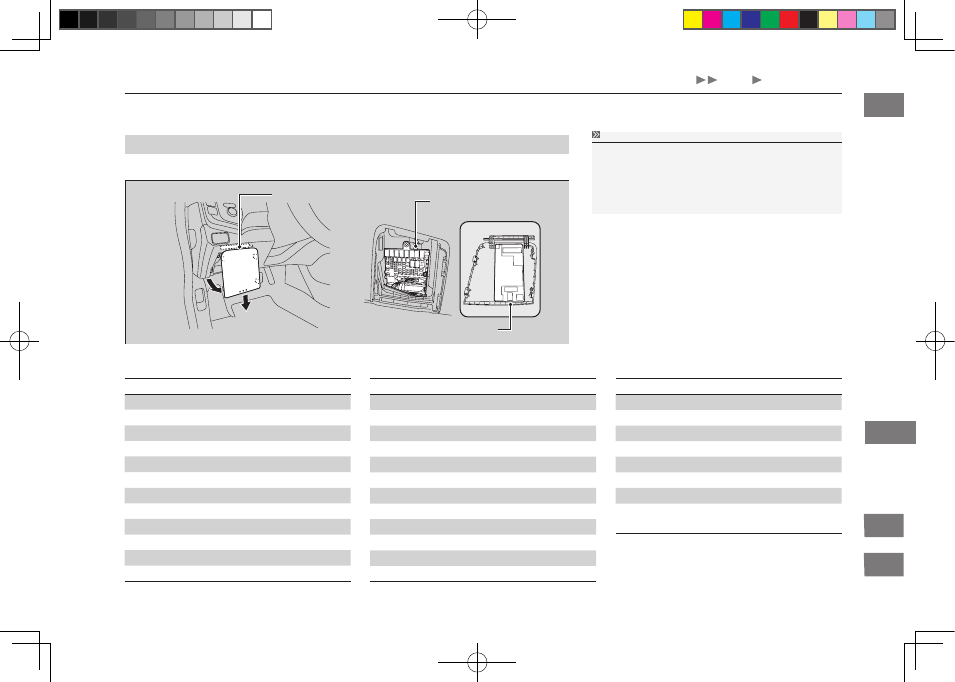

Interior Fuse Box ■
Located under the driver side dashboard.
Circuit Protected and Amps for Each Fuse ■
Fuse Locations
Fuse locations are shown on the label on the back
side of the cover.
Locate the fuse in question by the fuse number and
label number.
Label
Fuse Box
Cover
Circuit Protected Amps
1 Back Up 15 A
2 TPMS* 1 7.5 A
3 Driver’s Power Window 20 A
4 - -
5 Back-Up Light 10 A
6 SRS 10 A
7 Transmission* 2 10 A
8 SRS 7.5 A
9 Fog Light* 20 A
10 A/C 7.5 A
11 ABS/VSA ® 7.5 A
12 IMA 10 A
Circuit Protected Amps
13 Accessory Power Socket 20 A
14 Radio 7.5 A
15 Daytime Running Lights 7.5 A
16 Rear Wiper 10 A
17 Passenger’s Power Window 20 A
18 - -
19 - -
20 Fuel Pump 15 A
21 Washer 15 A
22 Meter 7.5 A
23 Hazard 10 A
24 Stop/Horn 10 A
Circuit Protected Amps
25 Audio AMP* 20 A
26 LAF 10 A
27 Door Lock Main 20 A
28 Headlight Main 20 A
29 Small Light 10 A
30 Main Fan Motor 30 A
31 IGPS 7.5 A
32 Right Headlight Low* 3
Right Headlight Low (HID)* 4
10 A
15 A
*1: U.S. models only
*2: Automatic transmission (CVT)
*3: Vehicle with halogen bulb low beam headlights
*4: Vehicle with discharge headlights
continued
* Not available on all models
