HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED

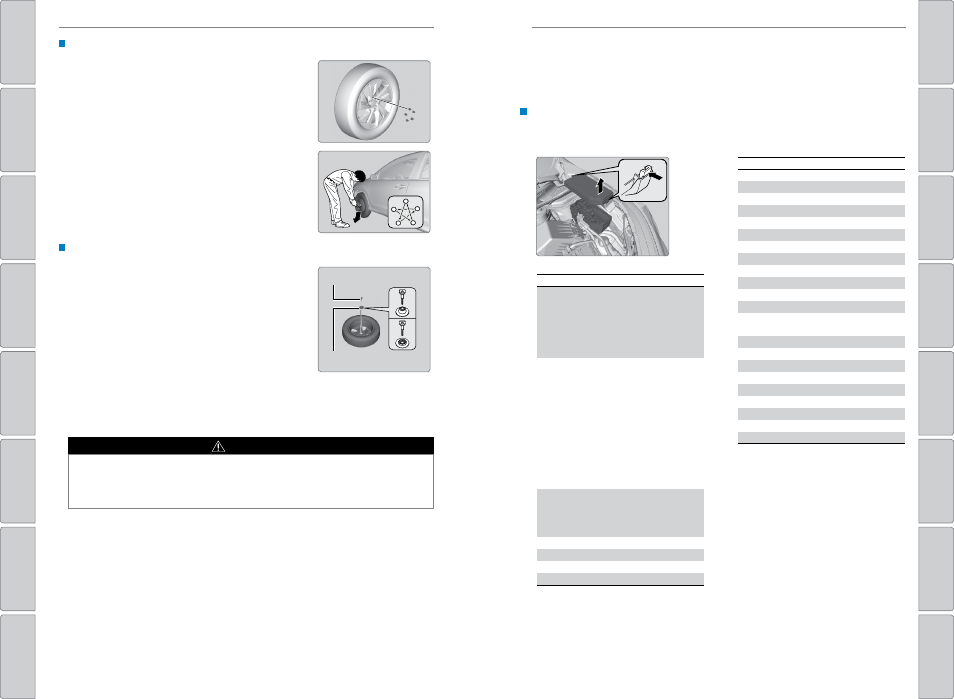

Replacing the Flat Tire
1. remove the wheel nuts and flat tire.
2. Mount the compact spare tire. replace the
wheel nuts, and lightly tighten them.
3. Lower the vehicle and remove the jack. Tighten
the wheel nuts in the order indicated in the
image. Go around, tightening the nuts, two to
three times in this order. Do not overtighten the
wheel nuts.
If you drive with the spare tire installed, the
low tire pressure/TPMS indicator appears. The
indicator stays on until a regular tire is installed.
Storing the Flat Tire
1. remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing bolt, flip
it over, and insert it back on the bolt. Secure the
flat tire with the wing bolt.
4. Securely store the wheel nut wrench and jack
handle bar back in the tool bag. Store the bag in
the cargo area.
5. Store the jack in its holder. Turn the jack’s end
bracket to lock it in place.
Wing bolt
Spacer
cone
For compact
spare tire
For full-size tire
Loose items can fly around the interior in a crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely before driving.
WARNING
Fuse Locations
If any electrical devices are not working, turn the vehicle off and check to see if any
applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the
fuse in question by the fuse number and box cover number.
Engine Compartment Fuse Box
Located under the hood near the brake fluid reservoir. Push the tabs to open the
box.
8
9
VSA ECU
7.5 A
10
(7.5 A)
11
STRLD
7.5 A
12
(20 A)
13
Premium Amp
*
(20 A)
14
15
Hazard
10 A
16
17
IG Coil
15 A
18
19
Daytime Running Lights
(10 A)
20
Passenger’s Power Seat
Reclining
(20 A)
21
Deicer
(15 A)
22
23
IGP
15 A
24
25 Right Headlight Low Beam
10 A
26
27
MG Clutch
7.5 A
28
29
Backup
10 A
Circuit Protected
Amps
7.5 A
10 A
10 A
15 A
15 A
10 A
20 A
7.5 A
Sub Fan Rly CL
Horn
Stop
IGP2
DBW
Left Headlight Low Beam
SMALL
Interior Lights
Heated Door Mirror
*
Front Fog Lights
*
Circuit Protected
Amps
1
EPS
70 A
Power Tailgate
(40 A)
ABS/VSA FSR
20 A
ABS/VSA Motor
40 A
E-DPS
*
(30 A)
Main Fuse
120 A
2
Main
50 A
Fuse Box Main
Fuse Box Main 2
60 A
Headlight High Beam Main
ST Magnetic Switch
(30 A)
Rear Defogger
−
Heater Motor
Front Wiper Main
Sub Fan Motor
Main Fan Motor
3
DC/DC1
(30 A)
DC/DC2
(30 A)
IG MAIN
(30 A)
IG MAIN2
(30 A)
4
5
−
−
6
7
−
−
60 A
30 A
30 A
−
40 A
30 A
20 A
20 A
−
−
−
−
*if equipped
Tab
