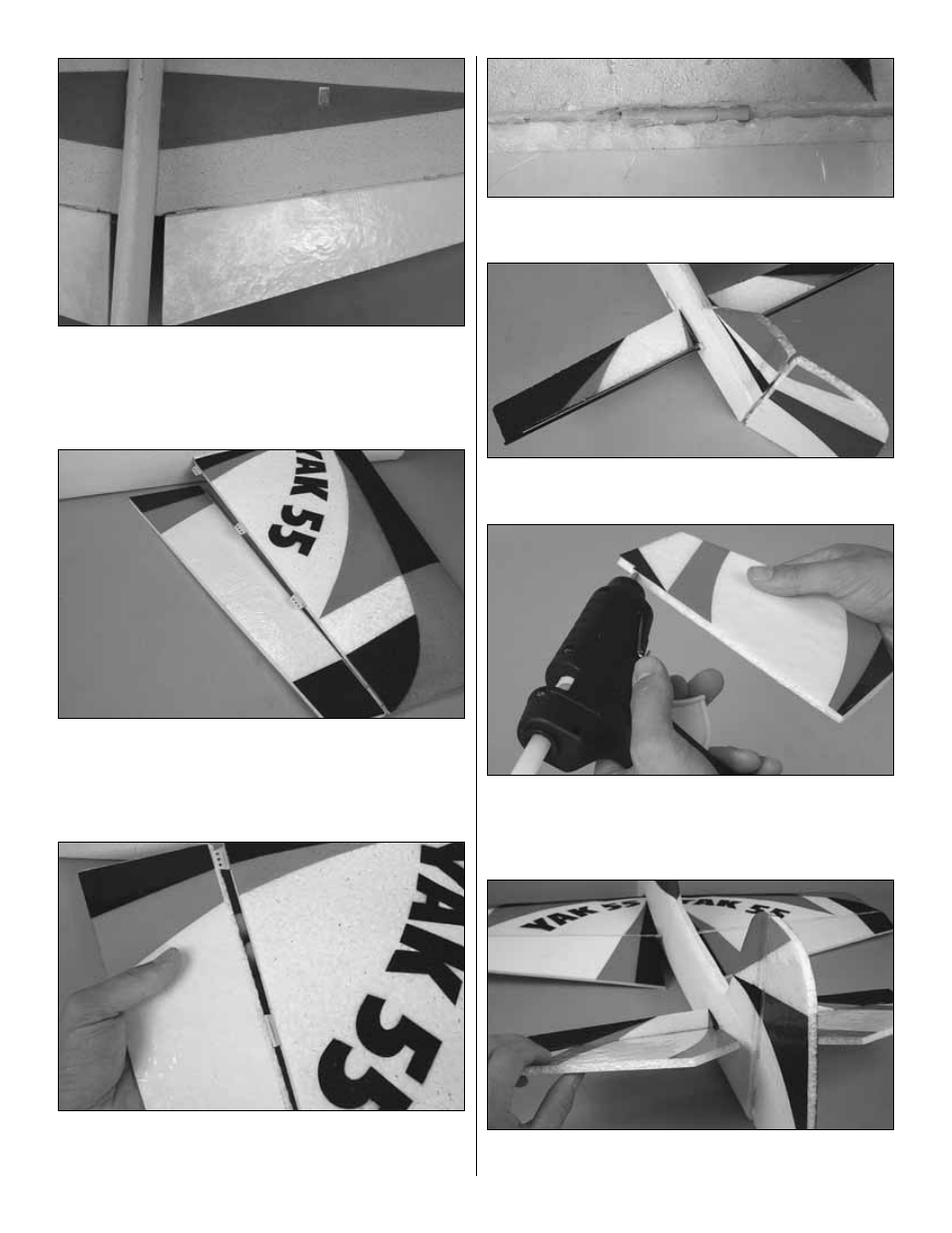

6. Test fit the ailerons to the wings. If necessary, enlarge
the precut hinge slots with a hobby knife.
❏
7. Glue the outermost hinge into the wing, making sure
to keep the hinge line parallel with the TE of the wing.
❏
8. Using the flex of the aileron to allow you to glue one
hinge in at a time, work your way inward until all four hinges
are glued in place.
❏
9. Use a hobby knife to clean any excess glue from
the hinges.
❏
10. Slide the 3mm [1/8"] carbon elevator joiner tube into
the plastic tubes on the stabilizer. Make sure it is centered.
❏
11. Run a small bead of hot-melt glue into the groove on
the leading edge of an elevator half. Run the glue-gun tip
back through the bead to re-melt and spread it, and press
the elevator half onto the joiner tube.
❏
12. Repeat the previous step with the other elevator half,
making sure to keep the elevator halves aligned with each other.
