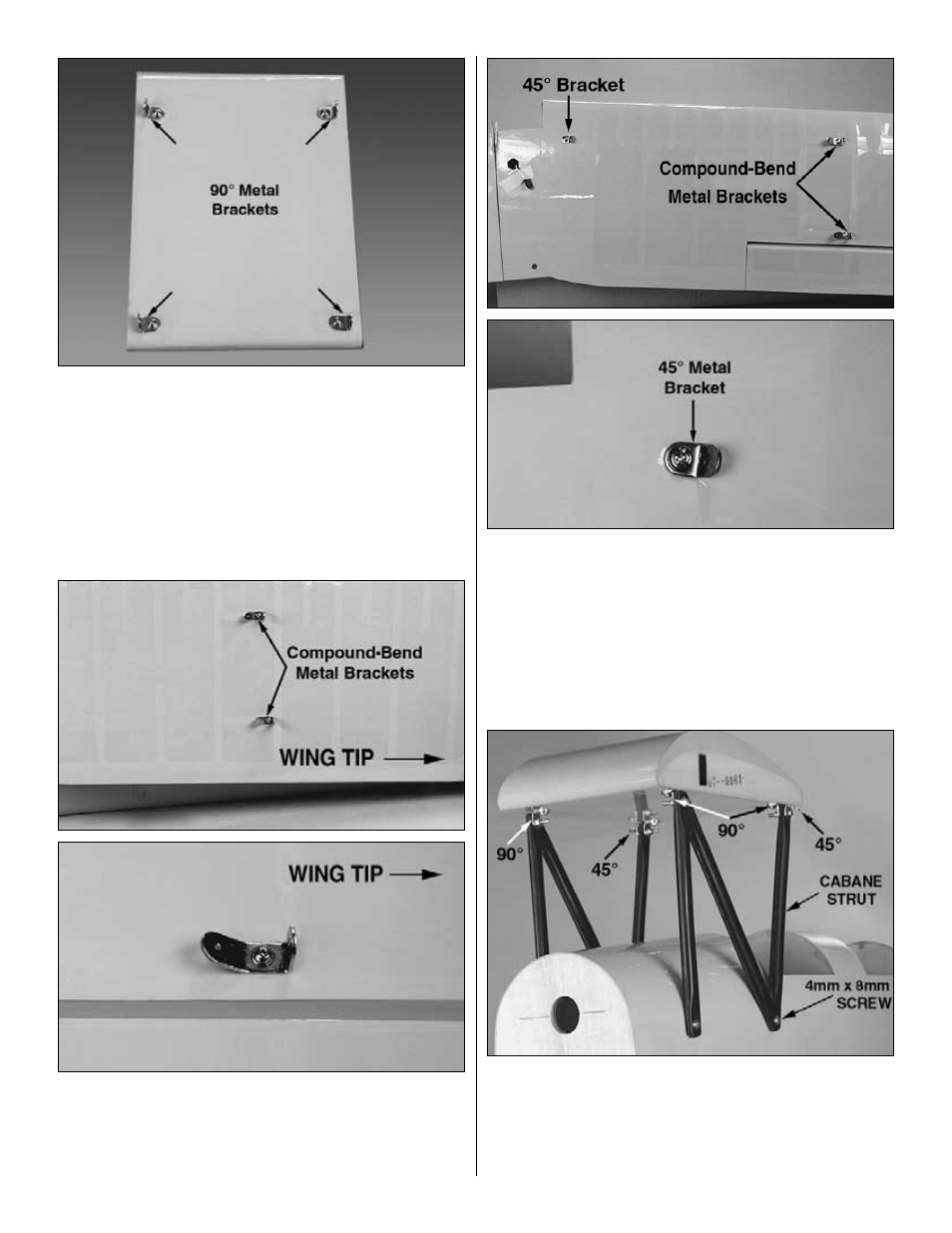

9. Install four 90-degree metal brackets into the

pre-drilled holes in the bottom of the top wing center section
with 3mm x 12mm wood screws.

❏

10. Locate the pre-drilled holes in the bottom of the top

wing panels. Mount the four compound-bend metal
brackets (two in each wing panel) using 3mm x 12mm wood
screws. The interplane struts and flying wires will attach to
them in a later step.

❏

11. Locate the pre-drilled holes in the top of the bottom

wing and install the four compound-bend metal brackets in
place. Install two 45-degree metal brackets in the pre-drilled
holes near the center of the wing with 3mm x 12mm wood
screws as shown in the photo.

❏

12. Attach the bottom wing to the fuselage, using two

1/4”-20 nylon wing bolts.

❏

13. Mount the cabane struts to the fuselage using the

following procedure: Locate the four pre-drilled holes in the
fuselage for mounting the Cabane Struts and saturate the
holes with thin CA to harden the wood. After the CA cures,
mount the Cabane Struts as shown in the photo, using four
4mm x 8mm wood screws (supplied).
