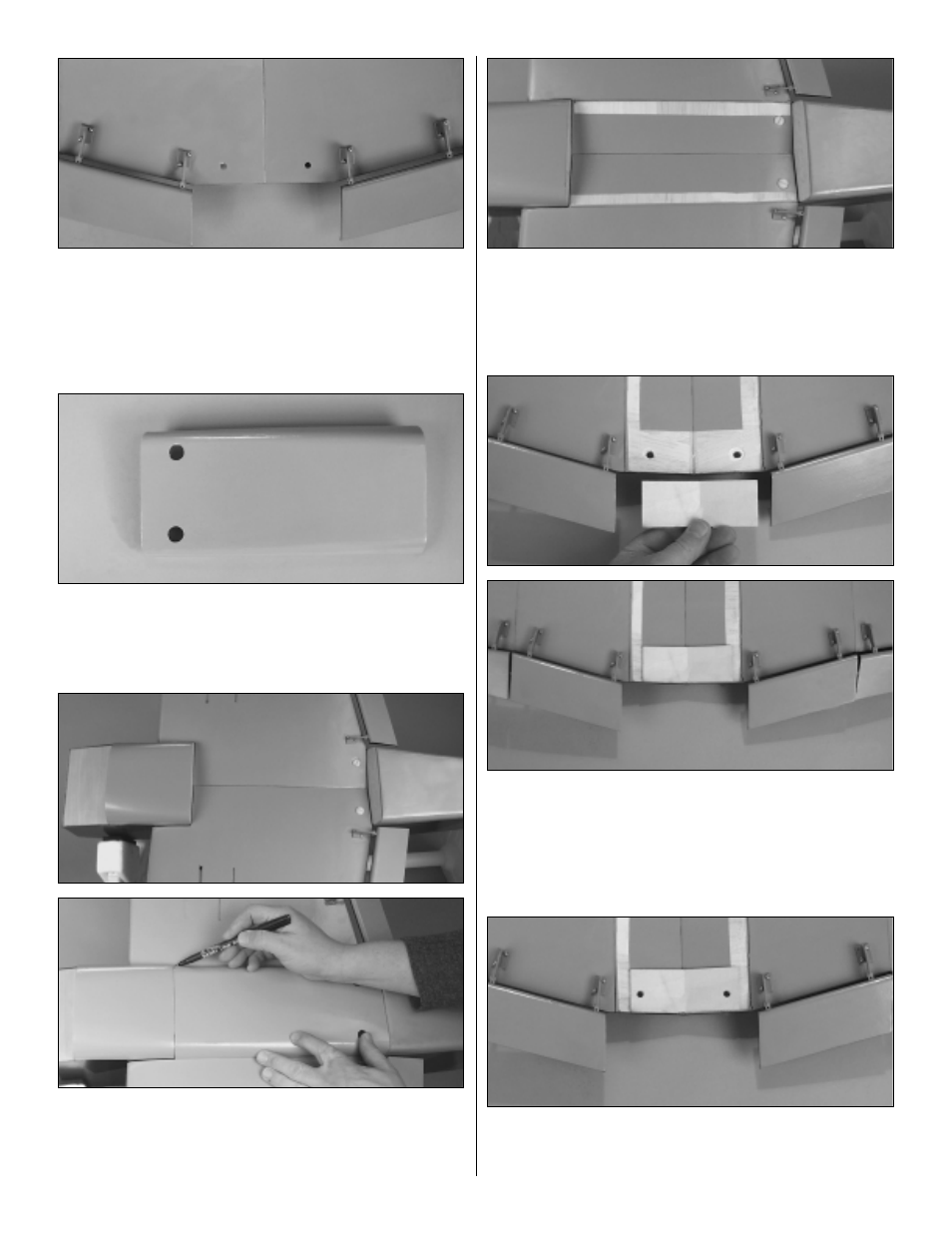

28. After the glue has cured, cut away the covering on the
top and bottom of the wing at the trailing edge of the wing to
expose the two holes for the nylon wing bolts to pass
through.
❏
29. Locate the wing fairing. Cut away the covering to
expose the two holes for the wing bolts.
❏
30. Mount the wing onto the fuselage with the nylon wing
bolts. Set the wing fairing onto the wing in line with the
fuselage. Draw a line on each side of fairing. Then remove
the fairing and the wing.
❏
31. Cut away a 1/2" [13mm] strip of covering inside each
of the lines you have drawn. Be careful not to cut into the
surface of the wing sheeting. This could weaken the
structure of the wing.
❏
32. Locate the plywood wing bolt plate. Flex it to fit it to
the trailing edge of the wing. Draw a line on the covering to
mark the location of the wing bolt plate. Then cut the
covering away and glue the wing bolt plate to the wing with
6-minute epoxy.
❏
33. After the glue has cured, turn the wing over. Use a
17/64" [6.7mm] drill bit to drill through the holes from the top
of the wing, drilling through the wing bolt plate.
11
