6
24
24
16
4
17
18
22
23 21
7
7
1
3
5
2
1
13
12
19
6
14
11
10
15
8
9
20
1 Wing with Ailerons
2 Fuselage
3 Stab with Elevators
4 Fin with Rudder
5 Cowl
6 Cowl Ring
7 Wheel Pants
8 Rudder Fairing
9 Turtledeck
10 Fin Fairing
11 Stab Fairings
12 Wing Bolt Plate
13 Forward Wing Joiners
14 Wing Struts
15 Dorsal Fin
16 Engine Mount
17 Fuel Tank
18 Cockpit Coaming
19 Main Landing Gear
20 Tailgear
21 Aft Wing Joiner
22 Forward Servo Tray
23 Aft Servo Tray
24 Main Wheels
(1) 2-3/4" [70mm] spinner
(2) Decal sheets
(1) CA hinge strip
(2) 2-56 x 6" [150mm] pushrods (ailerons)
(4) Large control horns (ailerons, elevators)
(38) #2 x 1/2" [13mm] screws
(2) Nylon Faslinks (ailerons)
(3) Nylon clevises (ailerons - 2, throttle - 1)
(7) Silicone clevis retainers (clevises)
(8) 1/8" [3mm] flat nylon straps (main LG)
(4) 3 x 6mm socket head cap screws (LG axles)
(4) 5mm wheel collars (main wheels)
(4) 3mm set screws for wheel collars
(2) 4-40 x 36" [910mm] wire pushrods (elevators)
(4) 2-56 x 3/4" [19mm] screws (elev cntrl horns)
(2) Large metal solder clevises (elevators)
(2) 4-40 metal threaded clevises (elevators)
(2) 4-40 nuts (for clevises)
(1) 6-32 x 1-1/2" [38mm] threaded rod (rudder)
(2) 4-40 nylon torque rod horns (rudder) (2) 1/8" [3mm] nylon hump straps (tail gear)
(1) 36" [910mm] gray inner pushrod tube (tail
gear, antenna tube)
(1) 3/16" x 36" [910mm] pshrd tube (tail steering)
(1) 2-56 x 36" [910mm] wire pshrd (tail steering)
(2) brass screw-lock connector body
(2) 4-40 x 1/8" [3mm] screws (for screw-lock)
(2) nylon retainers (for screw-lock)
(1) nylon ball link (tail steering)
(1) 0-80 threaded ball (tail steering)
(1) 0-80 nut (for threaded ball)
(2) 1/4-20 blind nuts (factory installed)
(2) 1/4-20 x 2" [50mm] nylon wing bolts
(8) #4 x 5/8" [16mm] scrws (cwl mnt, wing struts)
(4) #4 washers (cowl mounting)
(4) #4 lock washers (cowl mounting)
(6) #2 washers (servo tray)
(1) 2-56 x 18" [460mm] wire pushrod (throttle)
(1) 3/16" x 12" [21 x 305mm] pushrod tube
(1) 1/4" x 1/2" x 6" [6 x 13 x 150mm] balsa stick
(2) 1/4" x 3/8" x 6-1/4" [6 x 10 x 160mm]
hardwood sticks
(2) Axles
(4) 1/32" x 3/4" [1 x 20mm] plywood discs
(8) 8-32 x 1" [25mm] socket head cap screws
(4) #8 washers (engine mount)
(8) #8 lock washers (eng mnt, eng mounting)
(4) 8-32 blind nuts (engine mount)
(4) Cowl mount blocks
(2) Windscreens
(2) Wing dowels
Rudder pull/pull components:
(1) Metal cable
(4) copper swages
(4) 2mm metal clevises
(4) 2mm brass couplers
(4) 2mm nuts
(4) silicone clevis retainers

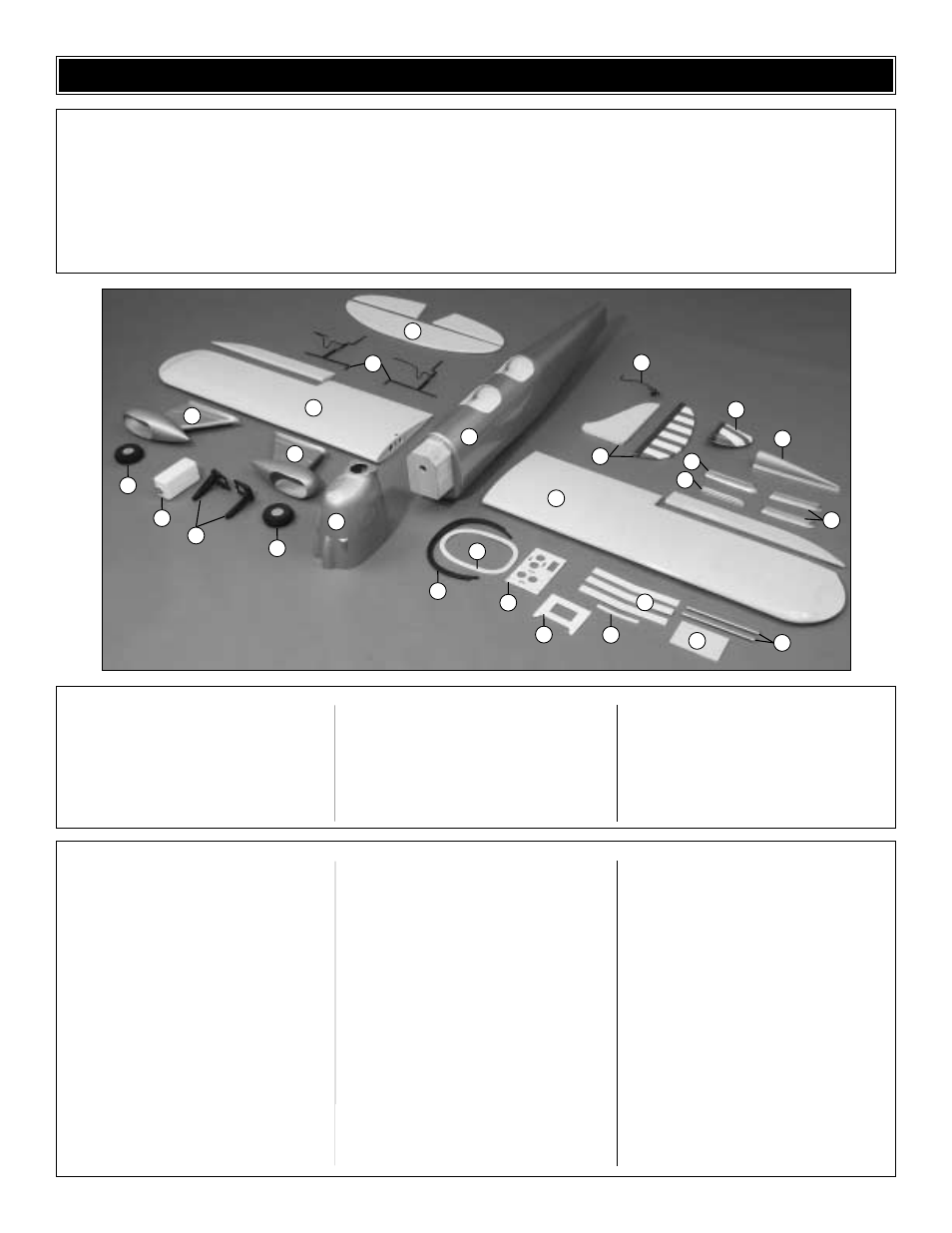

Kit Contents (Photographed)
Kit Contents (Not Photographed)
Before starting to build, use the Kit Contents list to take an inventory of this kit to make sure it is complete and inspect
the parts to make sure they are of acceptable quality. If any parts are missing or are not of acceptable quality, or if you
need assistance with assembly, contact Great Planes Product Support. When reporting defective or missing parts, use
the part names exactly as they are written in the Kit Contents list on this page.
Great Planes Product Support:
Phone: (217) 398-8970
Fax: (217) 398-7721
E-mail: [email protected]
KIT CONTENTS
