9
❏

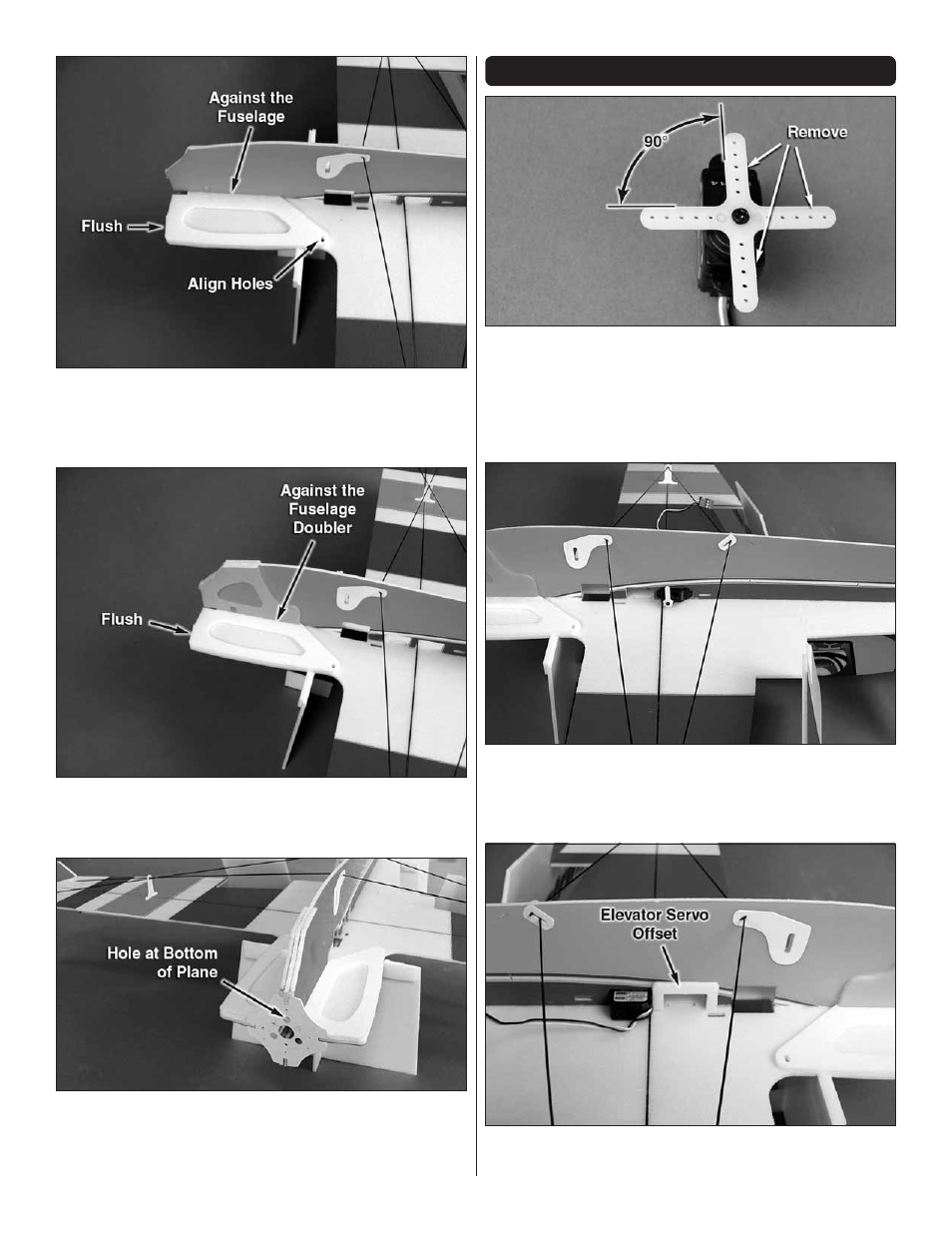

22. Turn the plane upside down and glue the two horizontal
fuselage doublers to the front of the fuselage. Make sure
they are fl ush with the front of the fuselage and against the
vertical fuselage.
❏
23. Glue the two vertical fuselage doublers to the front
of the fuselage. Make sure they are fl ush with the front of the
fuselage and against the horizontal fuselage doublers.
❏
24. Glue the motor mount to the front of the fuselage. Apply
a bead of glue to the joint on all sides of the fuselage and motor
mount. Take note of the orientation of the three large holes.
RADIO INSTALLATION
❏
1. Connect the rudder servo to your receiver. Remove the
servo screw from the servo and install a large servo arm onto
the servo. Center the trims on the transmitter. Position the
servo arm so that one arm is perpendicular to the centerline
of the servo. Use diagonal pliers to remove the three extra
servo arms.
❏
2. Install the rudder servo by placing it into the aft servo
mount location with the output shaft towards the front of the
fuselage. Glue the servo in place with foam safe CA. Be careful
not to get any glue inside the servo case.
❏
3. Use foam-safe CA to glue the elevator servo offset
around the elevator servo mounting hole.
