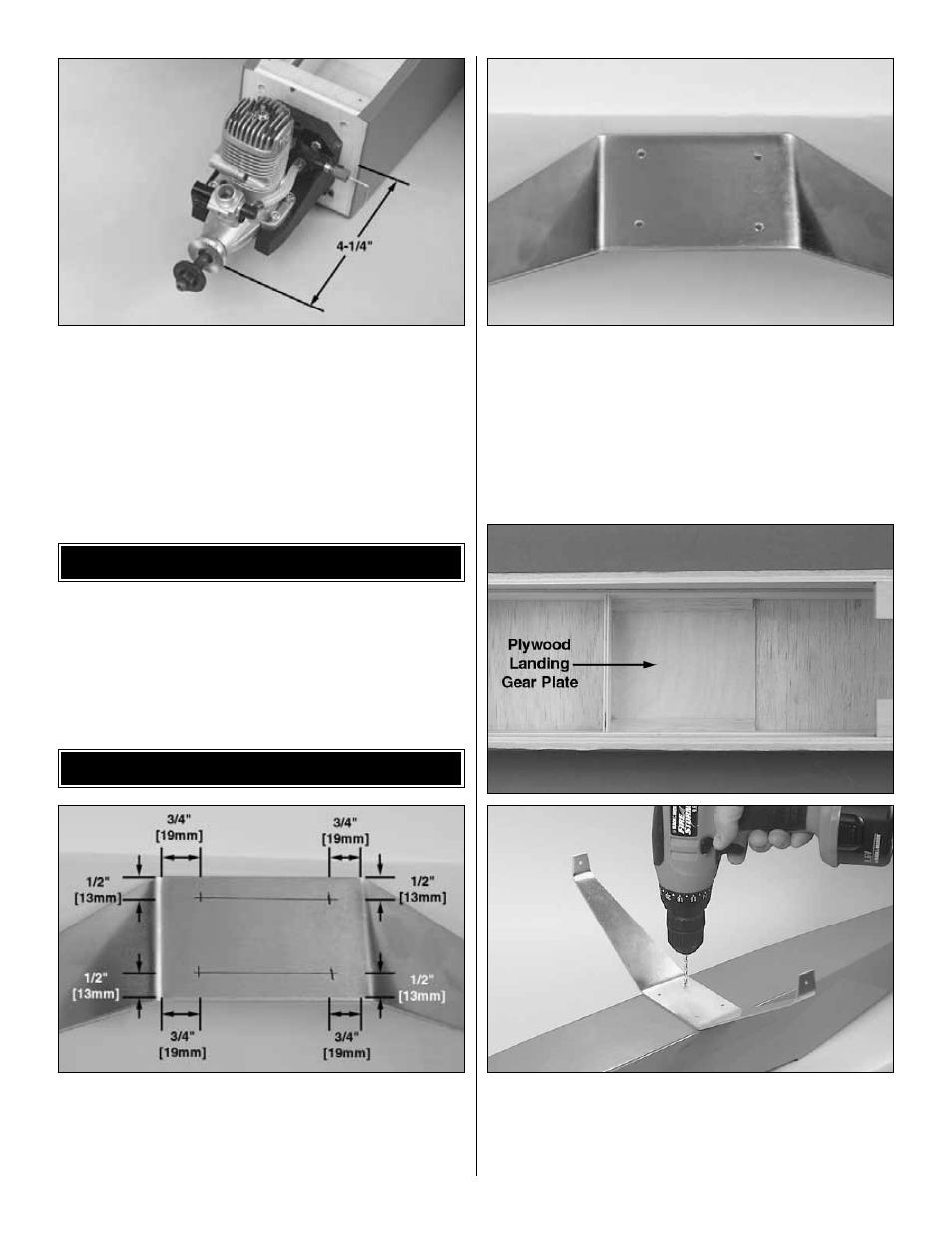

5. Position the engine on the engine mount. Adjust the
mount as needed for your engine. Position the engine 4-1/4"
(106mm) from the front of the thrust washer to the firewall.
❏
6. Use a #36 (2.8mm) drill bit and drill the four mounting
holes for the engine into the engine mount. After the holes
have been drilled, tap them with a 6-32 tap. The Great
Planes Dead Center
™ (GPMR8130) Engine Mount Hole
Locator works really well for this task.
❏
1. Install the back plate, prop and prop washer onto the
engine crankshaft. Tighten the nut to hold everything in place.
❏
2. Screw the spinner onto the backplate.
❏
1. Locate the aluminum landing gear. Make a line 1/2"
(13mm) from the leading and trailing edge of the center portion
of the landing gear. Make four marks 3/4" (19mm) from the
bend of the gear. Where the lines intersect is the point where
you are going to drill the hole for the mounting bolts.
❏
2. Drill four 5/32" (4mm) holes in the landing gear on the
four marks you just made.
❏
3. Locate the aluminum landing gear under the plywood
landing gear plate. Center the landing gear over the
plywood plate. Then, using the landing gear as a template,
drill a 5/32" (4mm) hole through the fuselage in each of the
four holes in the landing gear.
MOUNT THE LANDING GEAR
PROP AND SPINNER INSTALLATION
11
