15
❏

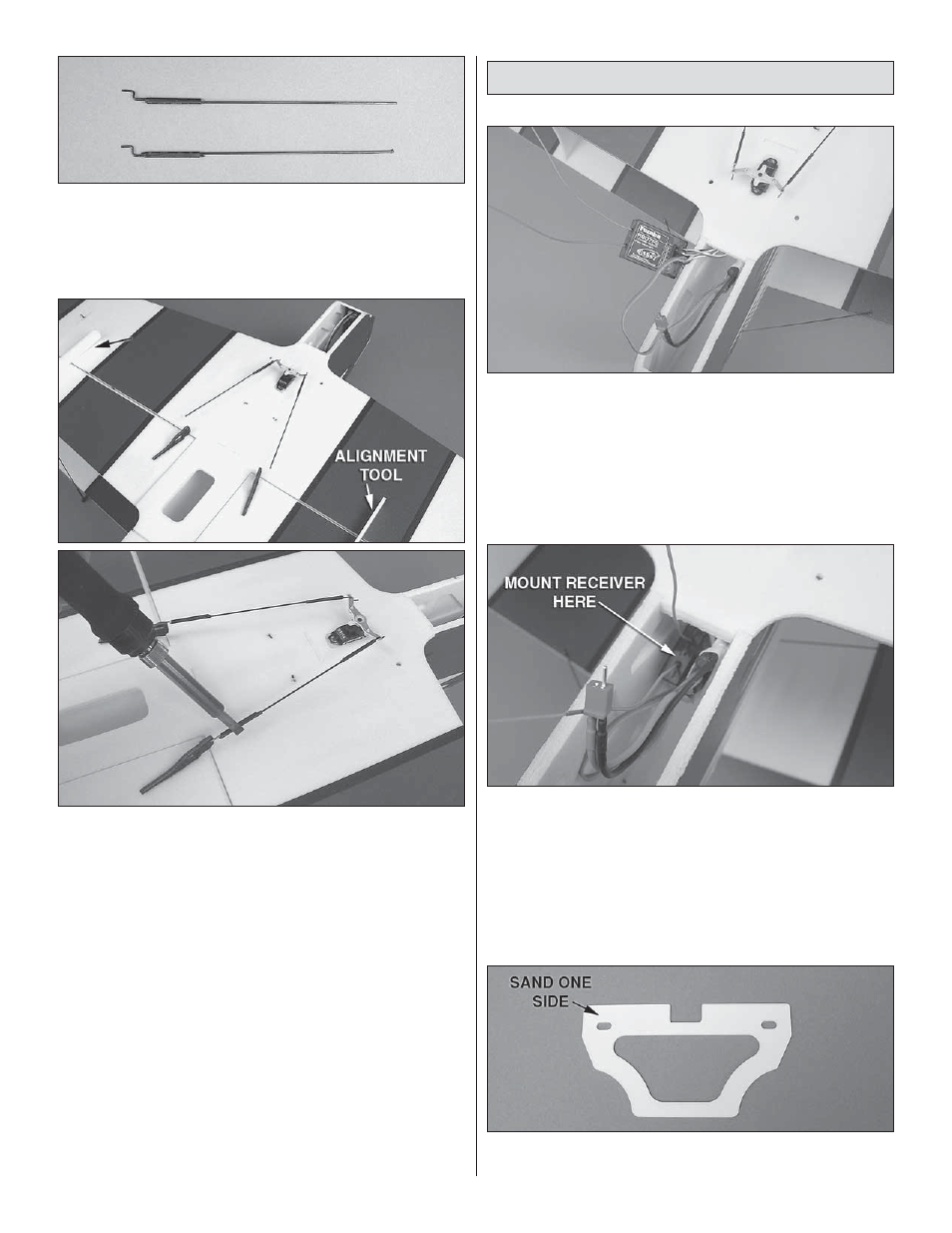

5. Locate the two 1 x 112mm carbon aileron pushrods,
four pieces of heat shrink tubing, and the remaining four
Z-bends. Assemble one end of the pushrods as shown.
❏
6. Install one control surface alignment tool on each aileron.
❏
7. Fit the pushrods to the servo arm. Fit the remaining
Z-bends to the aileron control horns and slide a piece of
heat shrink tubing onto the carbon rods. Shrink the tubing
with a hot soldering iron, making sure that your ailerons stay
centered in the process.
❏
8. Install the aileron servo arm screw.
Install the Radio, Landing Gear & Propeller
❏
1. Plug your elevator, aileron, and rudder servos into their
proper channels. Plug the ESC signal lead into the receiver.
❏
2. Cut a 1" [25mm] long piece of hook and loop material.
Stick the hook side (fuzzy side) to the back side of your receiver.
Mount the receiver just ahead of the LE of the lower wing.
❏
3. Locate the landing gear doubler plate. Roughen one
surface of the doubler plate using 150-grit sandpaper.
