15

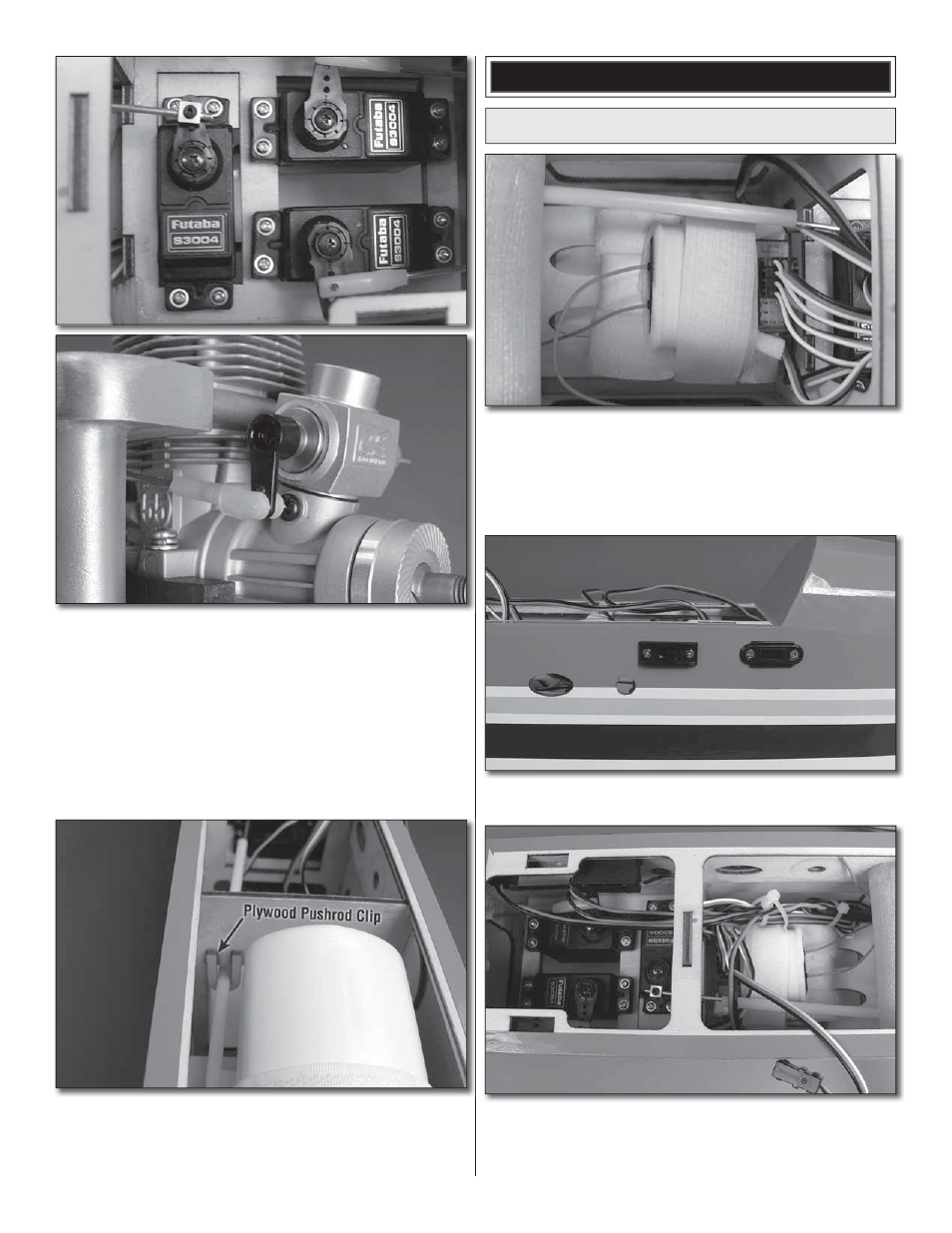

13. Thread a nylon clevis with silicone clevis retainer

onto the 17-1/2" [445mm] pushrod. Insert the pushrod
into the outer pushrod tube. The aft end of the pushrod
should pass through the screw-lock connector. Attach the
clevis to the throttle arm. Adjust the pushrod position in the
connector so that the throttle servo properly opens and
closes the carburetor. When satisfi ed, tighten the set screw
in the connector against the pushrod and cut off the excess

pushrod behind the connector. Use the radio system to test
the operation of the throttle.

14. Use the plywood pushrod clip to secure the outer

pushrod tube to the fuselage former in the location shown.

Thoroughly glue the clip in place. Apply some CA glue where

the outer pushrod tube passes through the fi rewall.

FINISH THE MODEL

Install the Receiver and Battery

1. Wrap your receiver and receiver battery pack in foam

rubber. Make a strap from the remainder of the included
hook and loop material to fi t both of the components when
stacked. Strap the receiver and pack to the tray as shown.
Connect the rudder, elevator and throttle servos to the
receiver. Connect a Y-harness to your aileron channel.

2. Mount your switch harness and charge jack to the

fuselage side in the location that you prefer.

3. The remaining piece of heat shrink should be used for

the connection between your receiver battery and switch
harness. Use tie straps (not included) or something similar
to bundle the excess servo wires out of the way of the servos.
