2. You must assemble the model according to the instructions .
Do not alter or modify the model, as doing so may result in an
unsafe or unfl yable model. In a few cases the instructions may
differ slightly from the photos. In those instances the written
instructions should be considered as correct.
3. You must take time to build straight, true and strong .
4. You must use an R/C radio system that is in good condition,
a correctly sized engine, and other components as specifi ed
in this instruction manual. All components must be correctly
installed so that the model operates correctly on the ground
and in the air. You must check the operation of the model and
all components before
every fl ight.
5. If you are not an experienced pilot or have not fl own this type
of model before, we recommend that you get the assistance
of an experienced pilot in your R/C club for your fi rst fl ights.
If you’re not a member of a club, your local hobby shop has
information about clubs in your area whose membership
includes experienced pilots.
6. While this kit has been fl ight tested to exceed normal use,
if the plane will be used for extremely high stress fl ying, such
as racing, or if an engine larger than one in the recommended
range is used, the modeler is responsible for taking steps to
reinforce the high stress points and/or substituting hardware
more suitable for the increased stress.
7. WARNING: The fuselage and tail cone adapter included in
this kit are made of fi berglass, the fi bers of which may cause
eye, skin and respiratory tract irritation. Never blow into a
part to remove fi berglass dust, as the dust will blow back into
your eyes. Always wear safety goggles, a particle mask and
rubber gloves when grinding, drilling and sanding fi berglass
parts. Vacuum the parts and the work area thoroughly after
working with fi berglass parts.
We, as the kit manufacturer, provide you with a top quality,
thoroughly tested kit and instructions, but ultimately the
quality and fl yability of your fi nished model depends
on how you build it; therefore, we cannot in any way
guarantee the performance of your completed model,
and no representations are expressed or implied as to the
performance or safety of your completed model.
Remember: Take your time and follow the instructions to
end up with a well-built model that is straight and true.
DECISIONS YOU MUST MAKE
This is a partial list of items required to fi nish the F-16 that may
require planning or decision making before starting assembly.
Order numbers are provided in parentheses.
Battery and ESC
The F-16 was designed for and comes equipped with the:
❍ Great Planes
ElectriFly HyperFlow 56mm ducted fan
system (GPMG3910)
and the
❍ Great Planes
ElectriFly 24-45-3790kV Ammo inrunner
brushless motor (GPMG5185).
These components drop right in with no modifi cation.
The recommended battery is the:
❍ Great Planes
ElectriFly 14.8V (4S) 2200mAh 25C
LiPo (GPMP0521).
Under “normal” fl ying conditions (mostly full throttle), this
provides average fl ight times of approximately 4 minutes
with approximately one more minute of motor run time for
additional landing attempts.
❍ The Great Planes
ElectriFly SS-35 35 Amp brushless
ESC (GPMM1830) is also recommended.

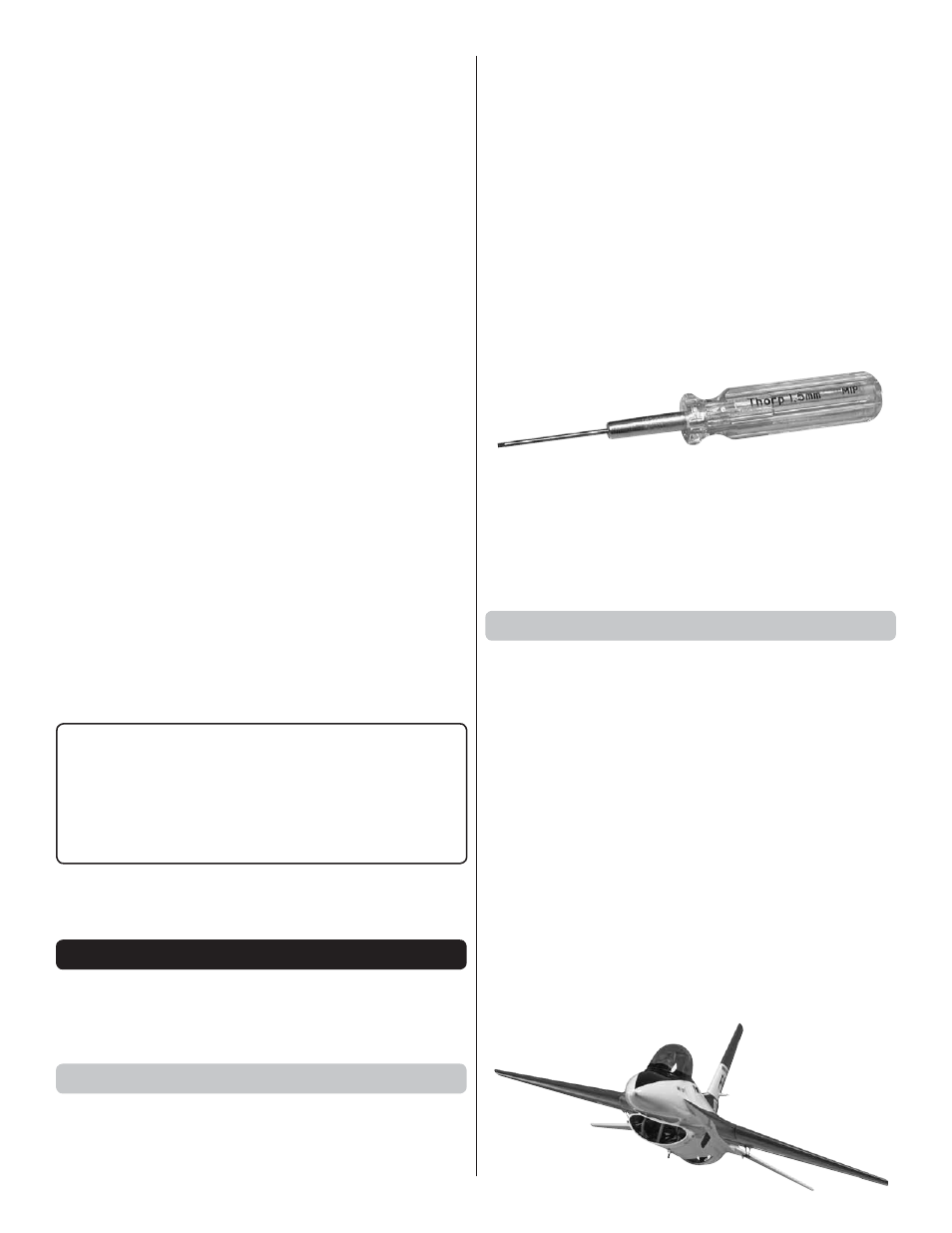

Note: A precision 1.5mm Allen wrench will be required for
tightening the set screws in the brass fan adapter. Do not
attempt to use an economy wrench. You may strip out the
wrench or set screws, making it impossible to securely tighten
or remove them for replacement. The 1.5mm MIP Thorp Hex
Driver (MIPR9007) is recommended.
Servos, Receiver
A small receiver and four micro servos in the 20 oz-in torque
range are required. Two 6" [152mm] servo extensions are also
required. Part numbers are provided below:
Suitable servo choices (in order of preference) for Futaba ®
servos include:
❍ S3107 (standard micro – FUTM0025)
(shown in manual)
❍ S3156 (digital, metal gear, high-torque) (FUTM0656)
❍ S3153MG (digital, metal gear – FUTM0652)
❍ S3153 (digital – FUTM0653)
❍ S3117 (high-torque – FUTM0417)
❍ Hobbico
® 6" Extension Futaba J (HCAM2000)
If you install a 4-channel receiver, a Y-harness is needed to
join the aileron servos together (FUTM4130). The aileron
servos can also be mixed together using a computerized
transmitter and 5+ channel receiver such as the Futaba
R617FS 7-Channel 2.4GHz FASST
™ Receiver (FUTL7627).
