12

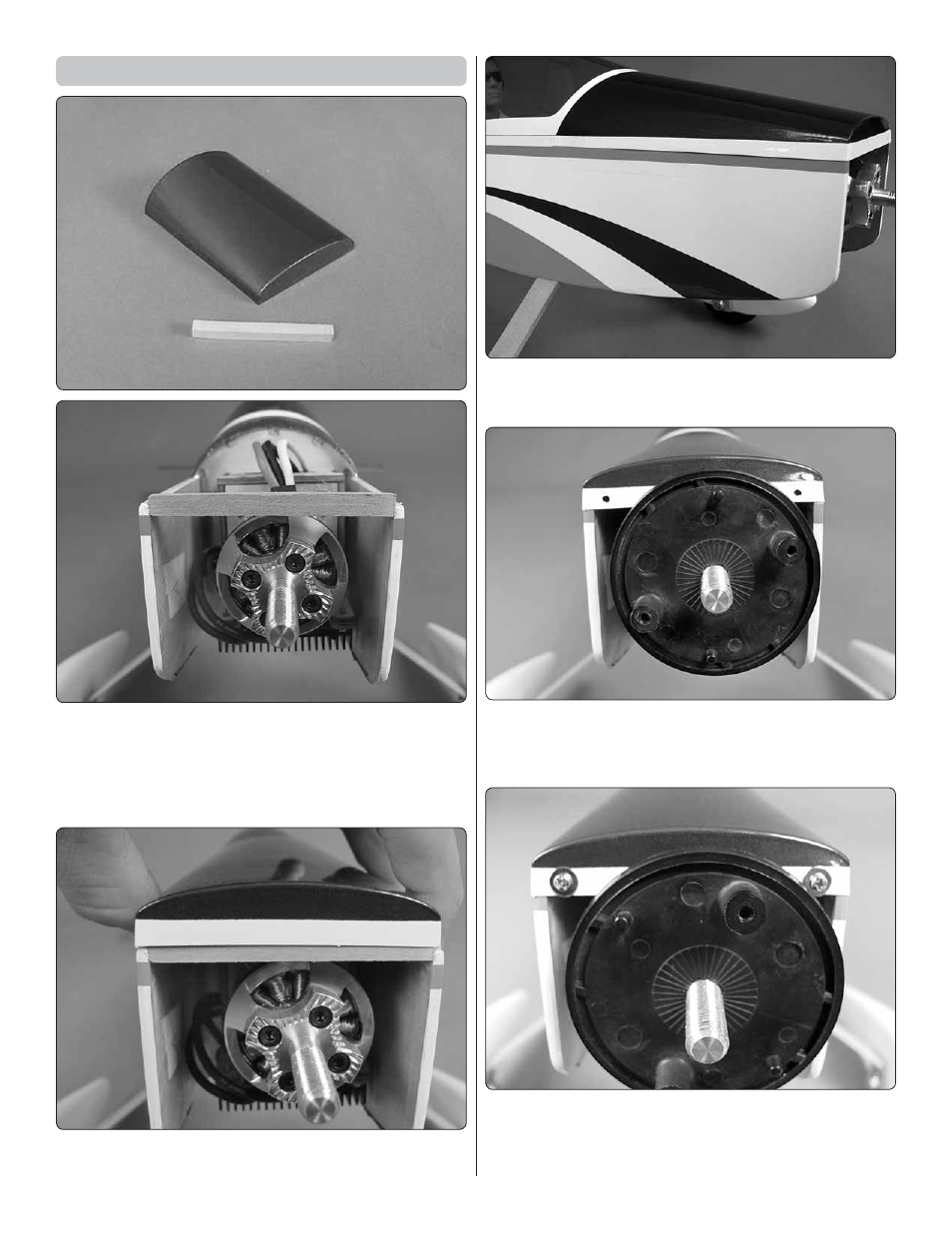

Install the Motor Cover and Spinner
❏
1. Place the included balsa stick on the nose of the Escapade
MX as shown. Test fi t the brushless cover so that it lines up
with the trim on the aircraft. It may be necessary to remove the
balsa stick and trim the length so that the brushless cover’s
width fi ts properly with the aircraft’s nose.
❏
2. Once you’ve achieved a good fi t, use CA to secure the
stick in the position on the nose.
❏
3. Next use clear tape to secure the brushless cover’s sides
to the fuselage sides.
❏
4. Use a felt tipped marker to mark the locations for the
brushless cover’s securing screws which will go through the
brushless cover and into the plywood stick.
❏
5. Using a 1/16 drill bit, drill the two holes. Remember to
tap the two holes and use thin CA to harden the plywood.
Install the two #2 x 3/16" self-tapping screws along with the
#4 washers.
