Great Planes Easy Sport 40 ARF MonoKote - GPMA1036 User Manual

Page 11

❏

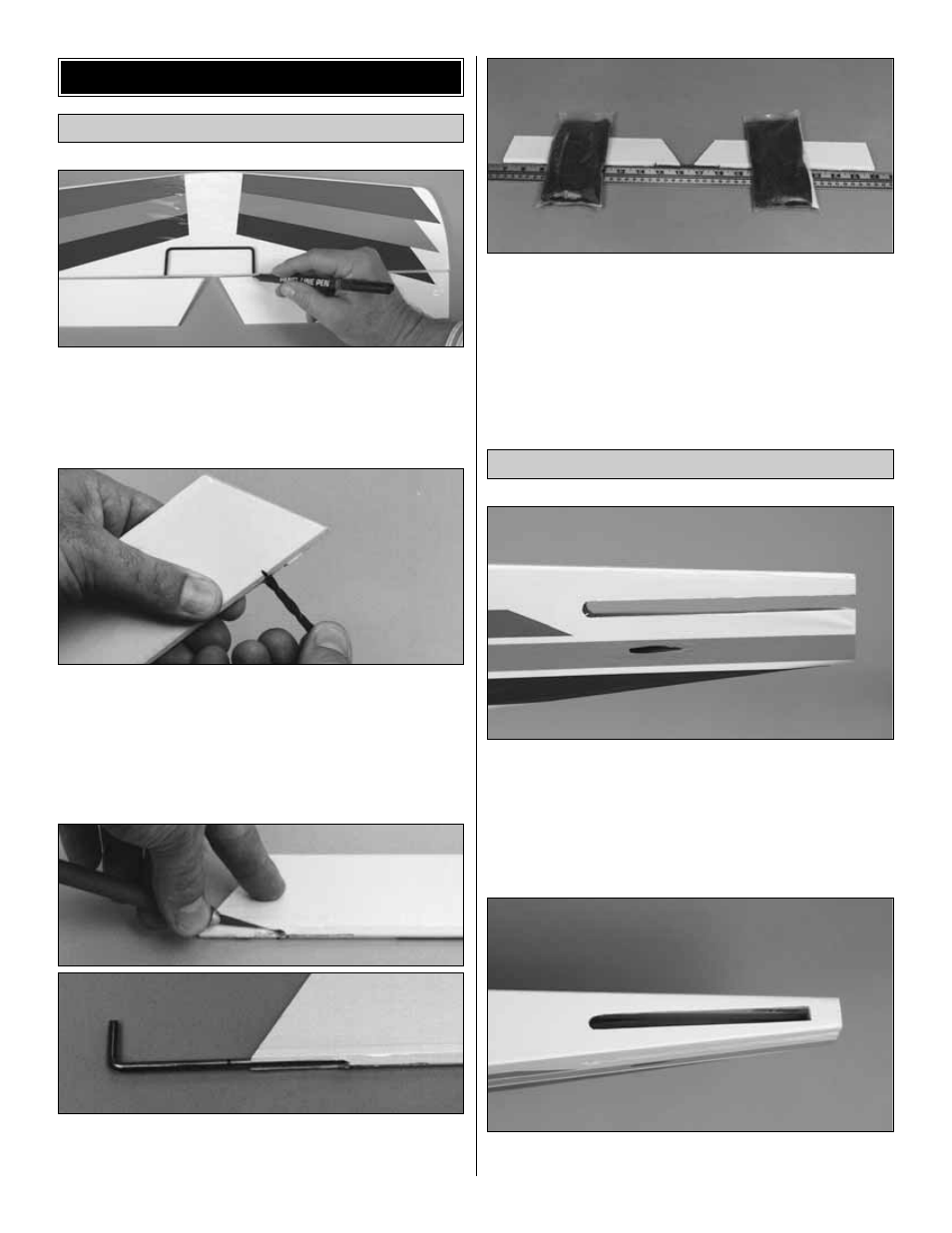

1. Without glue, position the elevator halves on the

stabilizer. Measure and mark a centerline onto the
elevator joiner wire. Center the joiner between the two
elevator halves. Mark the position where the joiner will
enter the elevator halves.

❏

2. Remove the elevator halves from the horizontal

stabilizer and drill straight into the leading edge of the
stabilizer using a 1/8" [3.2mm] drill bit at the marks. Drill
into the elevators 1-1/4" [32mm] to allow for complete
insertion of the elevator joiner. This step is done best using
either a pin vise or twisting the drill bit into the wood with
your fingers.

❏

3. Carefully cut grooves into the leading edges of the

elevator halves to allow the joiner to recess into the
leading edge.

❏

4. Use a straightedge to align the elevator halves on a

flat surface. Using 6-minute epoxy, glue the joiner wire into
position. Make sure the joiner wire is fully seated in the
elevator halves before the epoxy cures. Use weights to
keep the elevator halves from moving.

❏

1. Locate the horizontal stabilizer slot under the covering

on the tail section of the fuselage by lightly pressing with
your finger. The slot is located on both sides of the
fuselage. Carefully remove the covering, exposing the slots
with a hobby knife.

Note: Do not cut into the wood around the slot.

❏

2. Locate the slot for the vertical fin on the top of the

fuselage and remove the covering.

Align & Install the Stabilizer

Join the Elevator Halves

INSTALL THE TAIL COMPONENTS
