Graph Tech Ghost - Manual (Page 23)

23

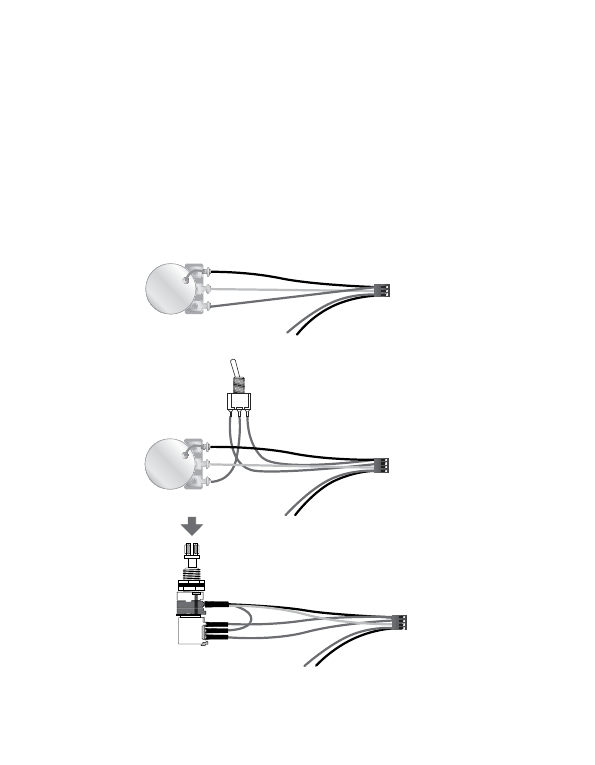

If you have room to add another pot to your guitar, you can drill
a hole and add a pot for the acoustic volume. You can purchase
a 250K or 500K audio-taper potentiometer*, or you can get
the ghost® Acoustic Volume with Mid/Dark Switch from Graph
Tech either as a push-on/push-off pot or as a toggle switch.
Drill a Hole and Add a Pot
You supply
the pot
Order acoustic
volume pot
with mid/dark
switch...
Harness supplied
with Acousti-phonic
Order harness with
mid/dark toggle
switch
...complete
with harness
You supply
the pot
mid/dark
250k or 500k
audio taper
Bk
Bk
Y
Vi Gn
Gn
Y
Vi
Gn
Mags
Mags
Vi
R Y
Bk
Bu
R
Mags
Bu
dark mid
Bk
Bk
Bk
