Grant Instruments RC - Manual (Page 5)

Recirculating Chiller
Part No 09931/Issue 8 Page 5 August 2001
2 Installation
Remove packing materials carefully, and keep for future shipment or storage of the unit.
Packs
contain:
Recirculating chiller: RC350G, RC400G, RC1400G, RC3000G
Mains cable
Operating instructions
Optional remote probe
PRES Reservoir accessary pack:
PRES Reservoir
2 x Clips
2 x 3/8” to 1/2” adaptor
4 x M4 CSK screws
Mounting instruction drawing
Optional Remote Probe

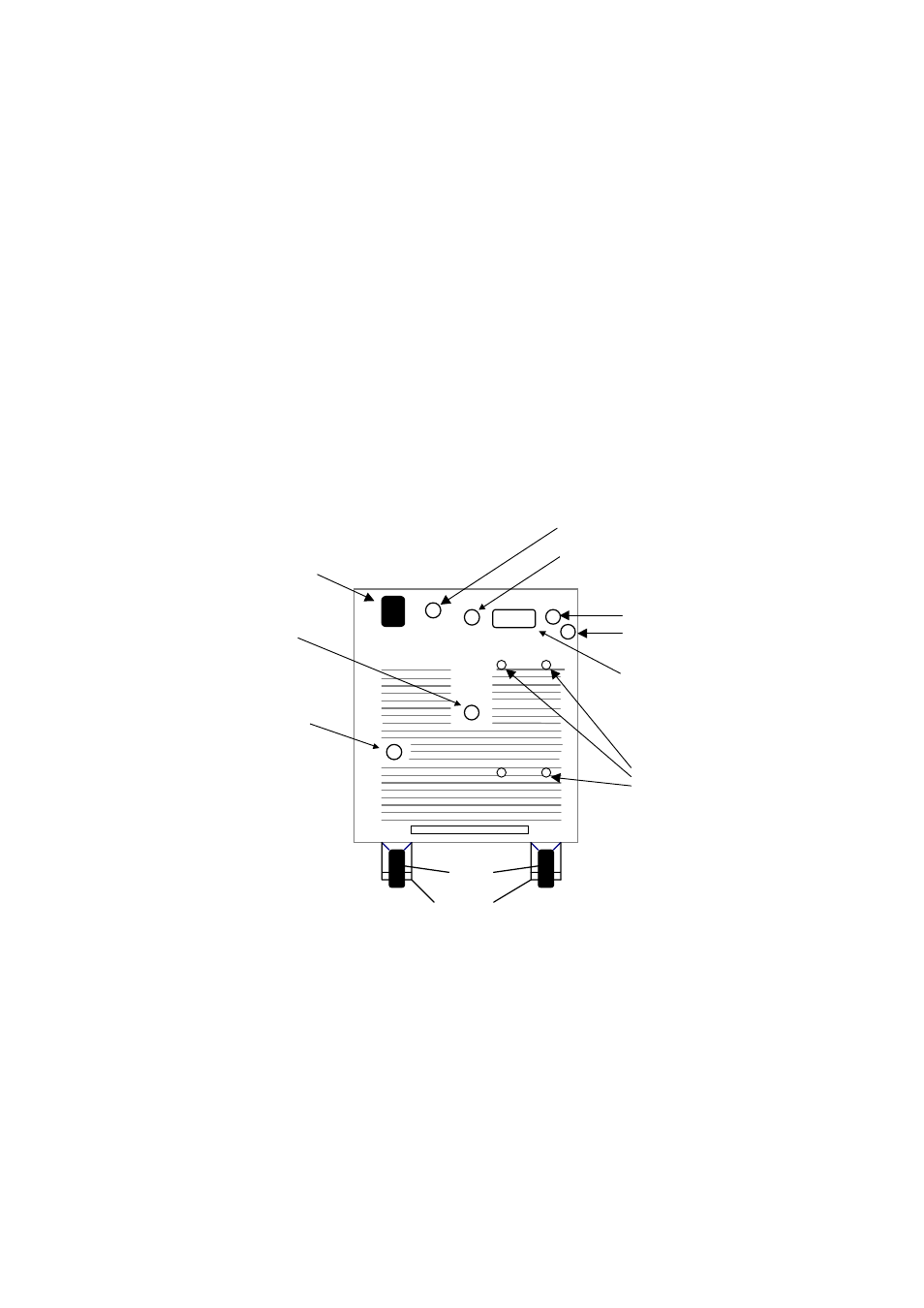

Rear view: RC350G/400G/1400G chiller
Wheels
Serial number label
Remote alarm socket
Brakes
Brakes on front wheels .
Push down to lock .
Drain pipe
Outlet pipe 3/8" BSP male
thread
Inlet pipe 3/8" BSP
male thread
incorporates in line
filter
P ower supply voltage connector RC350G/400G
IEC connector 3 pole fused 10A 250v.
Pull open the fuse drawer to change a fuse.
RC1400G has 2 separate fuses rated 15A 250V
.
Remote probe
PRES
fixings
O/temp cutout reset
Figure 1
