Center instrument panel fuse block, Center, Instrument panel fuse block – GMC 2006 Sierra User Manual
Page 538: Center instrument panel fuse block -126
Fuses
Usage
BODY
Harness Connector
DDM
Driver Door Module
AUX PWR 2, M/GATE
Not Used
LCKS
Power Door Lock System
ECC, TPM
Tire Pressure Monitoring
System
TBC 2C
Truck Body Controller
HAZRD
Flasher Module
CB LT DRS
Left Power Windows
Circuit Breaker
TBC 2B
Truck Body Controller
TBC 2A
Truck Body Controller

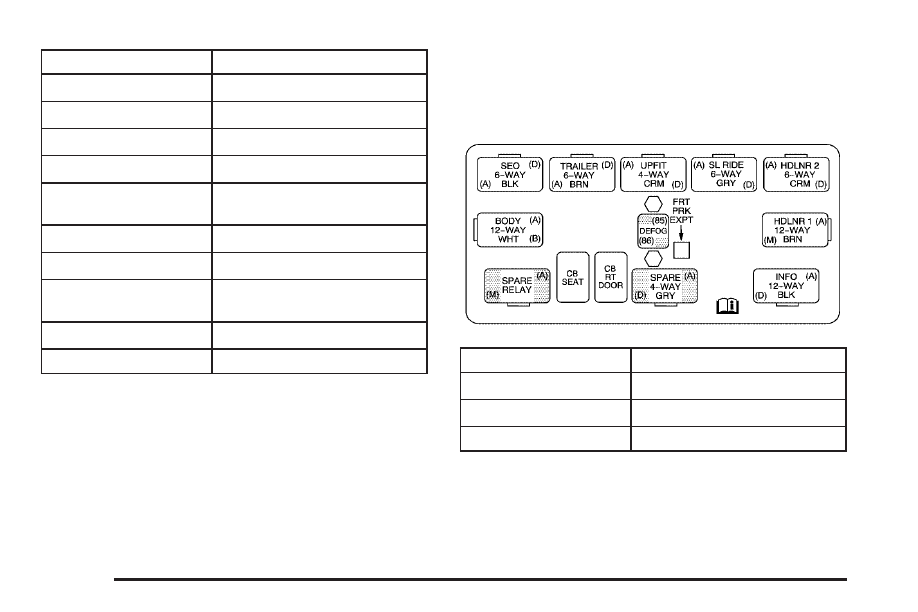

Center Instrument Panel Fuse Block
The center instrument panel utility block is located
underneath the instrument panel, to the left of the
steering column.
Device
Usage
SEO
Special Equipment Option
TRAILER
Trailer Brake Wiring
UPFIT
Upfitter (Not Used)
5-126
