For regular cab models, the
equipment you will need is
behind the passenger seat.
For extended and crew cab
models, the equipment is on the
shelf behind the passenger side
second row seat.
1. Turn the knob on the jack
counterclockwise to lower the
jack head to release the jack
from its holder.
2. Remove the wheel blocks
and the wheel block retainer
by turning the wing nut
counterclockwise.
3. Remove the wing nut used to
retain the storage bag and tools
by turning it counterclockwise.
You will use the jack handle
extensions and the wheel wrench
to remove the underbody-mounted
spare tire.

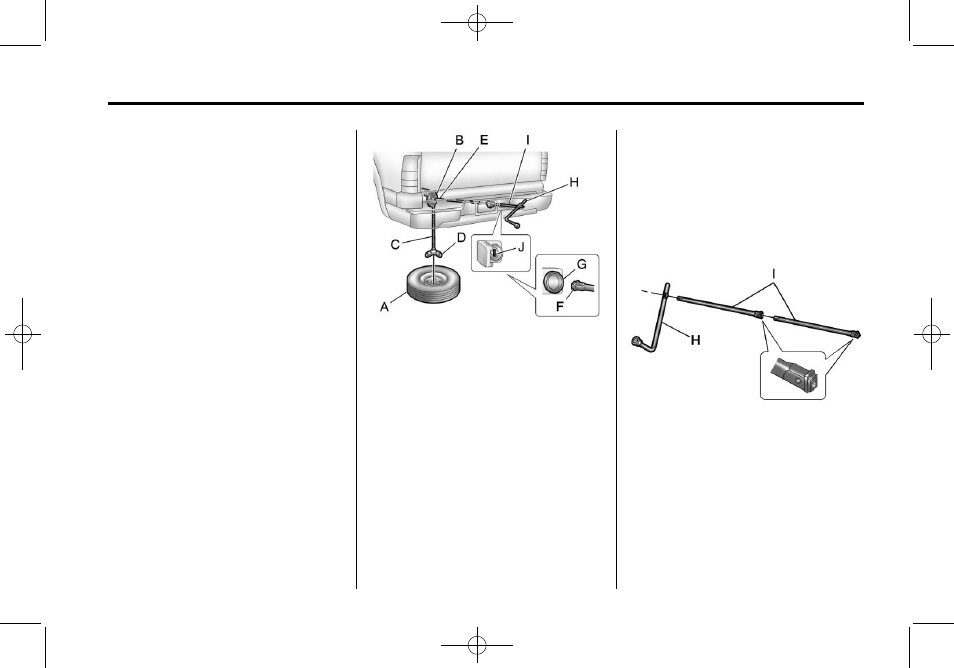

A. Spare Tire (Valve Stem
Pointed Down)
B. Hoist Assembly
C. Hoist Cable
D. Tire/Wheel Retainer
E. Hoist Shaft
F. Hoist End of Extension Tool
G. Hoist Shaft Access Hole
H. Wheel Wrench
I. Jack Handle Extensions
J. Spare Tire Lock (If equipped)
1. Open the spare tire lock cover
on the bumper and use the
ignition key to remove the spare
tire lock (J). To remove the spare
tire lock, insert the ignition key
turn and pull straight out.
2. Assemble the wheel wrench (H)
and the two jack handle
extensions (I) as shown.
