Futaba GY701 Quick Start User Manual
Page 10
M
ENU
S
TRUCTURE
10
WARNING
The servo type parameter must match the
type of servo you are using. Incorrect setting
may damage the GY701 or the servo, possibly
resulting in a loss of control during flight.
Turn the receiver and transmitter power off for now.
T
AIL
R
OTOR
S
ERVO
I
NSTALLATION
❑ Install the tail rotor servo into the mechanics
and connect the servo to the gyro. Remove the
servo arm screw from the servo. Turn the receiver
power on and allow the gyro to initialize. Enter the
“Gyro Basic Setting” mode and go to parameter
(4) “Servo Limit Point Setting”. While in the
servo limit setting the servo will remain centered.
90°

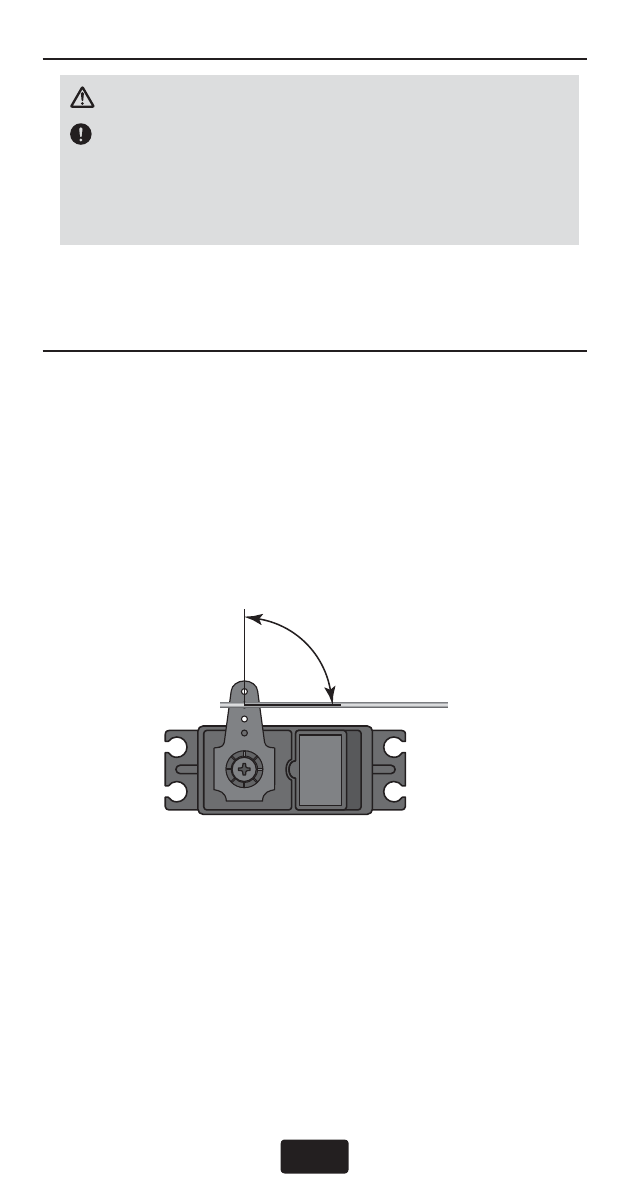

❑ Place an appropriate servo arm onto the servo
and ensure that it is perpendicular to the tail rotor
pushrod as shown. Remove the unused sides of
the servo arm.
❑ Install the control ball supplied with your
helicopter onto the servo arm. For larger electric
models or nitro powered models we recommend
placing the ball 13.25mm from center. Once the
control ball has been installed, place the arm back
