Futaba GY502 User Manual
Page 20

20
D
ATA
S
ETTING

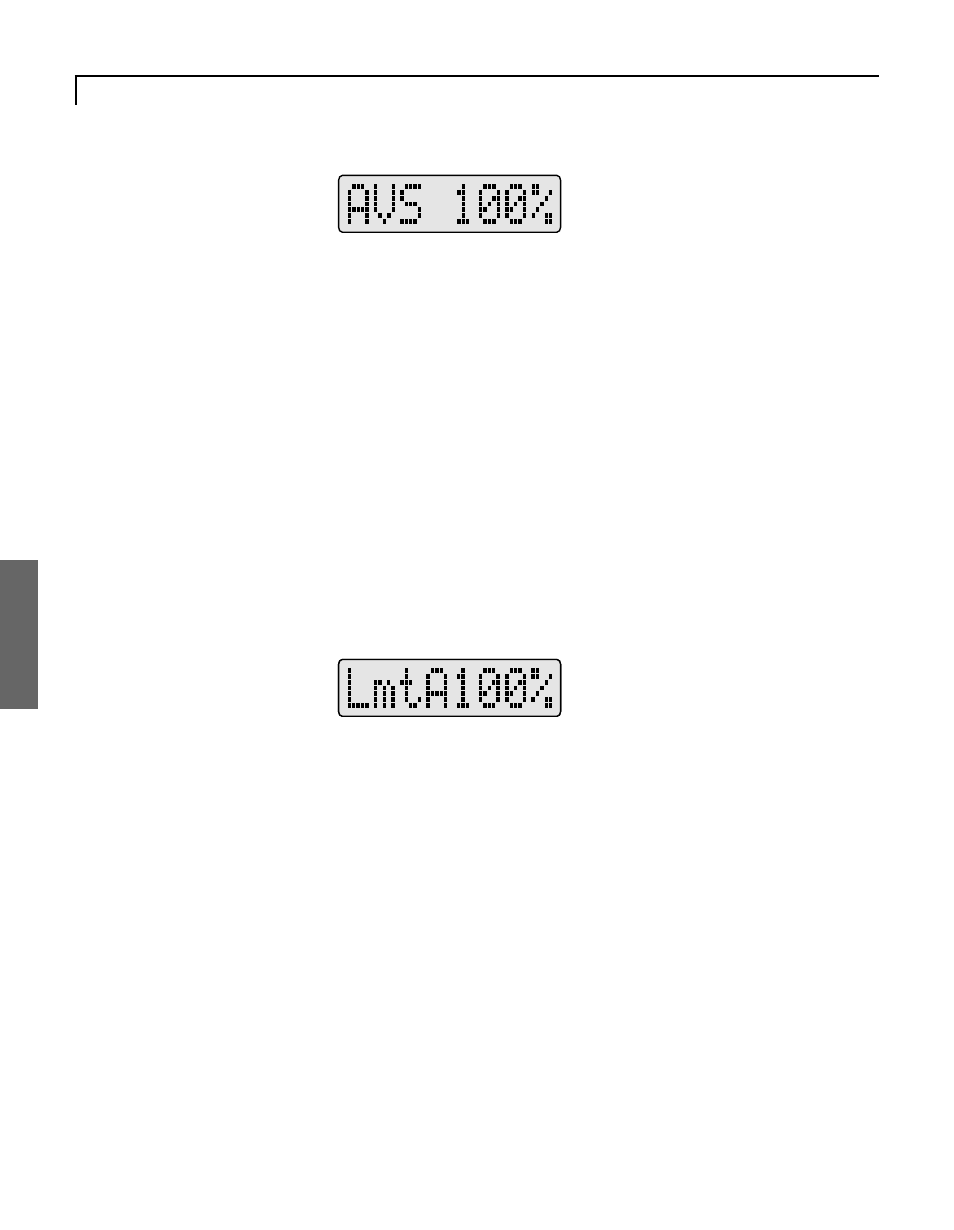

AVCS Sense
Initial value : 100%
Adjusts the rudder control characteristic in the AVCS mode. Setting
range is 50 to 150%.
Adjust by checking the rudder operation feel and stopping character-
istic.
Linkage Limit Setting
Initial value : 100%
Sets the rudder servo travel limit.
Operate the rudder stick and adjust the rudder servo travel limit by
pressing the +/- key so that the servo moves to the maximum linkage
position. Use the same procedure to set both the left and right limits .
When setting, move the servo substantially so that the rudder angle
automatically becomes 200% and limit setting is easy. A or B is
displayed for the right and left directions.
Note: When this screen is displayed, the GY502 does not operate as
a gyro. To check operation, return to the initial screen, etc.
