ADJUSTABLE FUNCTION RATE
AFR is a servo endpoint limiting function, similar to A TV with one exception:
AFR limits only the Dual Rate OFF (High-Rate) servo travel. Trim throw/and Dual Rate
ON (Low Rate) limits are unaffected (unless AFR is reduced below the D/R ON limit).
Setting Method
1) The setting method for AFR is the same as for ATV (See page 16).
2) Select the EDIT screen and press the AFR program key.

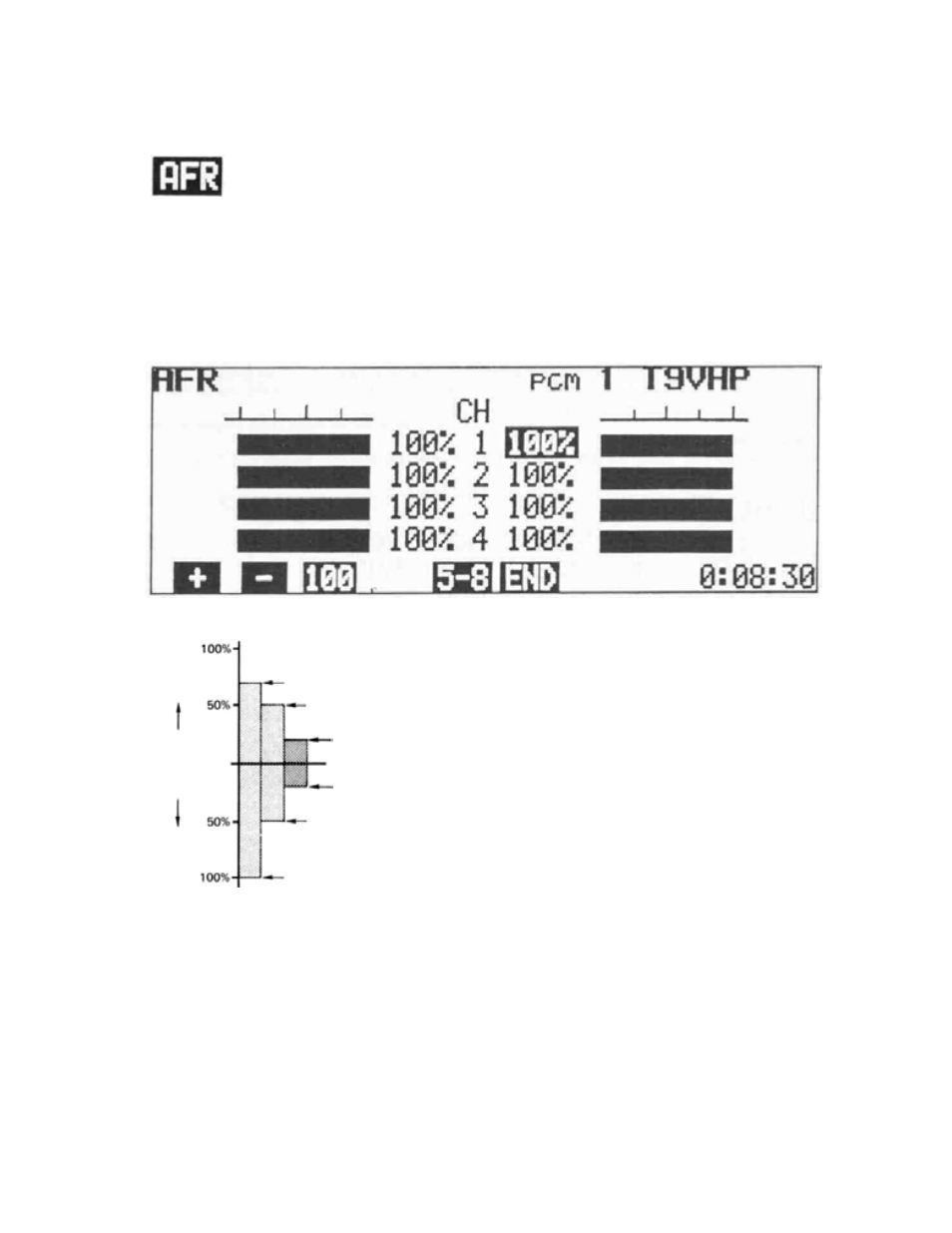

In the bar graph illustration below, the right
hand throw is reduced to 70% of normal throw
by AFR. Note that the Dual Rate ON (Low
Rate) limit and Trim throw limits remain the
same on both sides (Compare with the ATV
illustration on page 16).
RIGHT
NEUTRAL
LEFT
AFR Limit = 70%
D/R Limit = 50% of Full
Throw
TRIM Limit
TRIM Limit
D/R Limit = 50%
Normal (Full) Throw = 100%
NOTE: Trim Limits and D/R Limits same in both directions.
