10
B
EFORE
U
SE
1 :Aileron (CH1)
2 :Elevator (CH2)
3 :Throttle (CH3)
4 :Rudder (CH4)
5 :Landing gear (CH5)
6 :Flap (CH6)
REV :Reverse side
NOR :Normal side

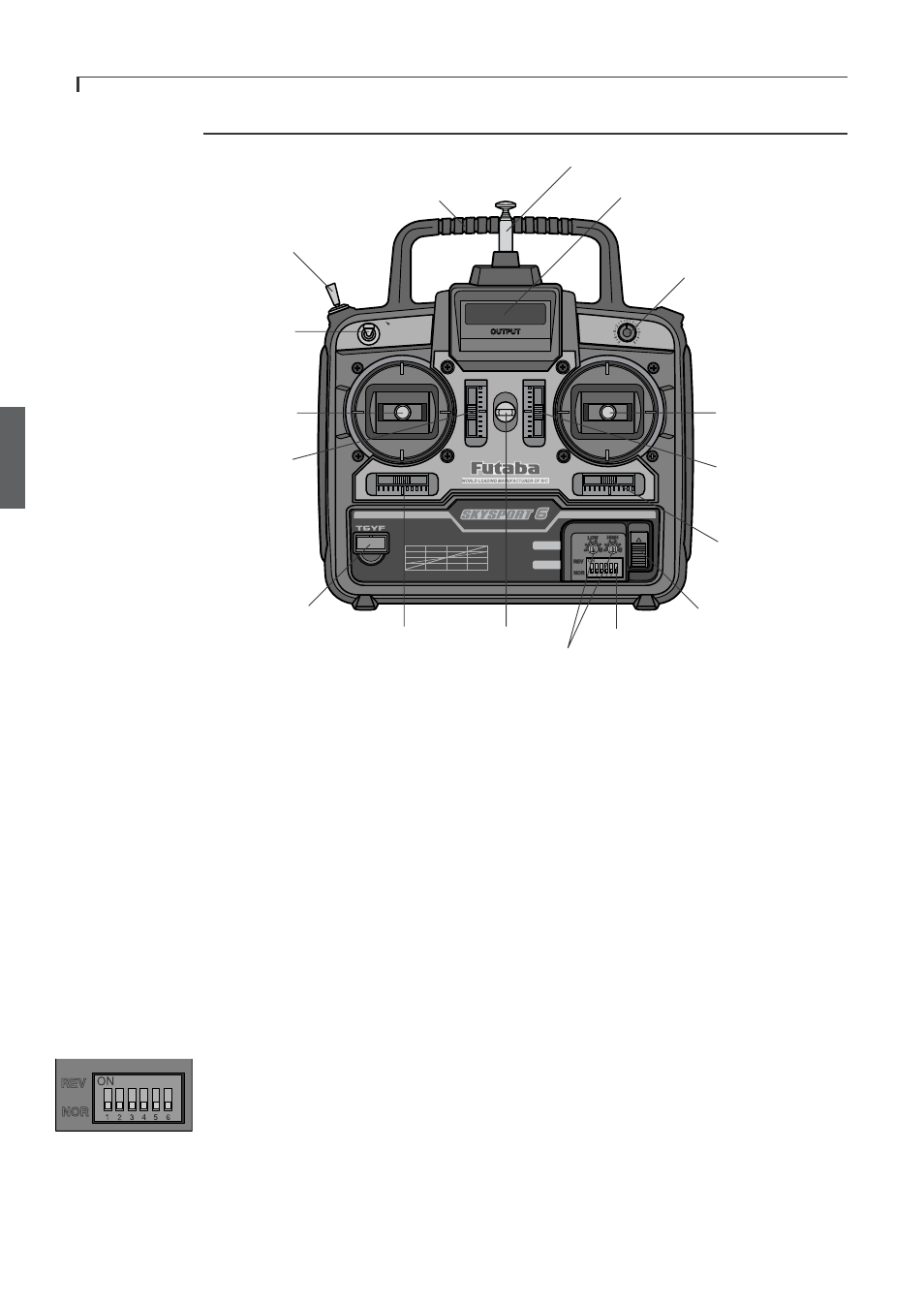

Name and Handling of Each Part
Transmitter T6YF (Front Panel)
ON
DIGITAL PROPORTIONAL R/C SYSTEM
HIGH
LOW
THROTTLE CONTROL
SERVO FUNCTION
POWER
THROTTLE
ATV
SERVO
REVERSER
NARROW BAND TECHNOLOGY FUTABA FLIGHT COMFORT
CH.6 FLAP
GEAR CH.5
TRAINER
Trainer switch
Voltage indicator
Antenna
Carrying handle
Elevator trim
lever(Mode 1)
Throttle trim
lever(Mode 2)
Elevator(Mode 1)
Throttle(Mode 2)
/Rudder stick
Throttle trim lever
(Mode 1)
Elevator trim lever
(Mode 2)
Throttle(Mode 1)
Elevator(Mode 2)
/Aileron stick
Aileron trim lever
Power switch
Neck strap
hook
Rudder trim
lever
Servo reversing switches
Power switch: Turns the trnsmitter on or off. In the upper position, the power is turned
on.
Voltage indicator: This is an expanded scale voltmeter. It is not calibrated in volts.
When the needle deflects to the boundary between the silver and red zones, recharge or
replace the battery. Do not operate the transmitter if the needle falls down to the red area.
Antenna: Never operate the transmitter without extending this antenna or you may create
interference to other modelers. This antenna is not intended to be removable.
Aileron, Elevator, Throttle and Rudder stick: Control each function. See page 14 for a
transmitter operation instruction.
Aileron, Elevator, Throttle and Rudder trim: Used to shift the neutral or idle position
of the each servo. As the throttle stick is moved forward towards the high throttle posi-
tion, the throttle trim will have less effect.
Carrying handle: Provides an easy means of transporting the transmitter.
Neck strap hook: Clip the neck strap only to this hook when neck strap use is required.
Servo reversing switches: Switches that reverse the direction of operation of the servos.
The lower position is the normal side and the upper position is the reverse side.
Landing gear switch
Flap knob
Throttle ATV trimmers
Crystal
