Futaba 6J 2.4GHz User Manual
Page 8
8
Liquid Crystal Display: Commonly referred to as LCD, this is the screen of the transmitter that displays the
programming modes, values entered, etc.
MODE key: Used to scroll through and display the different functions.
SELECT key: Used to display the values for the current function.
Throttle cut button: This button activates the throttle cut function and is used to fully close the carburetor
and shut off the engine.
Throttle/Rudder control stick: Operates the servos connected to channel 3 (throttle) and channel 4 (rudder)
in the receiver. (Mode 2)
Trainer switch: Operates the trainer functions. To operate as a trainer switch, the transmitter must be
connected to another transmitter via a trainer cord (sold separately). See page
??
for more information on
this feature.
H: Idle Up switch: 7KLV VZLWFK RSHUDWHV WR FKDQJH WKH ÀLJKW FRQGLWLRQ ZKLFK VHWV WKH WKURWWOH FXUYH DQG SLWFK
FXUYH IRU PLGDLU PDQHXYHUV UROOV ORRSV VWDOO WXUQV DQG ' ÀLJKW
A: Retractable landing gear switch/channel 5: This switch operates the servo connected to channel 5 in the
receiver. If your model has retractable landing gear, this is the control used to extend and retract the gear.
H: Gyro switch/channel 5:
&KDQJLQJ WKH WKURWWOH VWLFN UDWFKHW V\VWHP IRU KHOLFRSWHU ÀLJKW

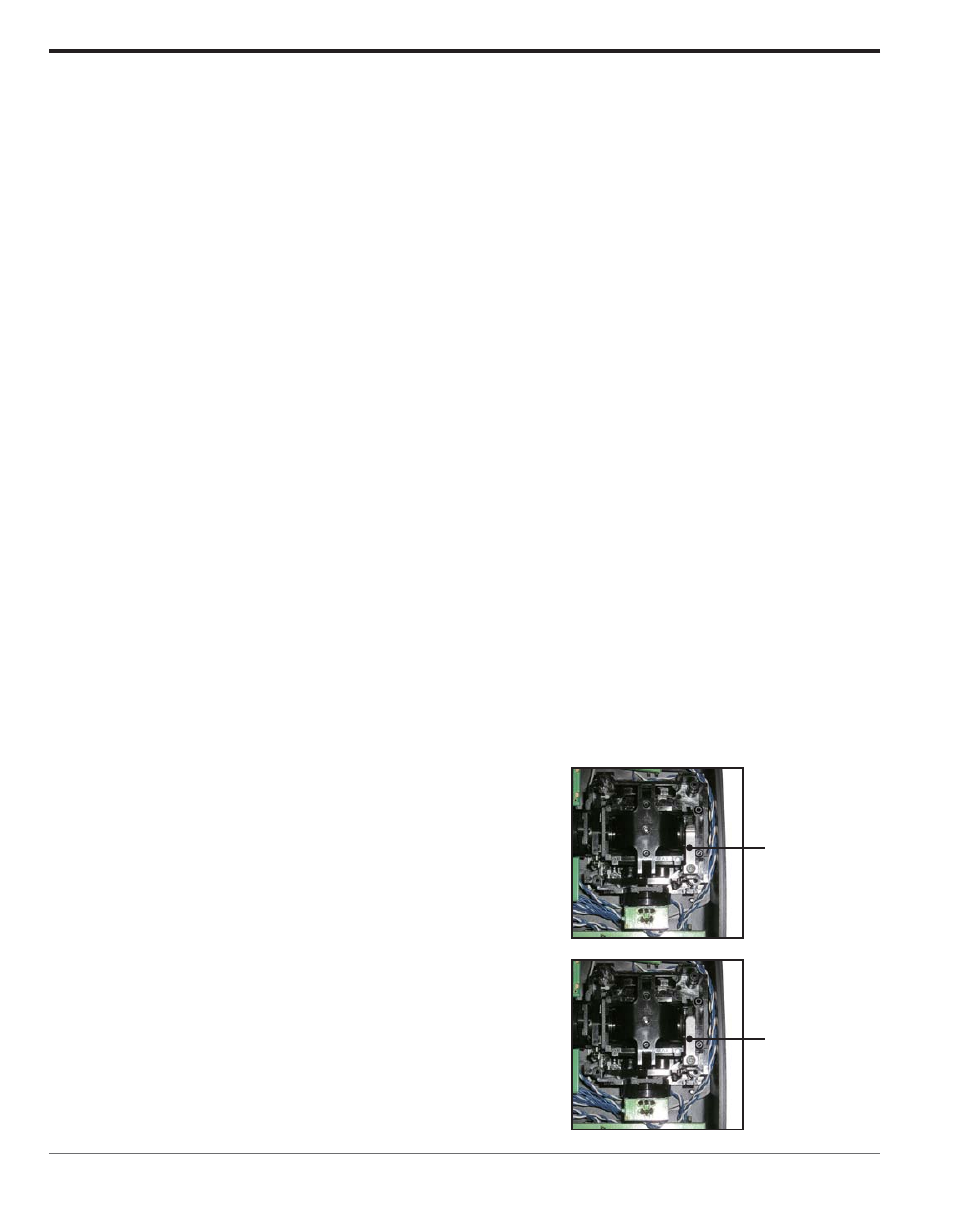

Ratchet plate
for airplane
Ratchet plate
for helicopter
Generally speaking, helicopter pilots prefer a smooth operation of
the throttle stick rather than the ratcheting operation commonly
used by fixed wing pilots. The procedure below will allow
modelers to change from this ratcheting operation to the smoother
throttle stick operation.
1) Open the battery cover on the back of the transmitter and remove
the transmitter battery, or batteries.
2) Unplug the battery connection on the left side of the battery
case.
3) Remove the four transmitter rear case screws and remove the
rear case.
4) Change the ratchet plate on the gimbal section to the smooth
ratchet plate for helicopter use.
