LOSONE SELECT ® L100 SERIES • L150 SERIES
L200 SERIES • L250 SERIES • L300 SERIES
;; yy ;;;; yyyy
12¼"
9 1 / 2 "
to
10 1 / 2 "
;;; yyy ;;;; yyyy
12¼"
1½"
to
2½"
;;;; yyyy
;;;
;;;
@@@
@@@
;;;
;;;
@@@
@@@
;;;
;;;
@@@
@@@
;;;
;;;
@@@
@@@
;;;
;;;
@@@
@@@
;;;
;;;
@@@
@@@
;;;
;;;
yyy
yyy ;;; @@@ ;;; @@@ ;;; @@@ ;;; @@@ ;;; @@@ ;;; @@@ ;;; yyy

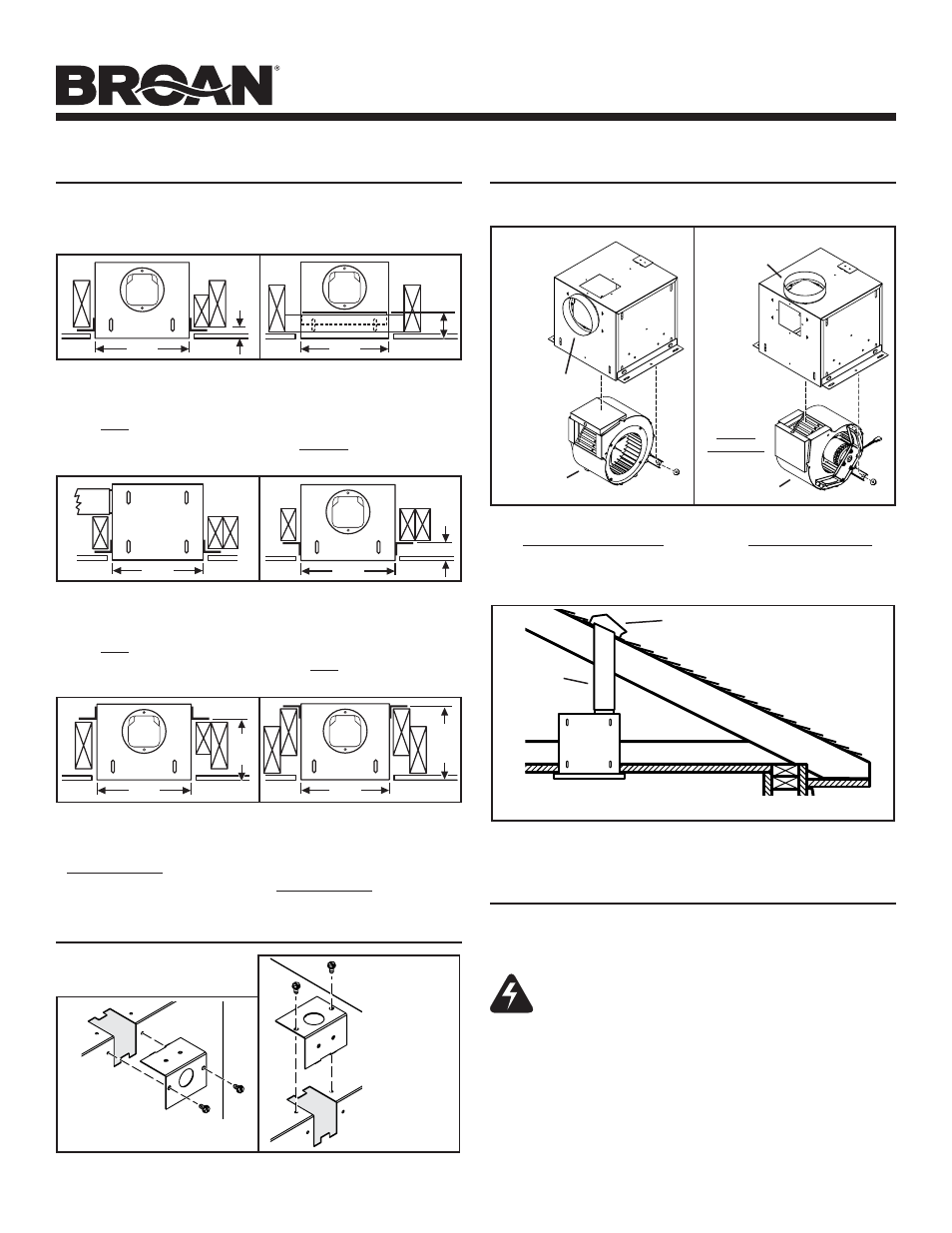

MOUNTING OPTIONS
WIRING OPTIONS
DUCTING OPTIONS
;; yy ;;;; yyyy
12¼"
1 1 / 8 "
MAX.
Mounting brackets in
factory-shipped position.
(Outlet parallel to joists.)
(New construction)
;;; yyy ;;;; yyyy
12¼"
10 3 / 4 "
to
11 3 / 4 "
;;;; yyyy
;;; yyy ;;; yyy
12¼"
¼-20 hex nuts secure mounting brackets to housing. Loosen and
re-tighten or remove and replace nuts as necessary for desired
mounting bracket position.
Mounting brackets flipped
over and mounted to outlet
sides of housing.
(Outlet parallel to joists.)
(Existing construction)
Mounting brackets mounted
to outlet sides of housing.
(Outlet perpendicular to joists.)
(New construction)
Mounting brackets flipped
over and mounted to top of
sides of housing.
(Outlet parallel to joists.)
(New or existing construction)
;; yy ;;;; yyyy
12¼"
1 1 / 2 "
to
2 1 / 2 "
Mounting brackets flipped
over to give approx. 1”
more clearance.
(Outlet parallel to joists.)
(New construction)
Mounting brackets mounted
to top of sides of housing.
(Outlet parallel to joists.)
(New or existing construction)
BLOWER DISCHARGE POSITIONS
WIRING PLATE
POSITION
Wiring plate mounts to side or top of housing.
HORIZONTAL POWER
CABLE CONNECTION
VERTICAL
POWER
CABLE
CONNECTION
Blower and duct connector
in horizontal discharge
position. (Factory shipped)
DUCT
CONNECTOR
DUCT
CONNECTOR
Blower and duct connector
in vertical discharge
position.
BLOWER
BLOWER
Change
blower &
duct
connector
positions for
vertical
discharge.
DUCTING (Vertical blower discharge)
Typical ductwork connection to a ventilator converted to
vertical discharge.
ROOF CAP
ROUND
DUCT*
WARNING: To reduce the risk of electric shock,
disconnect from power supply before servicing.
To clean grille: Use appropriate vacuum attachment or remove
grille and clean with a soft cloth and mild soap or detergent. Dry
grille thoroughly before reinstalling.
To clean blower assembly: Remove grille, unplug blower from
housing, remove blower mounting nuts, and carefully remove blower
from housing. Use appropriate vacuum attachment or a soft cloth
and mild soap or detergent to clean blower discharge area and
wheel. DO NOT ALLOW WATER TO ENTER MOTOR. Make sure
blower assembly is completely dry before reinstalling.
Motor is permanently lubricated. Do not oil or disassemble motor.
USE AND CARE
Ventilator is designed for continuous operation. If desired, it may be
controlled using an on/off switch or a solid-state, variable speed
control. Follow wiring instructions packed with control, and adhere
to all local and state codes, and the National Electrical Code.
* L100 & L150 Series uses 6” Round Duct.
L200, L250, & L300 Series uses 8” Round Duct.
