Vermont Casting 1640 - Manual (Page 28)

28
Intrepid 1640 Woodburning Stove
30000830
1
2 1
2
3
2
2
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
23
24
48
46
45
44
43
42
41
40
39
38
37
61
62
63
64
65
66
67
68
69
70
59
58
34 35
36
32
31
30
29
28
27
26
25
49
50
51
52
53
54
56
57
7
13
22
26
28
31
31
32
33
33
34
34
35
35
37
38
47
47
51
52
53
54
55
60
60
60
60
65
65
65
65
65
65
65
65
65
65
54
60
13
65
65 54
72
73
74
75
0830
CFM Specialty Home Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products
at any time, without notice.

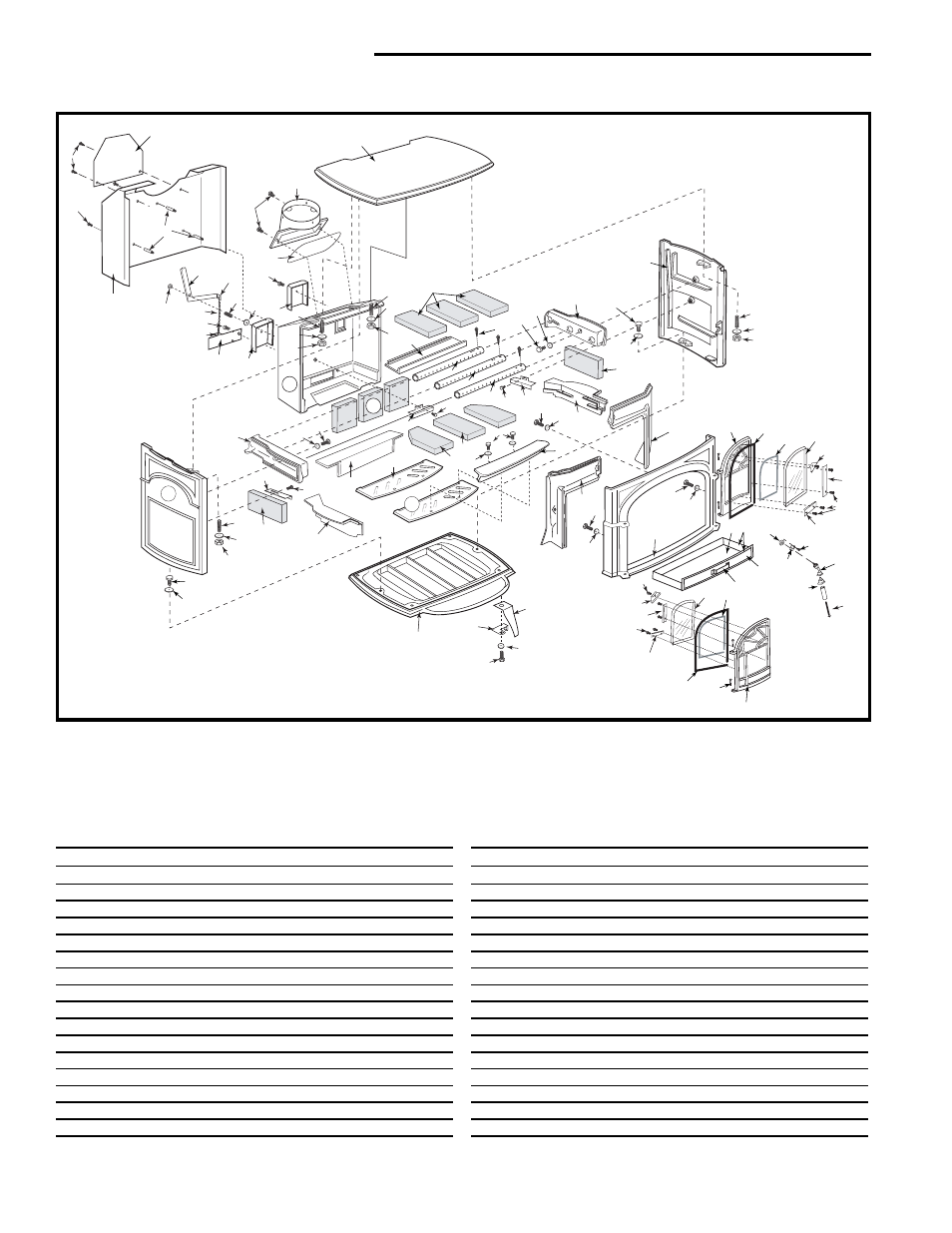

Intrepid NC Woodburning Stove
Model 1640
Item Description Part Number Item Description Part Number
1. Top See Chart Pg. 29
2. Hex Nut, 1/4-20 (5) 1203210
3. Right Side See Chart Pg. 29
4. Secondary Air Manifold, Right 30000819
5. Left Side See Chart Pg. 29
6. Secondary Air Manifold, Left 30000820
7. 1/4-20 x 2 1/4, CS Hex Hd Screw (2) 1201403
8. Secondary Air Tube, #A 30000825
9. Secondary Air Tube, #B 30000898
10. Secondary Air Tube, #C 30000805
11. #6-5/8 CS Socket Hd, SS Screw (3) 30000975
12. Bottom See Chart Pg. 29
13. 1/4-20x1” CS Hex Hd, Blk Screw (2) 1201376
14. Ashpan Assembly 30000966
15. Shelf, Bottom 30000823
16. Back 30000821
17. Smokeshelf 30000822
18. Leg (Single) See Chart Pg. 29
19. Leg Bolt, 3/8"-16x1" hex Bolt (4) 1201432
20. 3/8" Flat Washer (4) 1202488
21. Primary Air Manifold, Right 30000836
22. Primary Air Manifold, Left 30000837
23. Front Air Manifold, Right 30000838
24. Front Air Manifold, Left 30000839
25. 1/4-20x3/4” CS Hex Hd, Blk Screw 1201374
26. Secondary Air Cover (2) 30000869
27. 1/4-20 x 3/4”, Blk Flat Hd Phillips Screw 1200881
28. Grate, Ash (2) 30000856
29. Grate, Lip 30000807
30. Flue Collar See Chart Pg. 29
31. Firebrick, Sides and Back (5) 30000969
32. Firebrick, Upper (3) and Mid. Bottom (1) 1601103
