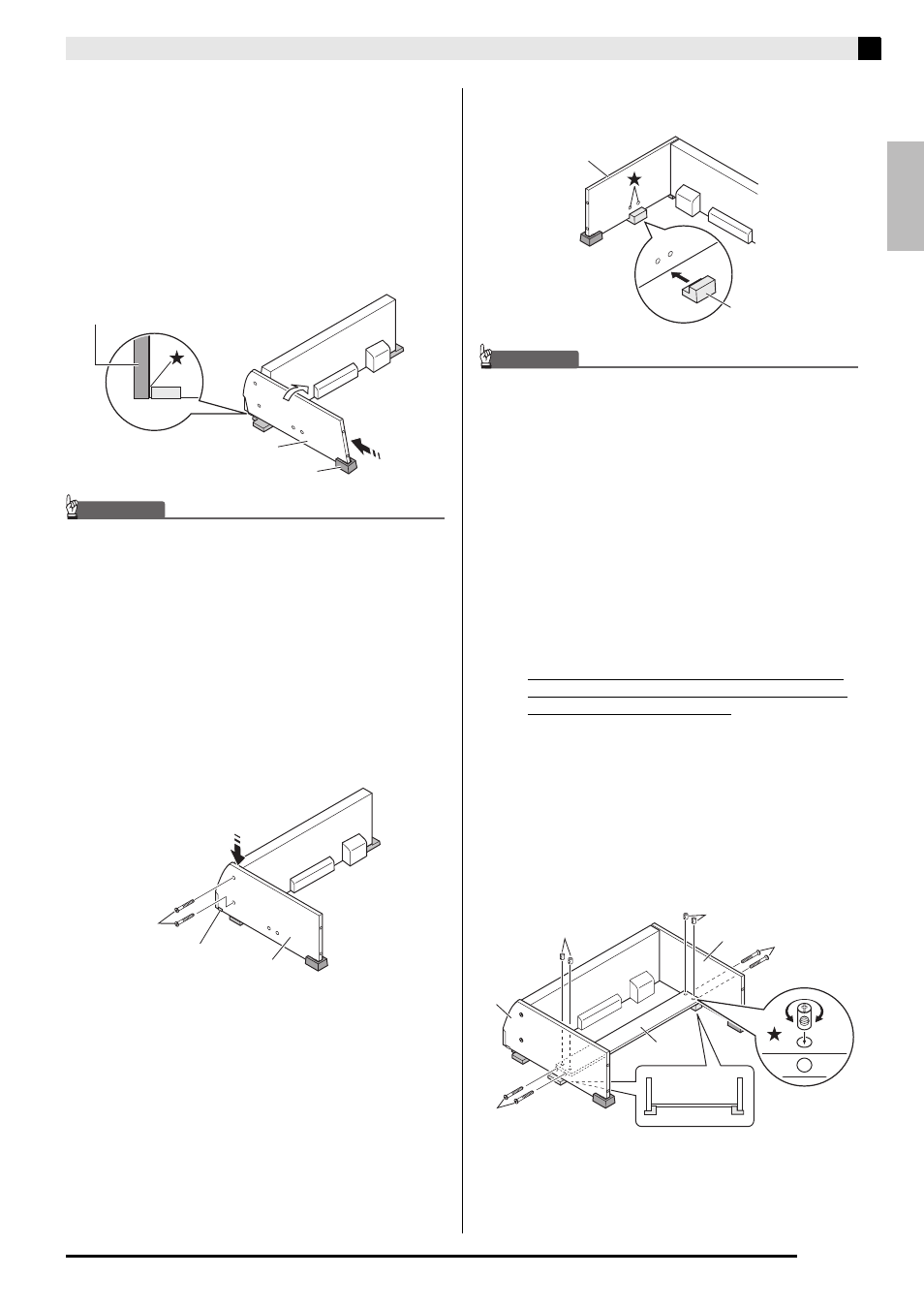

Assembling the Stand

E-29

3.

Keeping side panel

A

tilted at an angle, align

the side panel with side of the digital piano.

IMPORTANT!

• When performing step (3-1) above, make sure that

you position side panel A so its top edge reaches
the bottom of the digital piano top panel. If it does
not, you will not be able to stand side panel A
straight up in step (3-2).

4.

Perform the following steps to secure the side
panel to the digital piano.

5.

Insert foam piece

L

-(c)

under side panel

A

as shown in the illustration.

IMPORTANT!

• The foam piece should be located directly under the

two screw holes (

) in the side panel.

6.

Repeat steps 2 through 5 to attach side panel

B

to the other side of the digital piano.

7.

Attach back panel

C

to side panels

A

and

B

.

Use the four screws

D

and four joint

connectors

K

.

• Insert the four joint connectors at the four locations

on back panel

C

. The holes in the joint connectors

should be aligned with the holes in the back panel.

• Lift up back panel

C

so its screw holes align with the

screw holes in the side panels, and then tighten the
screws

D

.

• If you have trouble inserting the screws

D

into the

joint connector

K

holes, use a screwdriver to rotate

the joint connector ( in Figure).

*CAUTION

• Never try to force the screws! Forcing the screws D

to turn while the joint connector K holes are not
aligned correctly can strip the screw threads.

• Partially tighten the screws on one side of the Back

panel C and then fully tighten the screws on the
other side.

• Next, fully tighten the screws that you partially

tightened.

(3-1) Push side panel A in the direction indicated by

the black arrow in the illustration to align the side
panel so there is as little space as possible between
its top edge A and the bottom of the top panel of
the digital piano (

).

(3-2) After alignment is complete, stand side panel A

straight up so it is firmly against the side of the
digital piano.

(4-1) Press downwards on side panel A to ensure that it

is inserted as far as it will go into the bracket on
the side of the digital piano.

(4-2) Use the D screws to secure side panel A to the

digital piano.

(3-2)

(3-1)

L

-(b)

A

Top panel of the digital piano

(4-1)

(4-2)

A

D

Bracket

L

-(c)

A

B

A

D

K

C

K

D
